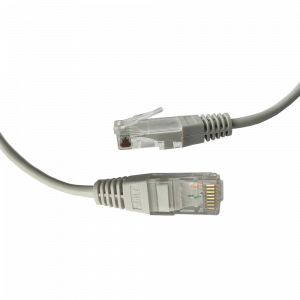

TWT UTP 2 pair cat. 5e patch-cord with molded boots
Two pair patch-cords with RJ-45 plugs are designed exclusively
for use in 10Base-T and 100Base-T Ethernet applications. The patch-cord design
uses a two pair category 5e cable terminated on 1/2 and 3/6 pins of RJ-45 plugs.
Please note that two pair patch-cords cannot be used
for switching phone lines due to the lack of pins 4/5.
Denser patch-cord bundles can be routed in cabinets
and organizers by using a smaller diameter cable.

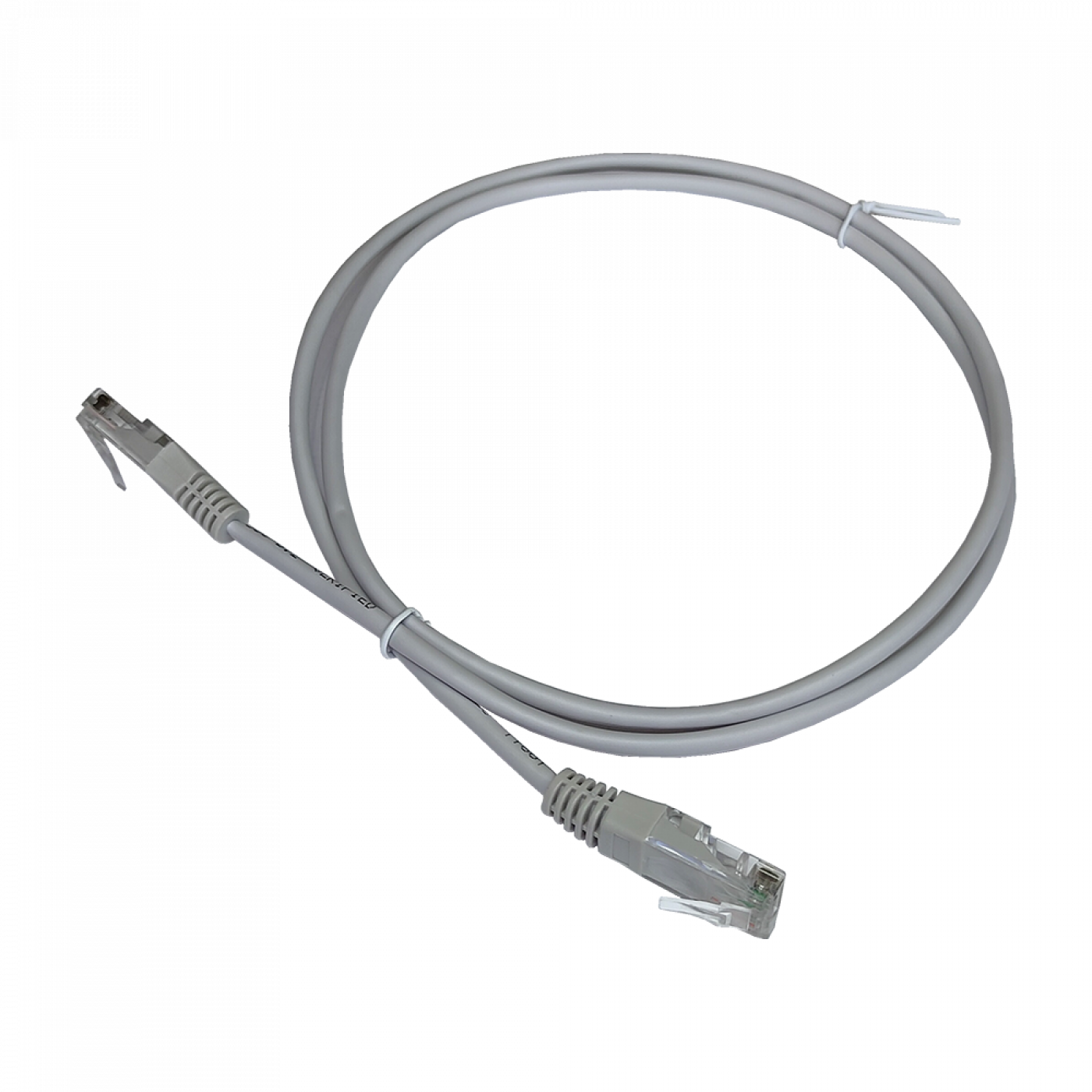

Two pair unshielded (UTP) cat. 5e patch-cords of
different lengths and colors are available under the TWT brand.
Color options:
|
White - WH |
|
|
Grey - GY |
|
|
Yellow - YL |
|
|
Orange - OR |
|
|
Green - GN |
|
|
Red - RD |
|
|
Blue - BL |
|
|
Brown - BR |
|
|
Black - BK |
Patch cords are available in various lengths:
- 0.5 m
- 1.0 m
- 1.5 m
- 2.0 m
- 3.0 m
- 5.0 m
- 7.0 m
Design features:

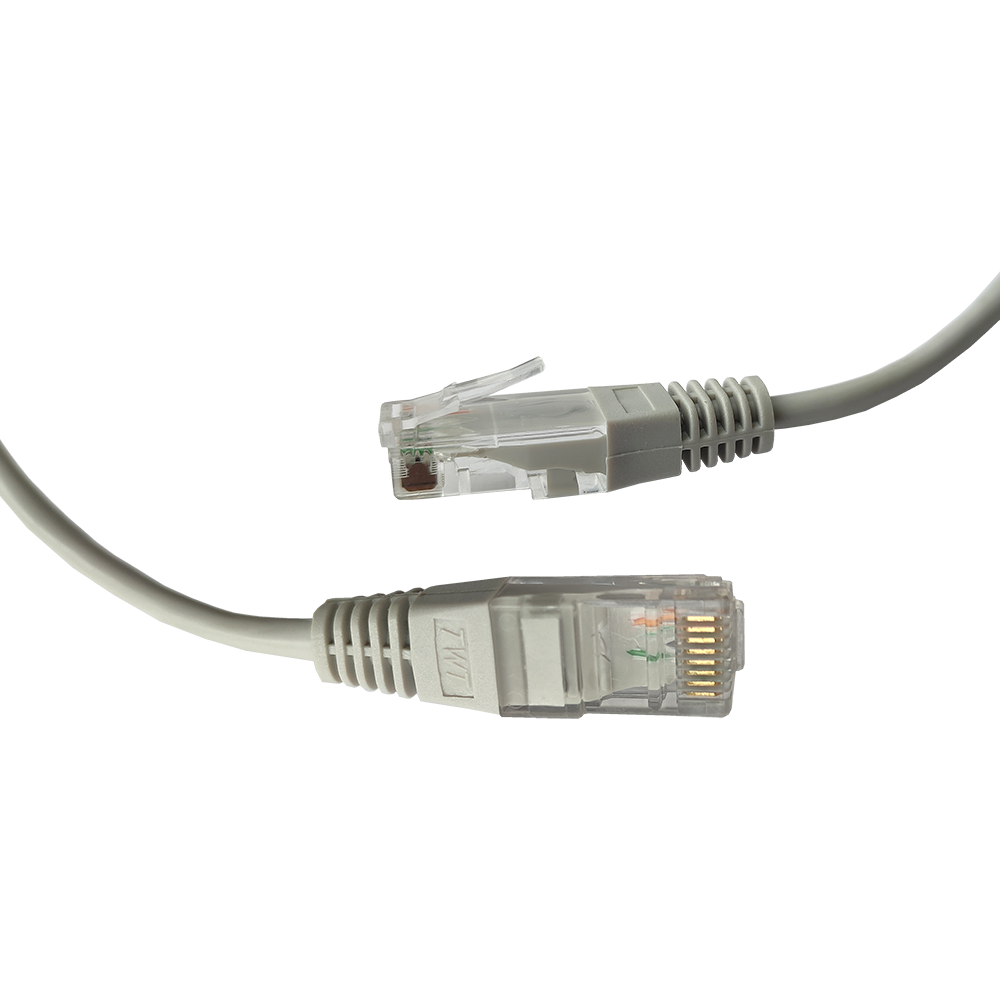

The junction between the RJ-45 plug and the cable is
filled with a plastic to ensure a strong connection between them, such a
connection is called molded. The plug has flexible strain relief boot, which provides a
given cable bending radius during operation.
Patch-cord wiring diagram, T-568B,
UTP
Plug A (contacts on top) Twisted pair Plug B (contacts
on top)
|
# Pin |
Conductor
color |
# Pin |
|
1 |
White-Orange W-O |
1 |
|
2 |
Orange O |
2 |
|
3 |
White-Blue W-BL |
3 |
|
4 |
- |
4 |
|
5 |
- |
5 |
|
6 |
Blue BL |
6 |
|
7 |
- |
7 |
|
8 |
- |
8 |
