LSA-PLUS Back mount frame

LSA-PLUS Back mount frame
LSA-PLUS Back mount frame
TWT-WMF-FRx

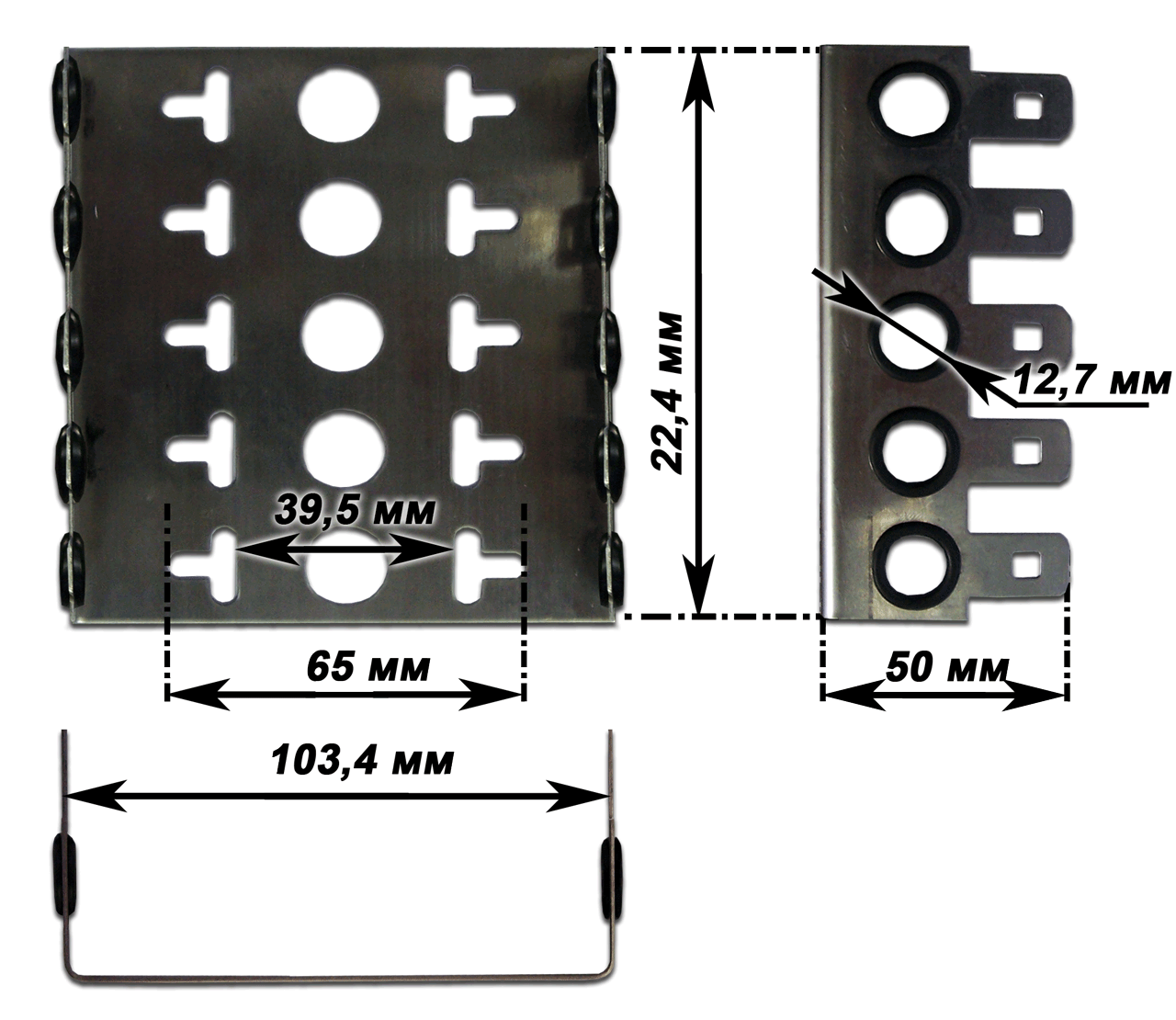

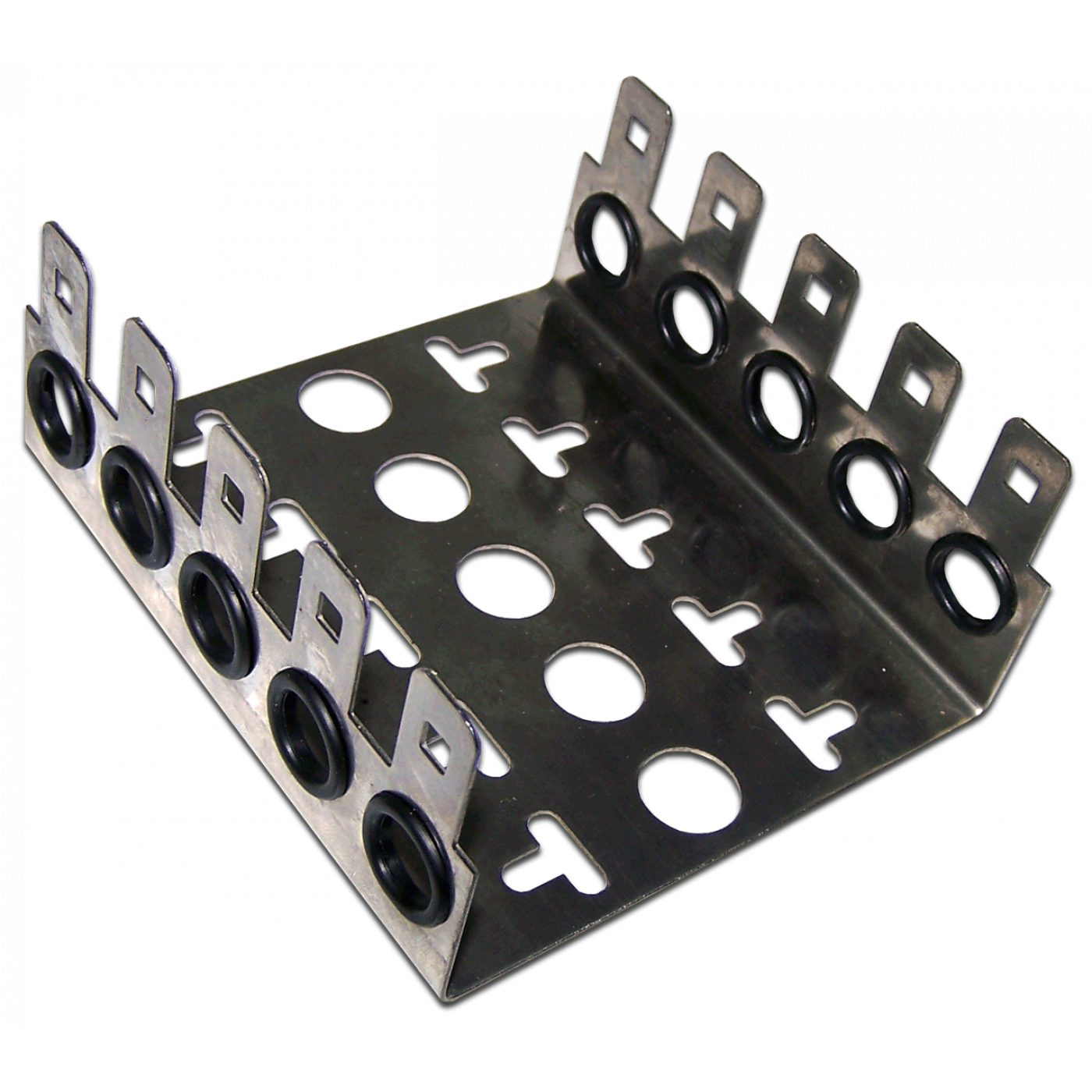

The frame is designed to install 10-pair LSA-PLUS and LSA-PROFIL connection modules on the wall.

Can be mounted directly on the wall or using special TWT-WMF-KR plastic brackets.

The frame has side holes for the input cables equipped with protective rubber rings.

The open frame design allows the use of various types of cable routing - from top, bottom, sides.

Made of stainless steel.




Model range (5)

  • Code Code / Name Name Количество
  • TWT-WMF-FR3
    LSA-PLUS Backmount frame, 3 connection modules
  • TWT-WMF-FR5
    LSA-PLUS Backmount frame, 5 connection modules
  • TWT-WMF-FR10
    LSA-PLUS Backmount frame, 10 connection modules
  • TWT-WMF-FR15
    LSA-PLUS Backmount frame, 15 connection modules
  • TWT-WMF-FR25
    LSA-PLUS Backmount frame, 25 connection modules
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
