Flat voice cable, 4 wires, 28 AWG, 100 meters hank, grey
Flat voice cable, 4 wires, 28 AWG, 100 meters hank, grey
TWT-TEL4/100-GY
Flat voice cable with 4 wires is designed for phone jumpers and patch cords.

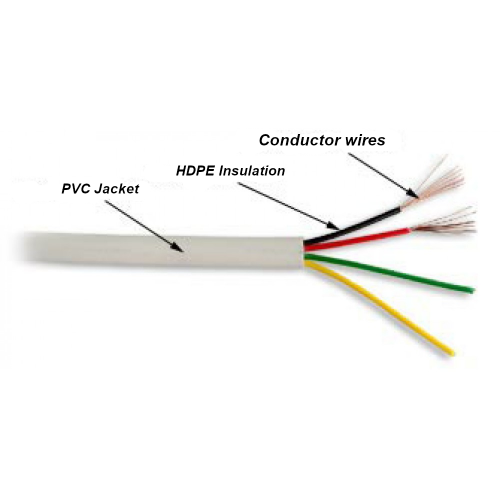

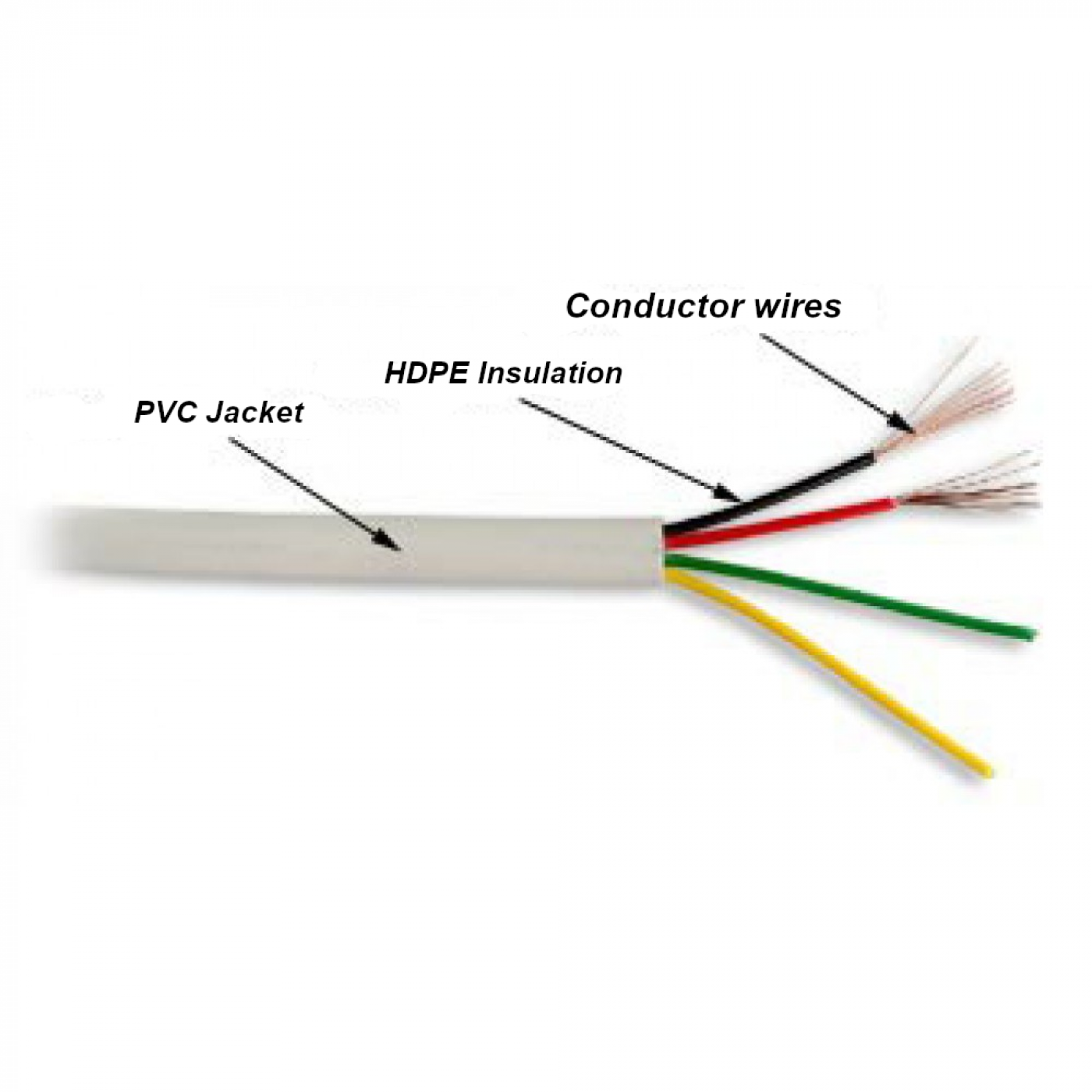

Cable comprises 4 stranded conductors which run parallel and without the twist.
Each conductor is insulated with HDPE (high density polyethylene). 4 parallel conductors without the twist are covered with single PVC jacket.
| Specification | Value |
| Jacket Color | Grey |
| Jacket Material | PVC (polyvinyl chloride) |
| Insulation Material | HDPE (high density polyethylene) |
| Conductor Type | Stranded |
| Conductor Gauge | 28 AWG |
| Nominal Velocity Propagation (NVP) |
|
| Cable Diameter | 4 × 2 mm |
| Cable Length per Reel | 100 m |
| Operating Temperature | -20 ºC to 60 ºC |
