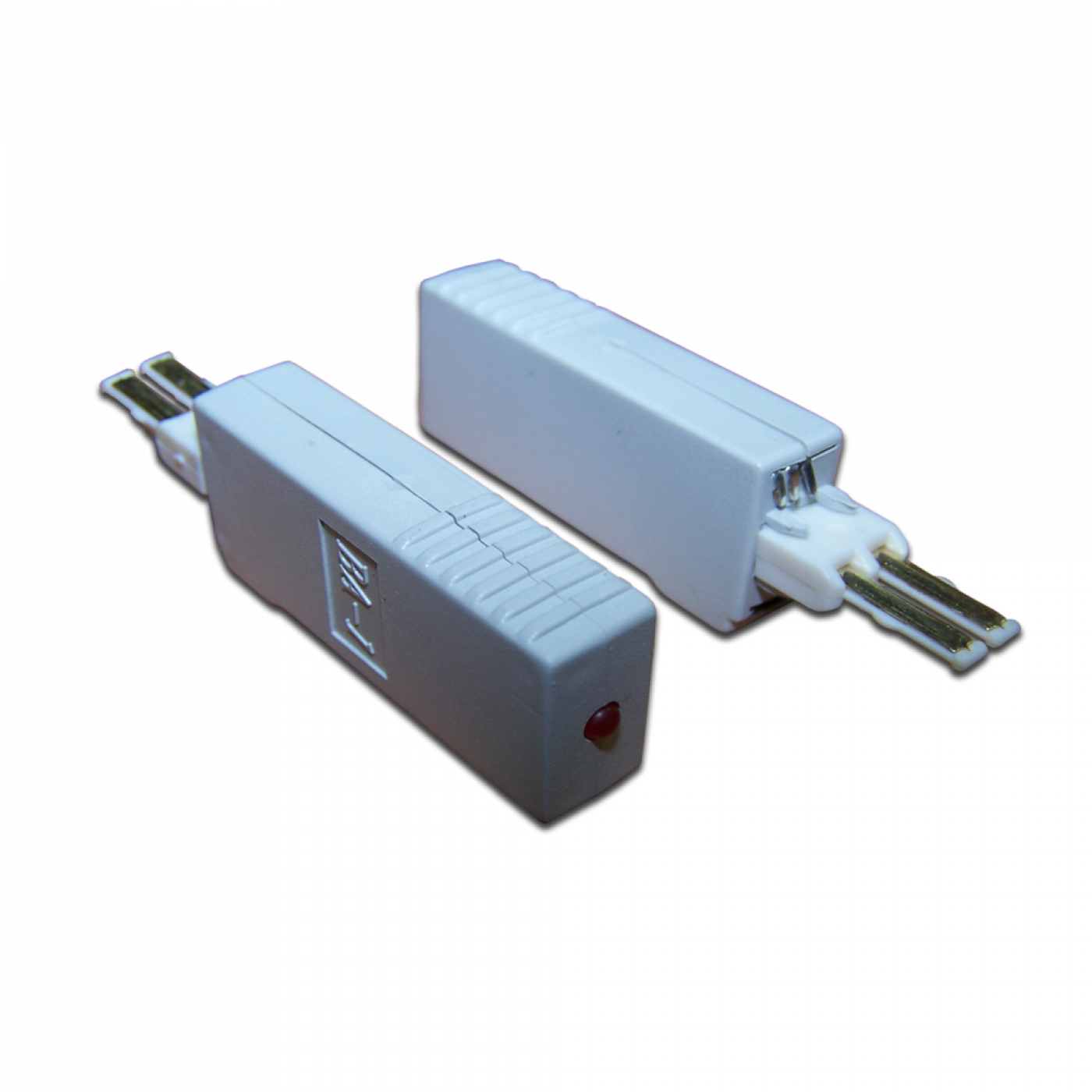

Single pair protection plug (overvoltage and overcurrent), 260V, 10A/10kA
Внимание!
Снято с производства.
К отгрузке еще доступно некоторое количество модулей в данном артикуле.
Доступно только то количество товара, которое имеется на данный момент на складе производителя и дистрибьюторов.
It is mainly used for electrical protection (both current and voltage) of commutation and peripheral equipment with secondary surge protection. Characteristics of primary overvoltage protection are enhanced using a reversible current protection element.
Can be used to equip LSA-PLUS and LSA-PROFIL disconnection and switching modules partially or completely in combination with an earth bar when installed in a distribution point.
The protection circuit contains a 3-pole gas discharge tube, a fail-safe thermal protection of the tube and current protection elements.
Advantages:
Ensuring the protection of one pair
Overvoltage and overcurrent limitation
It is possible to perform patching work on the module with installed protection plugs
Presence of testing contacts
Installation height is approximately 33 mm in relation to the module.
Used together with TWT-LSA10-GRND bar.
Grounding is carried out between the protection plugs and the rack frame.
Attention: the protection plug cannot be guaranteed to work without installing an earth bar. One set of protection plugs (10 pcs.) requires one ground bar.
