TWT 75 Ohm RG6U Coaxial cable, CCS, 48*0.12 mm AL braid, PVC, white, 100 m
TWT 75 Ohm RG6U Coaxial cable, CCS, 48*0.12 mm AL braid, PVC, white, 100 m
TWT-RG6U-CS48/1-WH
It is used for satellite and cable TV networks, analog video surveillance. Used for indoor installation.

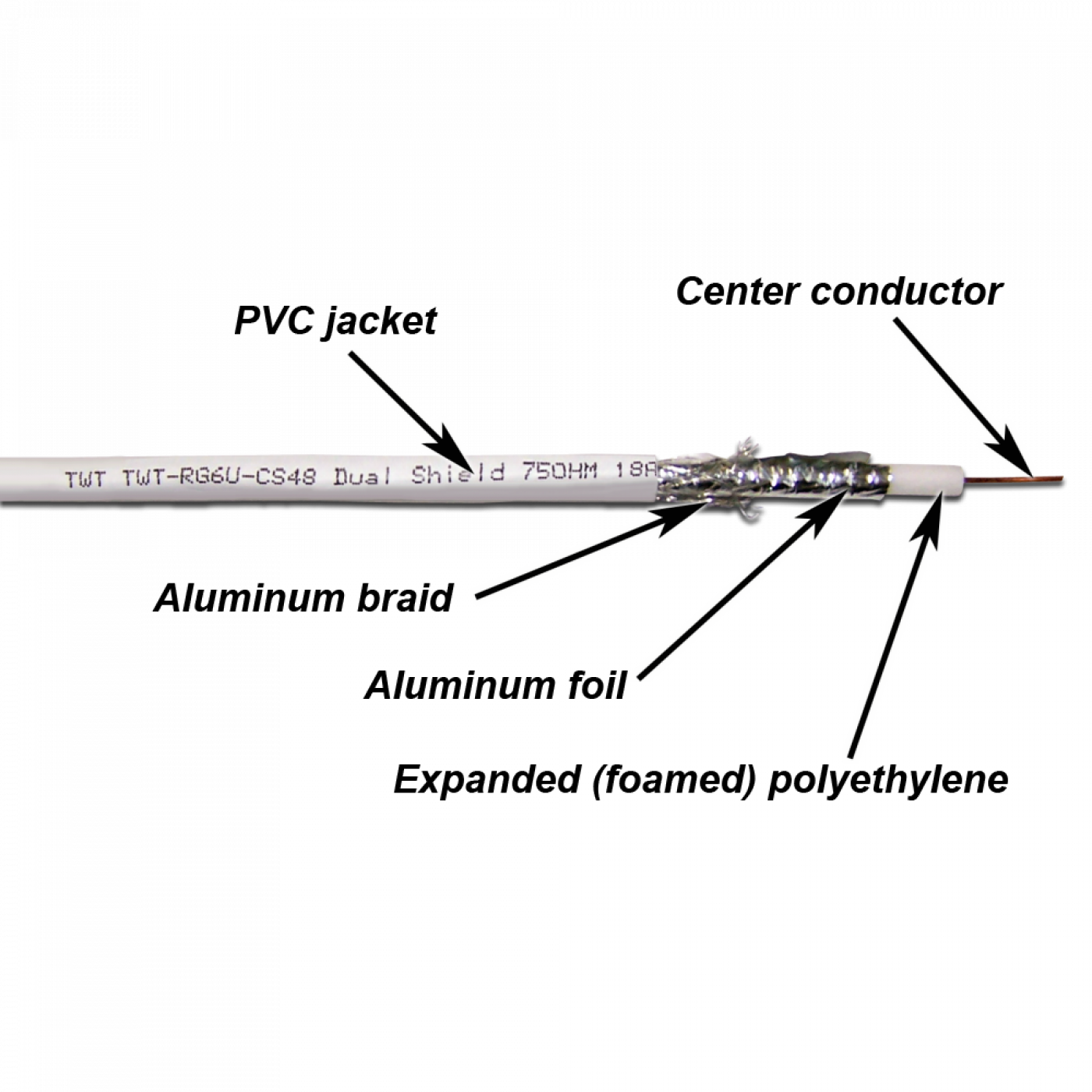

Center conductor: copper clad steel wire (CCS), solid
Center conductor insulation: low density expanded (foamed) polyethylene
Shield: aluminum laminated foil and aluminum braid
Outer jack: PVC (polyvinyl chloride)
Color: White
Packaging: 100 m coil
Physical characteristics of the cable:
| Characteristics | Value | ||
| Center conductor | Diameter | 1.02+/-0.01mm (18AWG) | |
| Material | Copper Clad Steel (CCS) | ||
| Conductor insulation | Diameter | 4.60+/-0.05мм | |
| Centering | >=90 % | ||
| Shield | №1 | Material | Aluminum foil |
| Shield density | 100% | ||
| Thickness | 0,12 мм | ||
| №2 | Number of wires | 3/16 | |
| Shield density | 25% | ||
| Material | Aluminum | ||
| Cable diameter by shield | 5,15 мм | ||
| Jacket | Diameter | 6.70±0.10 mm | |
| Material | PVC | ||
| Dielectric strength of the outer jacket | 3000Vac | ||
| Color | White | ||
| Temperature | Operating | from -20°С to +75°С | |
| Weight | Of 1 km of cable | 45 kg | |
Electrical (transmission) characteristics of the cable:
| Characteristics | Value | |
| Wave impedance | 75±3 Ohm | |
| Electrical capacitance | 53±2 pF/m | |
| Nominal velocity propagation | 83 % | |
| Return loss at 5 - 1000 MHz | ≥20 dB | |
| Attenuation, dB/100m (20°С)) | 55 MHz | 5,25 |
| 211 MHz | 10 | |
| 450 MHz | 14,43 | |
| 600 MHz | 16,73 | |
| 870 MHz | 20,04 | |
| 1000 MHz | 21,49 | |
