TWT RG11U 75 Ohm Coaxial cable, CCS, 96*0.16 mm AL braid, PE, outdoor, black, 305 m
TWT RG11U 75 Ohm Coaxial cable, CCS, 96*0.16 mm AL braid, PE, outdoor, black, 305 m
TWT-RG11-CS96/3-OUT

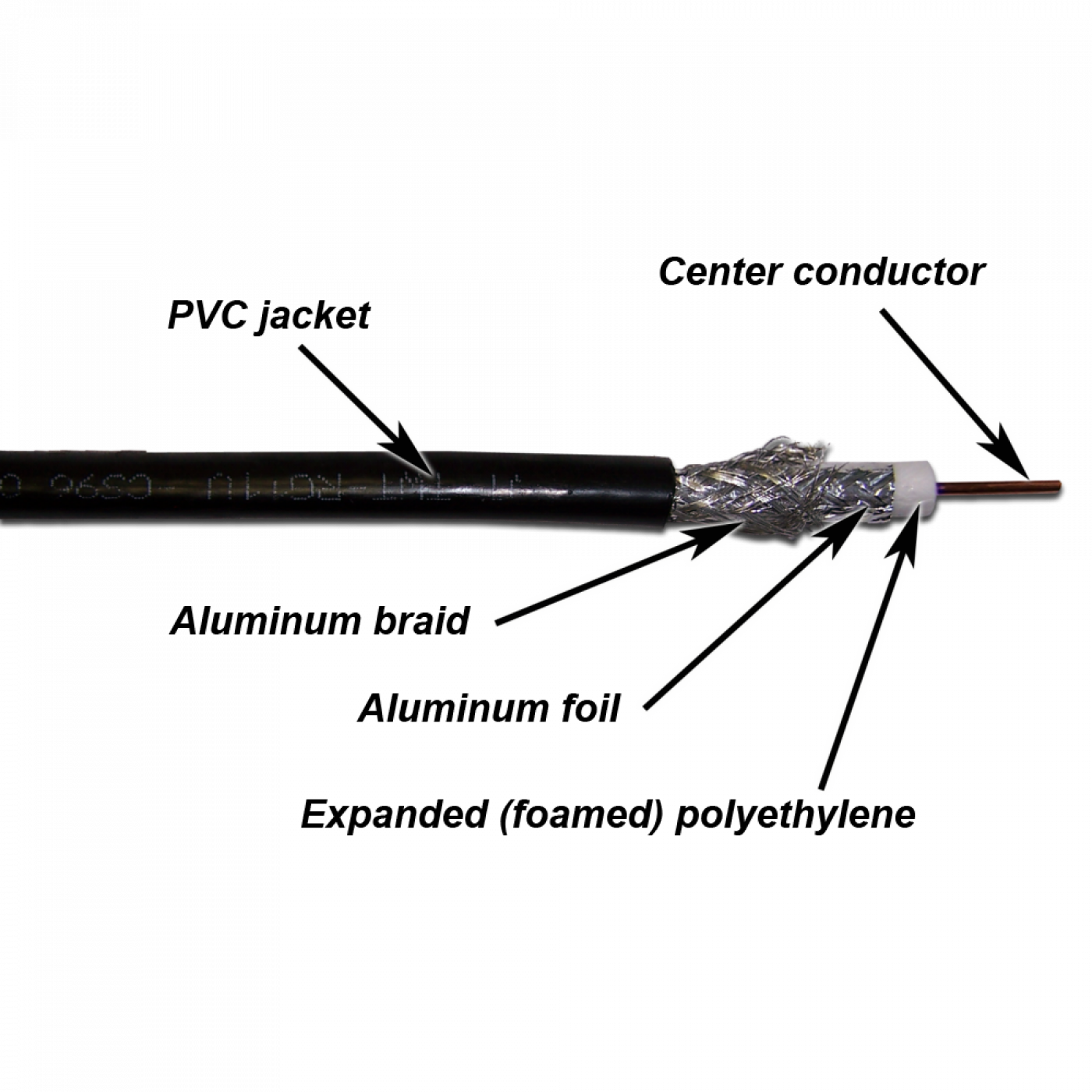

It is used for cabling television backbone networks. Used for outdoor installation or when burring directly in the ground.

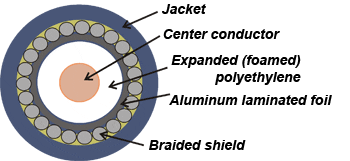

Center conductor: copper clad steel wire (CCS), solid
Center conductor insulation: low density expanded (foamed) polyethylene
Shield: aluminum laminated foil and aluminum braid
Outer jack: PE (polyethylene)
Color: Black
Packaging: 305 m on a reel
Physical characteristics of the cable:
| Characteristics | Value | ||
| Center conductor | Diameter | 1.63+/-0.01 ( 14AWG ) | |
| Material | Copper Clad Steel (CCS) | ||
| Conductor insulation | Diameter | 7.20+/-0.13 mm | |
| Centering | >=90 % | ||
| Shield | №1 | Material | Aluminum foil |
| Shield density | 100% | ||
| Thickness | 0,16 mm | ||
| №2 | Number of wires | 6/16 | |
| Shield density | 60% | ||
| Material | Aluminum | ||
| Cable diameter by shield | 7,91 mm | ||
| Jacket | Diameter | 10.20±0.10 mm | |
| Material | PE | ||
| Dielectric strength of the outer jacket | 3000Vac | ||
| Color | Black | ||
| Temperature | Operating | from -40°С to +70°С | |
| Weight | Of 1 km of cable | 100 kg | |
Electrical (transmission) characteristics of the cable:
| Characteristics | Value | |
| Wave impedance | 75±3 Ohm | |
| Electrical capacitance | 53±2 pF/m | |
| Nominal velocity propagation | 83 % | |
| Return loss at 5 - 1000 MHz | ≥20 dB | |
| Attenuation, dB/100 m (20°С) | 55 MHz | 0,96 |
| 211 MHz | 1,9 | |
| 450 MHz | 2,75 | |
| 600 MHz | 3,18 | |
| 870 MHz | 4,06 | |
| 1000 MHz | 4,35 | |
