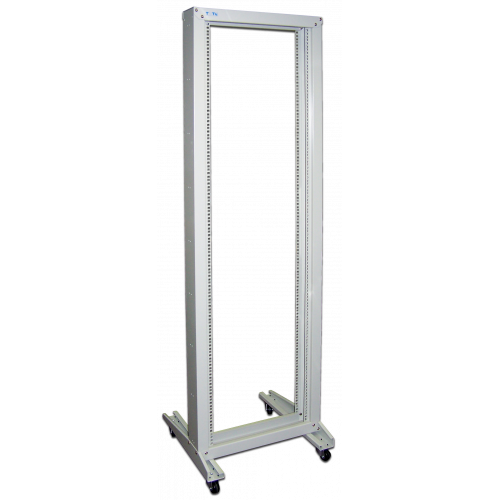

19" Two post rack
19" Two post rack
TWT-RACK1-xxU

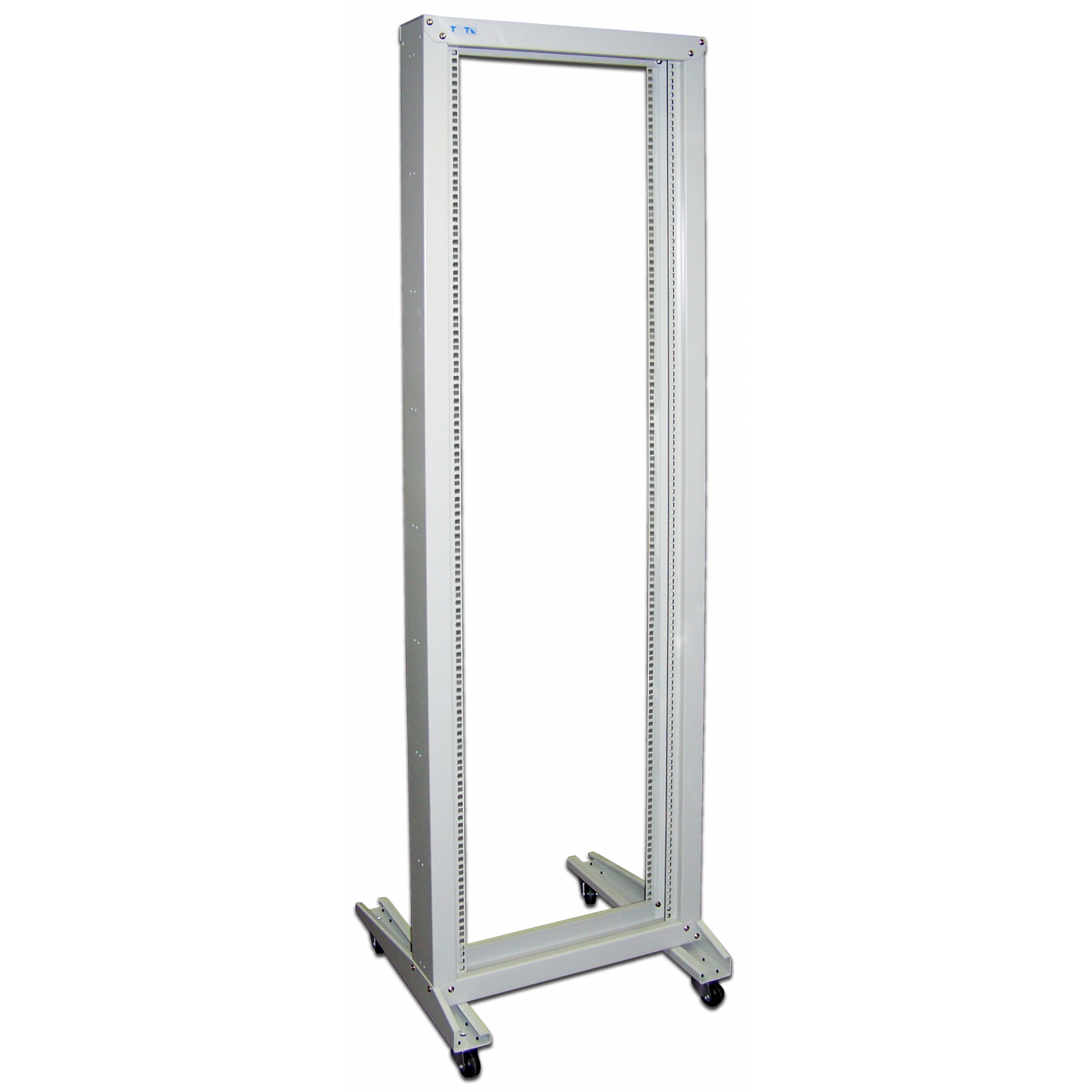

Two post floor telecommunication rack used for mounting network and telecommunication 19" equipment and two post mount (cantilevered) shelves.
The package includes a set of castors. If necessary, the rack can be mounted on legs or attached to the floor with anchors.
On the side surface of the posts, both outside and inside the frame, you can install vertical cable management plastic rings (TWT-CB-RGH-2U).
The rack is supplied unassembled. Packaged in one pack.
Height options: 29U, 33U, 38U, 42U and 47U.
Maximum rack load is 150 kg.
Powder coating painting.
Color is gray (RAL 7035).
The rack complies with international standards ANSI/EIA RS-310-D, IEC 297-2, DIN 41494-1, DIN 41494-7.
| Product code | Description | Height, RMU | Dimensions,mm (DхWхH) | Package weight, kg | Max. load, kg |
| TWT-RACK1-29U | Two post rack, 29U | 29 | 600 x 600 x 1390 | 17,5 | 150 |
| TWT-RACK1-33U | Two post rack, 33U | 33 | 600 x 600 x 1590 | 18,5 | 150 |
| TWT-RACK1-38U | Two post rack, 38U | 38 | 600 x 600 x 1790 | 19,5 | 150 |
| TWT-RACK1-42U | Two post rack, 42U | 42 | 600 x 600 x 2007 | 25,2 | 150 |
| TWT-RACK1-47U | Two post rack, 47U | 47 | 600 x 600 x 2230 | 26,24 | 150 |
