Voice patch panel, 19", 1U, 25 RJ-45 port

Voice patch panel, 19", 1U, 25 RJ-45 port
Voice patch panel, 19", 1U, 25 RJ-45 port
TWT-PP50TEL12

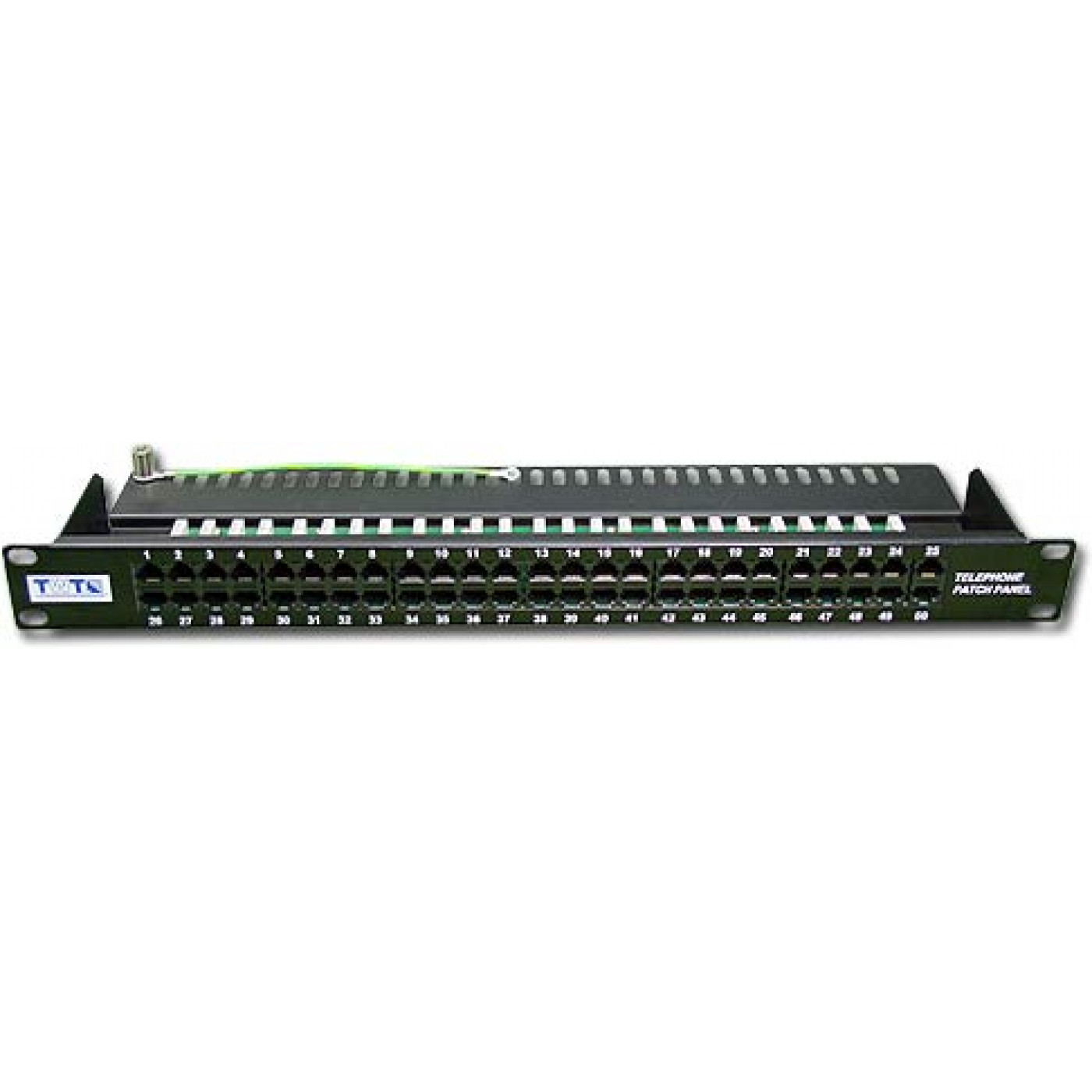

19" unshielded patch panel with 50 RJ12-6P4C ports.

The patch panel is designed for a telephone exchange switching field with a high port density (50 ports per 1U), which allows it to be used as an alternative to a 100-pair 19" 110 distribution frame.

Patch cords with RJ12 connectors must be used to connect to the patch panel.

The panel is equipped with a ground earth contact with a conductor for connecting to ground bar.

Dimensions (Depth х Width x Height) - 140 mm х 19" х 1U.

Model range (1)

  • Code Code / Name Name Количество
  • TWT-PP50TEL12
    Voice patch panel, 19", 1U, 25 RJ-45 port
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
