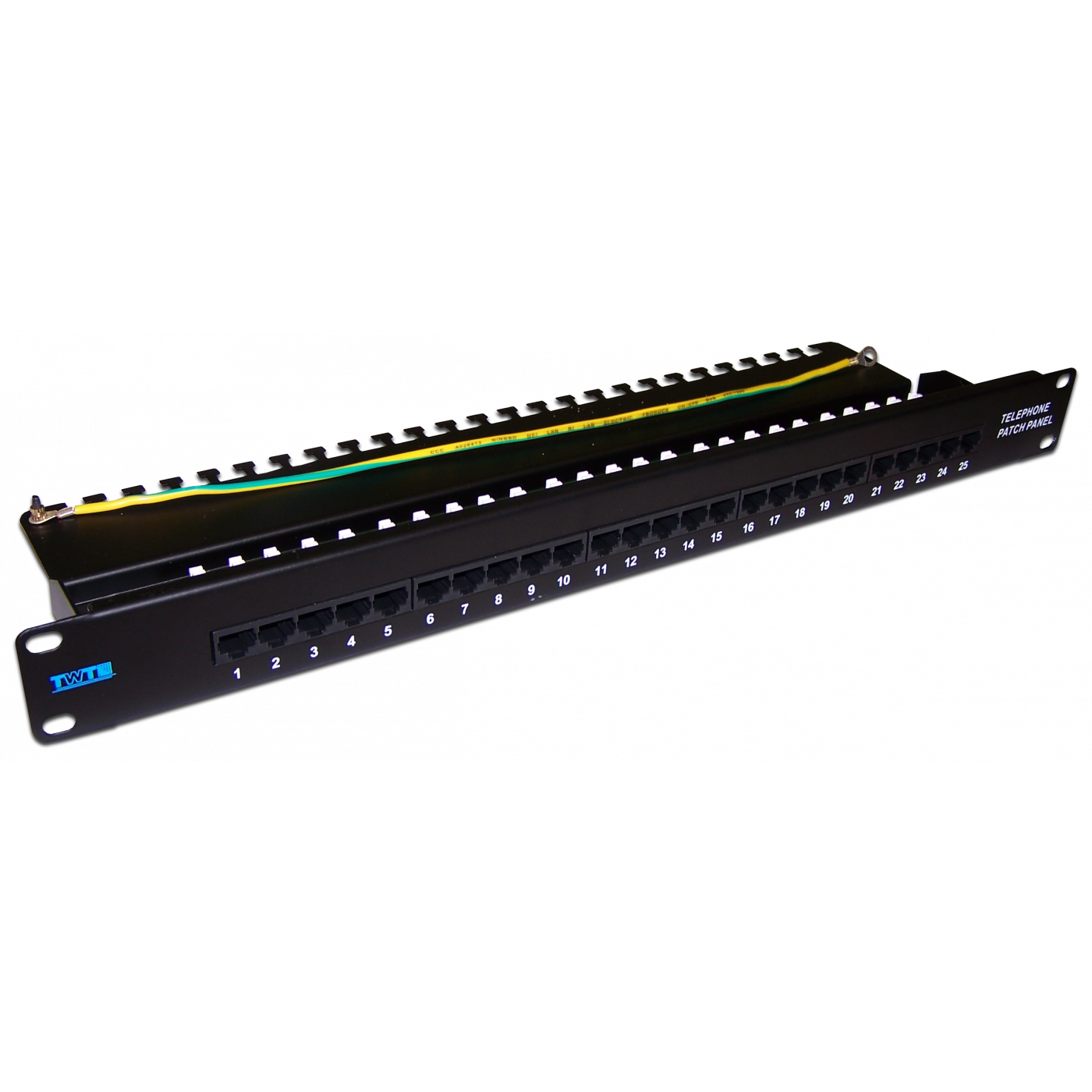

Voice patch panel, 19", 1U, 25 RJ-45 port

The TWT-PP25TEL45 patch panel is designed for termination of multi-pair twisted-pair cables by the method of insulation displacement contacts on 110 type blocks to organize the telephone exchange switching field.

The panel is equipped with a ground earth contact with a conductor for connecting to ground bar.

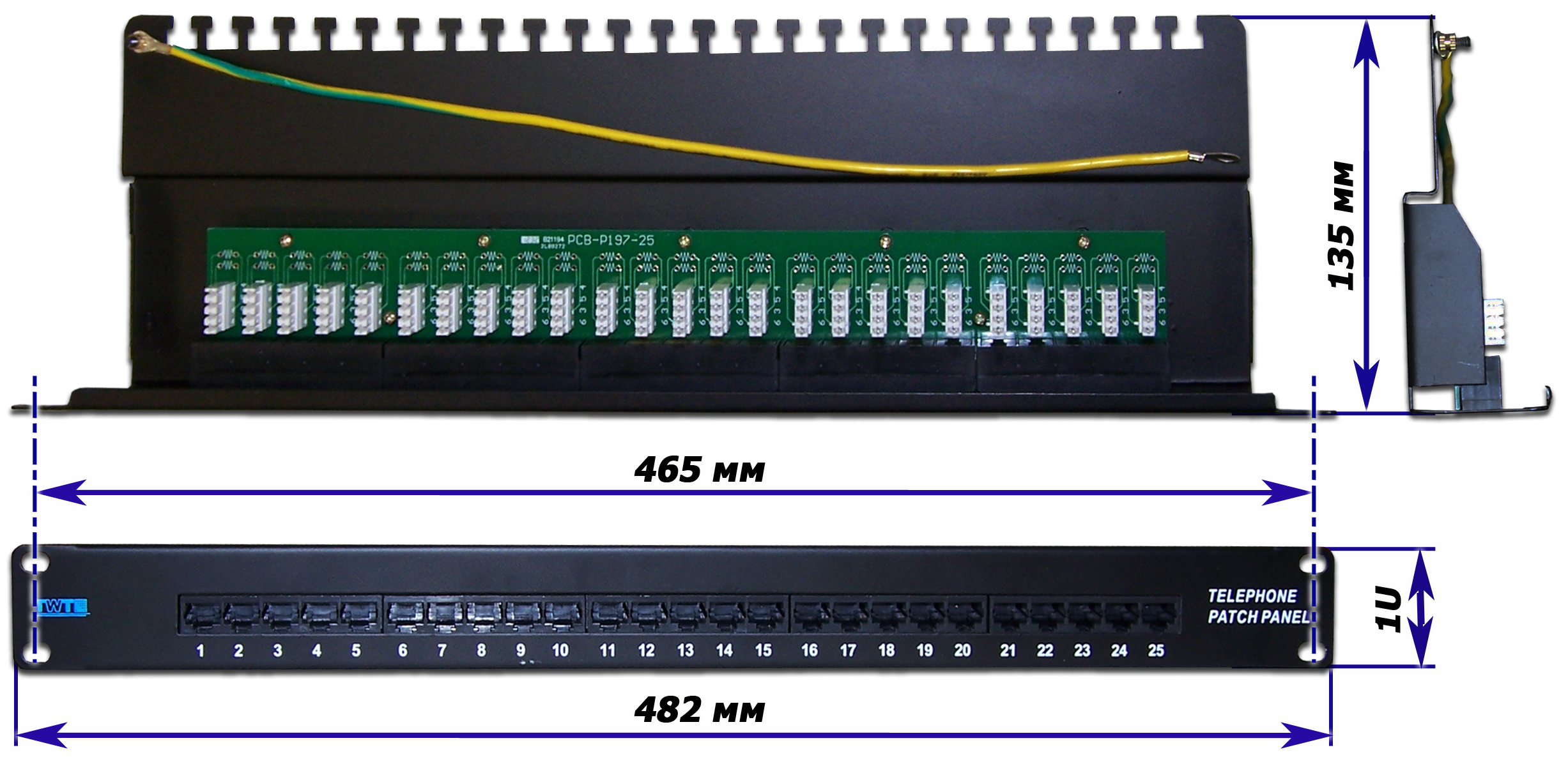

Port density is 25 ports per 1U. Convenient alternative to 110 type cross panel.

Patching is done using standard RJ-45 patch cords.

The panel can be used in Token Ring networks (active pins 3-6 & 4-5). In this case, network connections can be combined with voice over a single category 5e twisted pair.
