TELCO patch panel, 19", 1U, 24 RJ-45 port, pins 1-2, 3-6

TWT-PP24TLC-1236

Description Compatible Products

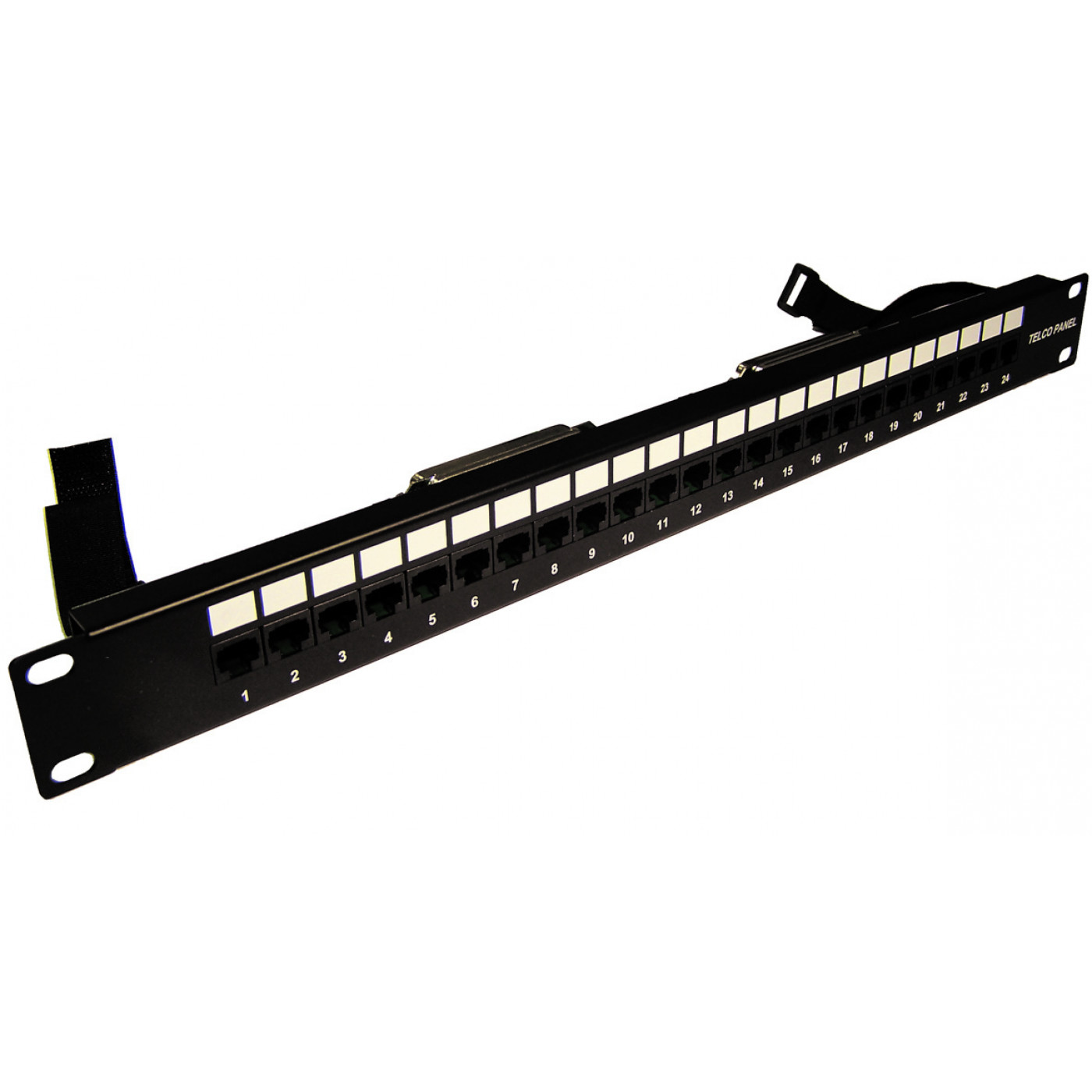

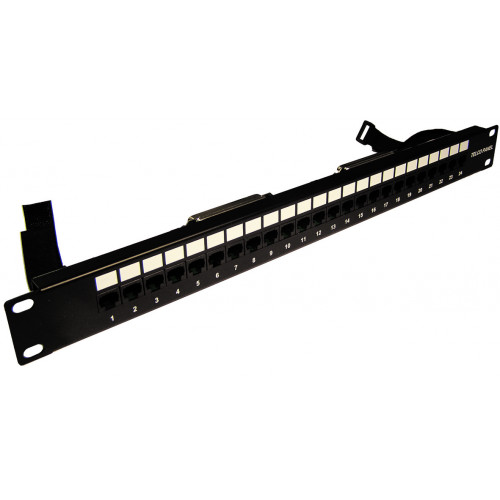

19" unshielded patch panel has 24 RJ-45 ports and two Telco connector (50 pins, female). The panel is designed for quick and easy wiring of active equipment ports for 10/100-BaseT protocol.

Allows direct connection to active network equipment equipped with Telco connectors. Each RJ-45 port has 2 pairs of Telco trunk on pins 1-2 and 3-6.

There are 2 Velcro ties on the back of the panel to secure the cable. The panel has a grounding conductor.

The panel ports are numbered on the front side.

Provided areas for additional port labeling.

Patch panel wiring diagram

TELCO 1
Pin number on TELCO connector	Pin number on RJ-45 connector	Panel port number
26	1	1
1	2
27	3
2	6
28	1	2
3	2
29	3
4	6
30	1	3
5	2
31	3
6	6
32	1	4
7	2
33	3
8	6
34	1	5
9	2
35	3
10	6
36	1	6
11	2
37	3
12	6
38	1	7
13	2
39	3
14	6
40	1	8
15	2
41	3
16	6
42	1	9
17	2
43	3
18	6
44	1	10
19	2
45	3
20	6
46	1	11
21	2
47	3
22	6
48	1	12
23	2
49	3
24	6
50
25

TELCO 2
Pin number on TELCO connector	Pin number on RJ-45 connector	Panel port number
26	1	13
1	2
27	3
2	6
28	1	14
3	2
29	3
4	6
30	1	15
5	2
31	3
6	6
32	1	16
7	2
33	3
8	6
34	1	17
9	2
35	3
10	6
36	1	18
11	2
37	3
12	6
38	1	19
13	2
39	3
14	6
40	1	20
15	2
41	3
16	6
42	1	21
17	2
43	3
18	6
44	1	22
19	2
45	3
20	6
46	1	23
21	2
47	3
22	6
48	1	24
23	2
49	3
24	6
50
25
