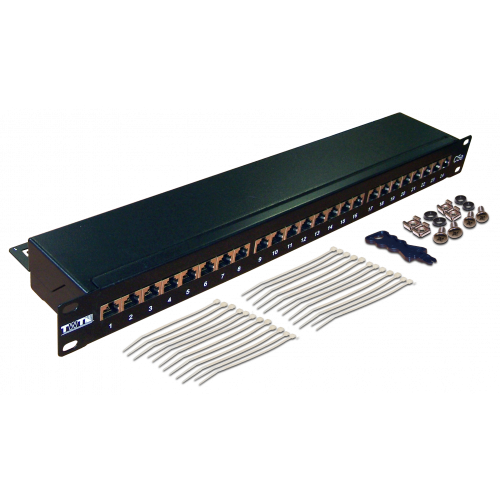

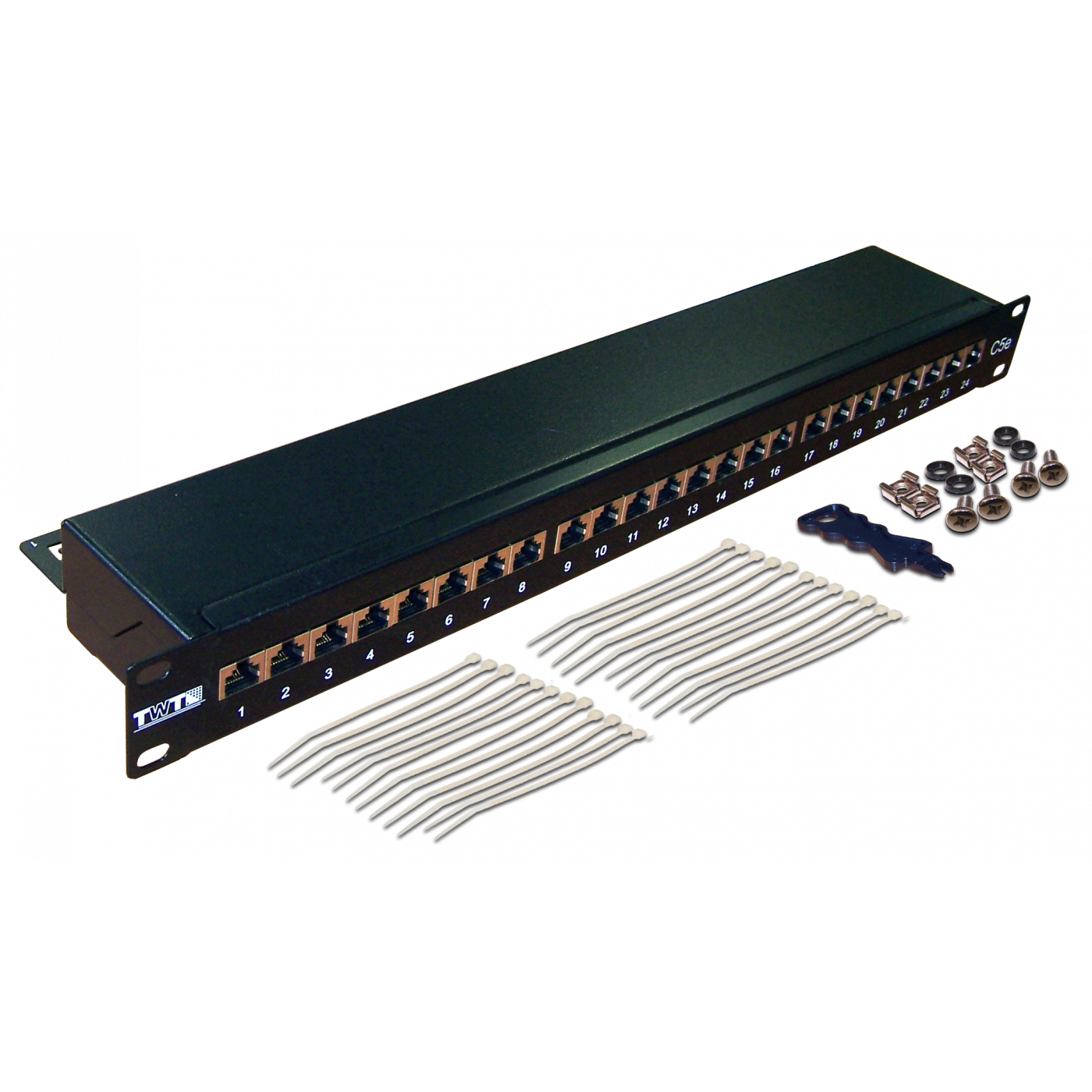

TWT Patch panel, 24 port, STP, cat. 6, 1U

TWT Patch panel, 24 port, STP, cat. 6, 1U
TWT Patch panel, 24 port, STP, cat. 6, 1U
TWT Patch panel, 24 port, STP, cat. 6, 1U
TWT-PP24STP/6

19" shielded category 6 patch panel with 24 RJ-45 ports for installation in 19" telecommunication cabinets, racks, and frames. The patch panel uses socket modules with an overall shield. The patch panel's IDC blocks of are marked according to the T568B and T568A wire maps.

The patch panel has a grounding pin for connecting to other equipment and to a telecommunications ground bar, as well as an overall screen in the form of a panel cover.

Features:

  • Modern design and easy installation
  • Category 6 compliant
  • Areas for additional labeling on the front side of the panel
  • Digital label of ports on the front side

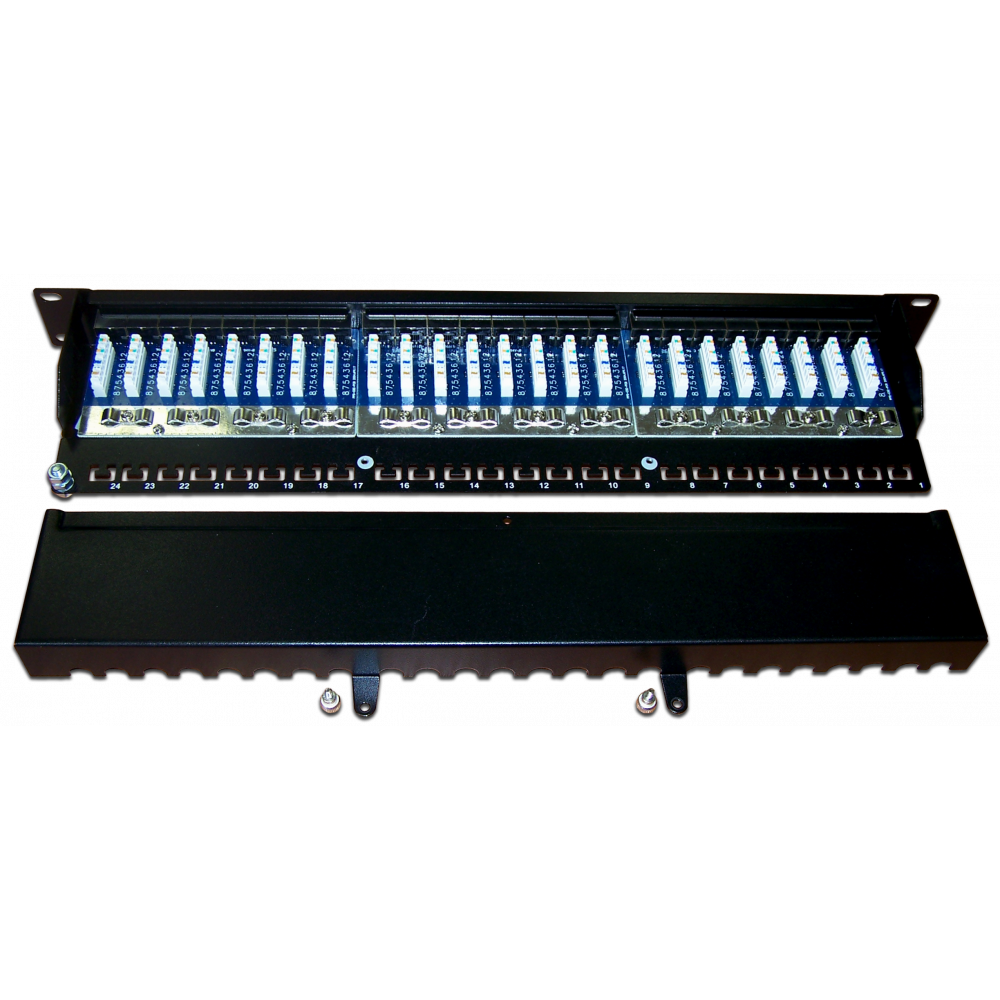

  • Color and digital marking of contacts from the back side
  • 110 IDC blocks with color coding marking according to T568B and T568A

Package included:

  • Patch panel - 1 pc
  • Mounting screw - 4 pcs
  • Cable tie - 24 pcs
  • Punchdown tool - 1 pc

Model range (1)

  • Code Code / Name Name Количество
  • TWT-PP24STP/6
    TWT Patch panel, 24 port, STP, cat. 6, 1U
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
