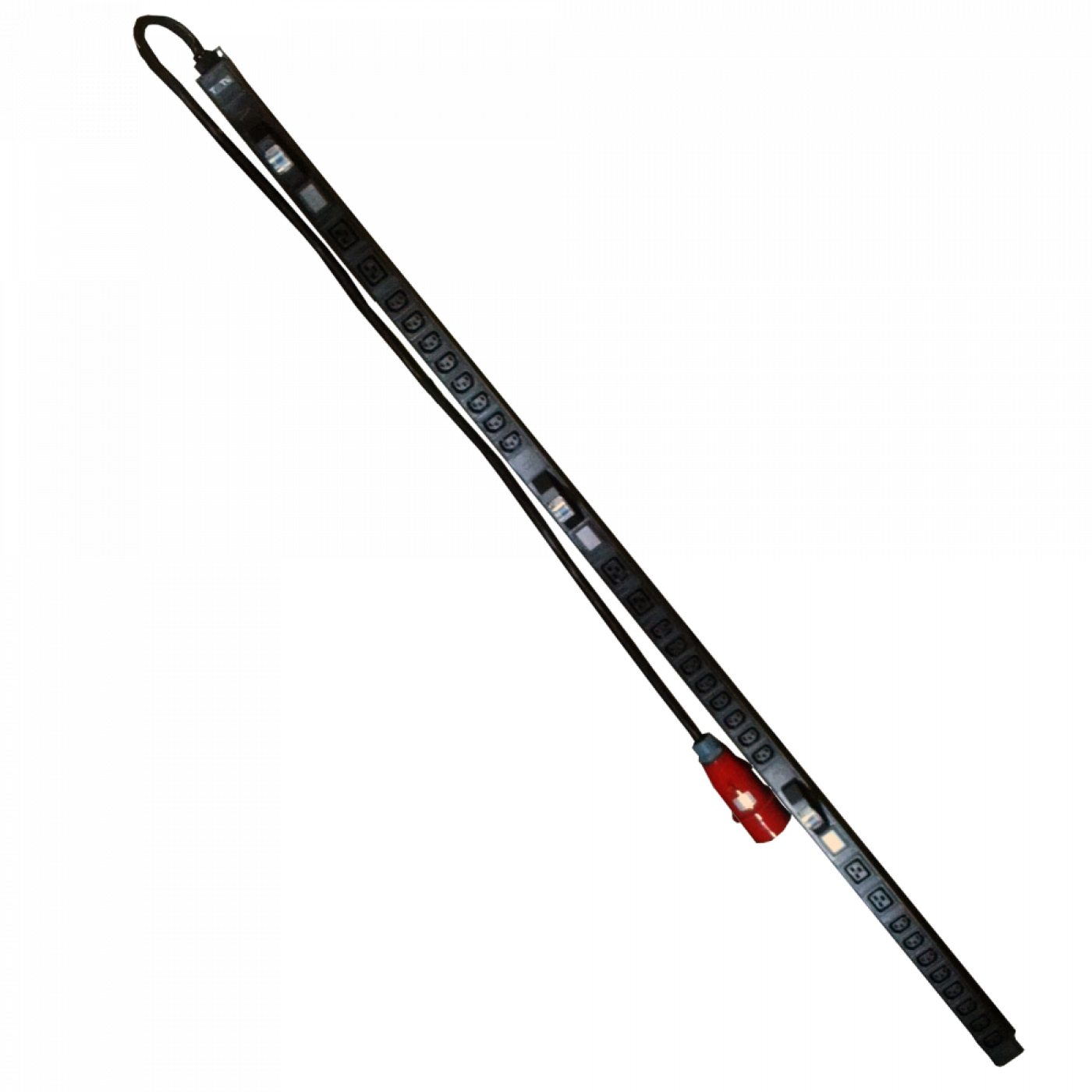

Power distribution unit, three-phase, vertical, 32А
Power distribution unit, three-phase, vertical, 32А
TWT-PDVI3-6x24-CB-32
Three-phase power distribution unit is used for power delivery in telecommunication cabinets and racks. It solves the problems of insufficient length of equipment power cords, ease of access and maintenance.
The unit is equipped with an integrated power cable with three-phase IEC309 plug and a combined set of C19 and C13 sockets. Safety circuit breakers are provided. The unit with circuit breakers includes volt-ammeters to monitor the power supply parameters on each phase.
The PDU is 1.77 meters high and can be installed vertically in 19" cabinets and racks in available locations.
| Specification | Value |
| Power source parameters | 3P / 32A / 380V~ 50 Hz |
| Output sockets (OUT) | 6 x IEC60320 С19 24 x IEC60320 С13 |
| Input plug (IN) | IEC60309 |
| On-Off Switch | Safety circuit breaker |
| Dimensions (WхHхD) | 45x60x1772 mm |
