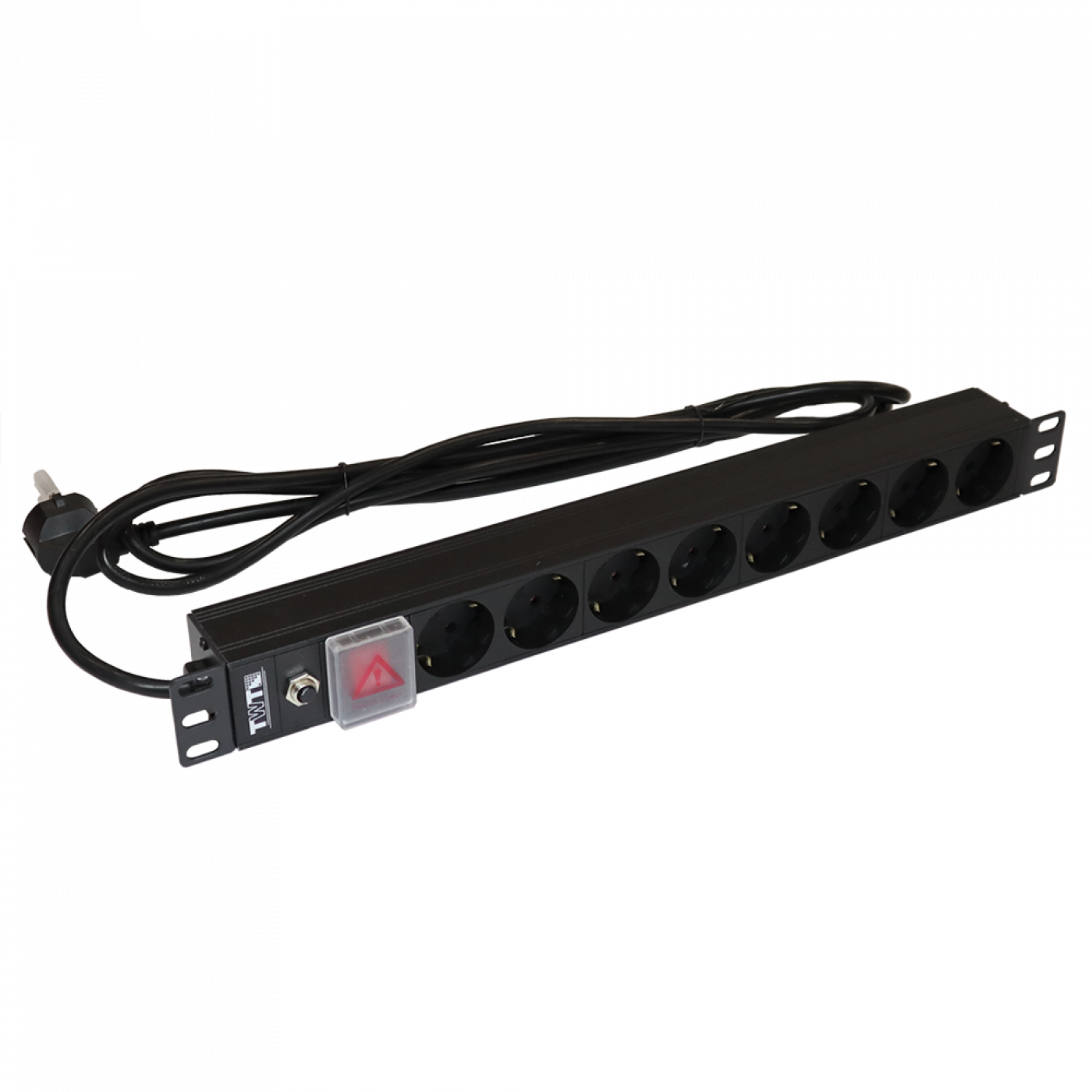

19" power distribution unit, 8 sockets, 16A, 250V

19" power distribution unit, 8 sockets, 16A, 250V
19" power distribution unit, 8 sockets, 16A, 250V
19" power distribution unit, 8 sockets, 16A, 250V
19" power distribution unit, 8 sockets, 16A, 250V
TWT-PDU19-16A8P-xx

The distribution unit is intended for power distribution and protection of computers, electronic and network equipment with Schuko plugs in telecommunication cabinets and racks.

The PDU solves the problems of insufficient length of equipment power cords, ease of access and maintenance.

The unit is equipped with a cord with a Schuko plug (DIN49441) for connecting to power mains and 8 sockets for German style plugs (DIN49440) for connecting external equipment.

The unit includes a protective circuit breaker. Sockets have protective shutters and an earth contact.

The distribution has a 1U height and can be mounted in regular 19" cabinets and racks. The power switch has a backlit.

Specifications:

  • Supply voltage is 220V
  • Total load current is not more than 16A
  • Dimensions (WхHхD) - 485х44х46 mm

Model range (2)

  • Code Code / Name Name Количество
  • TWT-PDU19-16A8P-1.8
    19" rack PDU, 1 phase with switch, 16A / 250V, 8xSchuko, 1.8 m power cord, Schuko plug
  • TWT-PDU19-16A8P-3.0
    19" rack PDU, 1 phase with switch, 16A / 250V, 8xSchuko, 3.0 m power cord, Schuko plug
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
