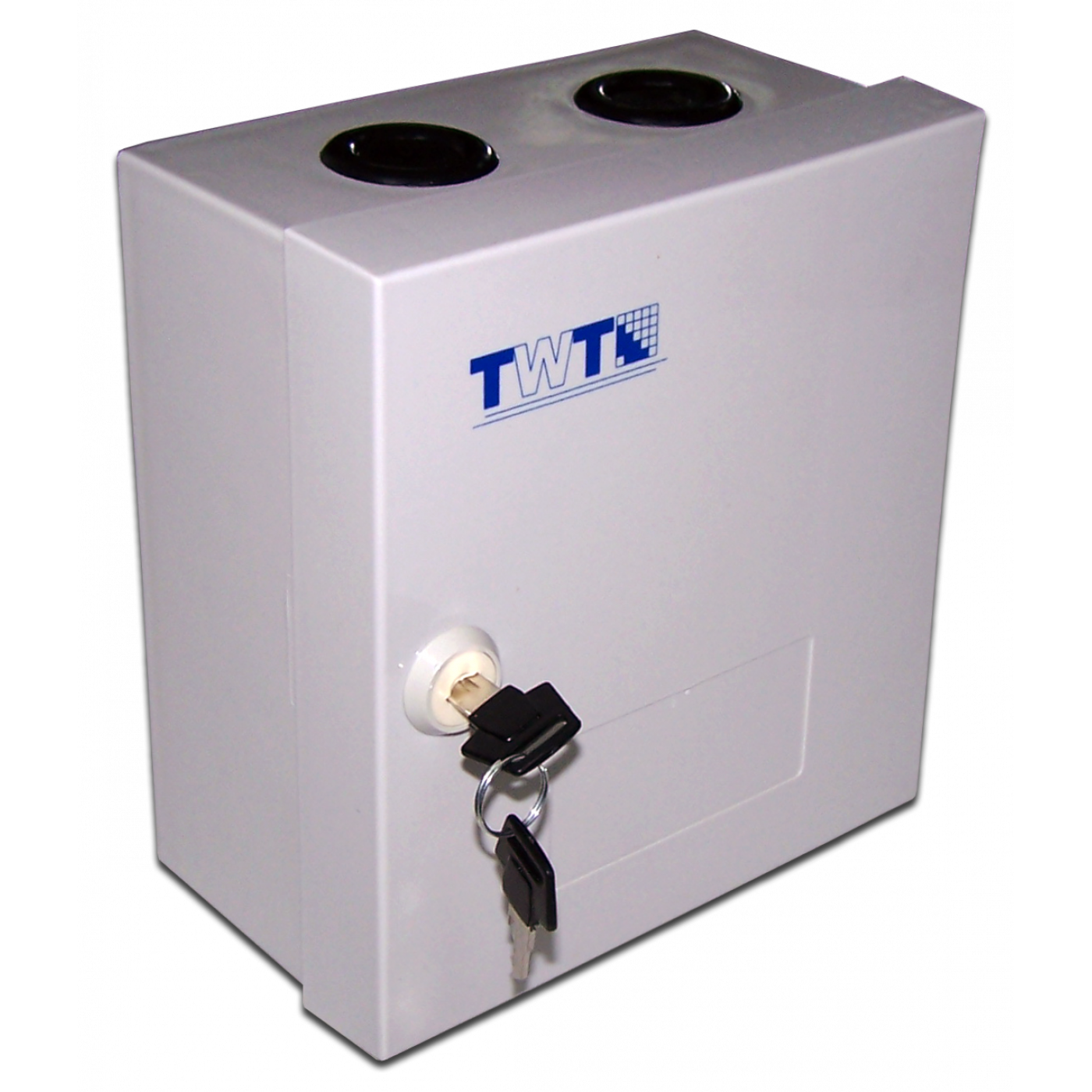

Wall-mounted simplified distribution box
-300x300.png)
-1000x1000.png)

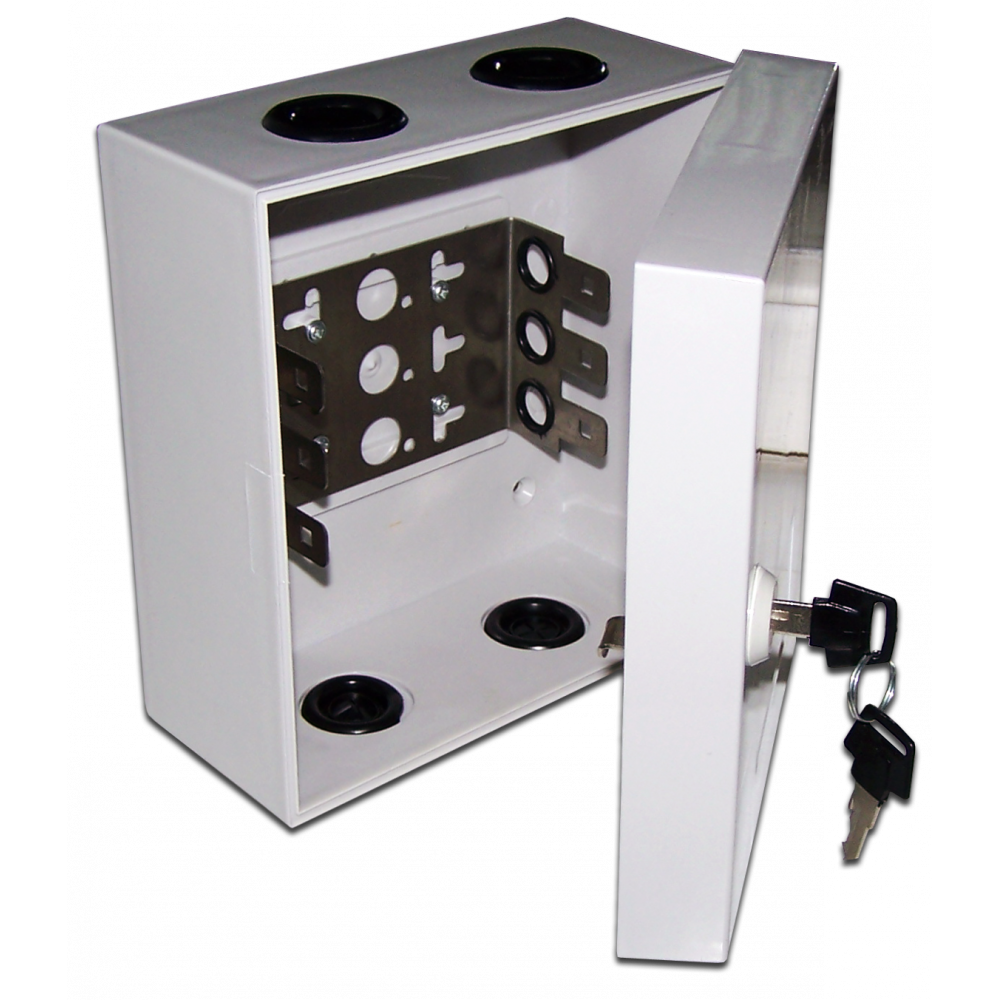

Wall-mounted distribution boxes are designed forinstallation of 10-pair LSA-PLUS connection modules.
Boxes are completed with backmount frames forinstallation of connection modules with a capacity from 30 to 100 pairs.
The door is equipped with a lock with two keysincluded.
The increased depth of the door allows theinstallation of protection magazines.
The box is non-separable, cable entry is possible fromabove and below.
Made of PVC.
Color is light grey.
Where D – cabinet depth
H – cabinet height
W – cabinet width
(see product code table)
| Product code | Description | Depth, mm | Width, mm | Height, mm |
| TWT-DB10-3P/L | Wall mounted plastic box for 3 LSA-PLUS connection modules, non-separable | 93 | 165 | 180 |
| TWT-DB10-5P/L | Wall mounted plastic box for 5 LSA-PLUS connection modules, non-separable | 105 | 190 | 203 |
| TWT-DB10-10P/L | Wall mounted plastic box for 10 LSA-PLUS connection modules, non-separable | 105 | 205 | 275 |
