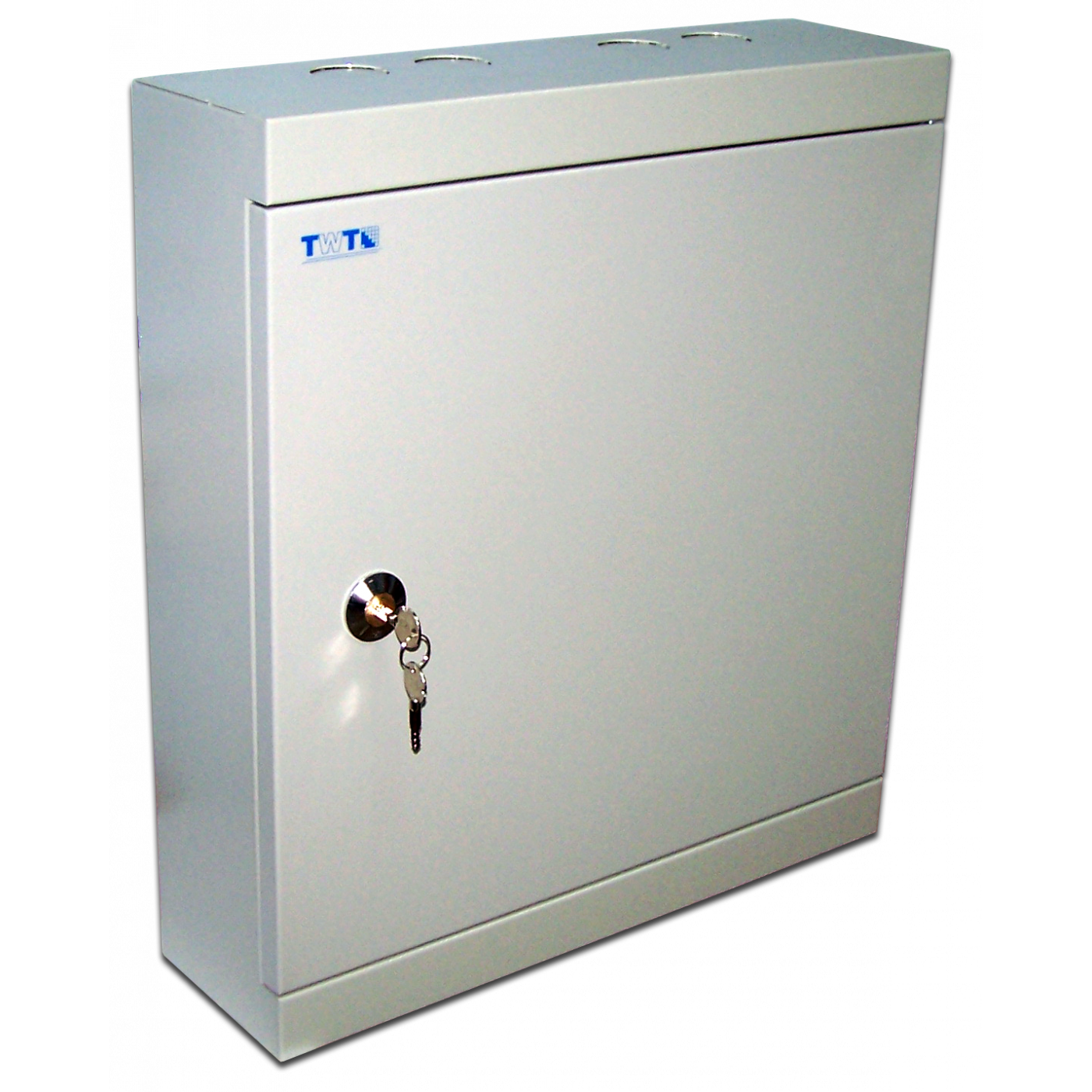

Wall-mounted metal distribution box with lock

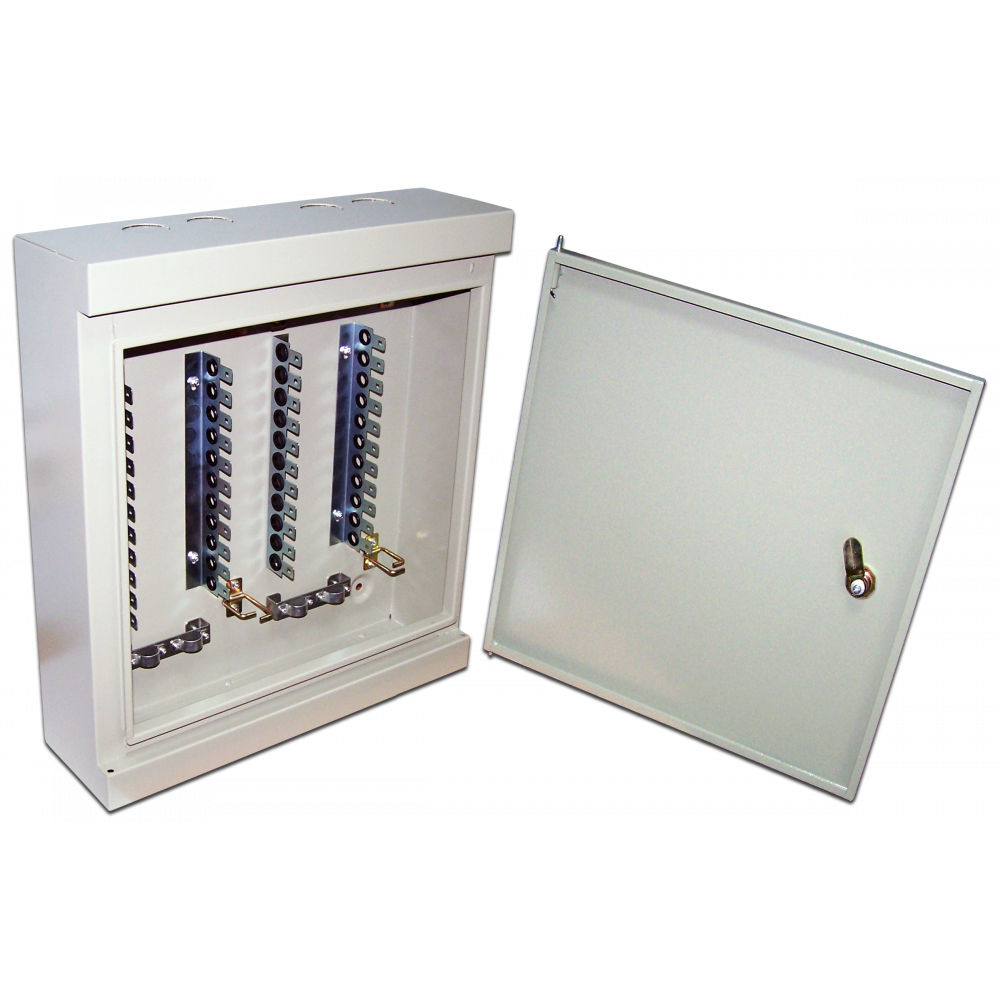

Wall-mounted distribution boxes are designed forinstallation of 10-pair LSA-PLUS connection modules.

Boxes are completed with backmount frames forinstallation of connection modules with a capacity from 200 to 1200 pairs.

The cabinet door is equipped with a lock with two keysincluded and can be installed with opening to the other side.

The depth of the cabinet is designed for the installationof protection magazines or integrated protection plugs with grounding bars.

Cable entry is possible through openings in the topand bottom panels of the cabinet.

The cabinet is completed with rings for organizingcable bundles and clamps for fixing the jackets of the input cables.

Made of cold rolled steel (0.9 mm).

Painting - powder coating.

Color is light grey.

Where D – cabinet depth

H – cabinet height

W – cabinet width

(see product code table)
