TWT-DB10-xP/KM

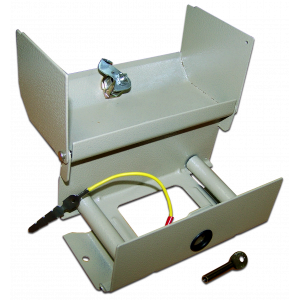

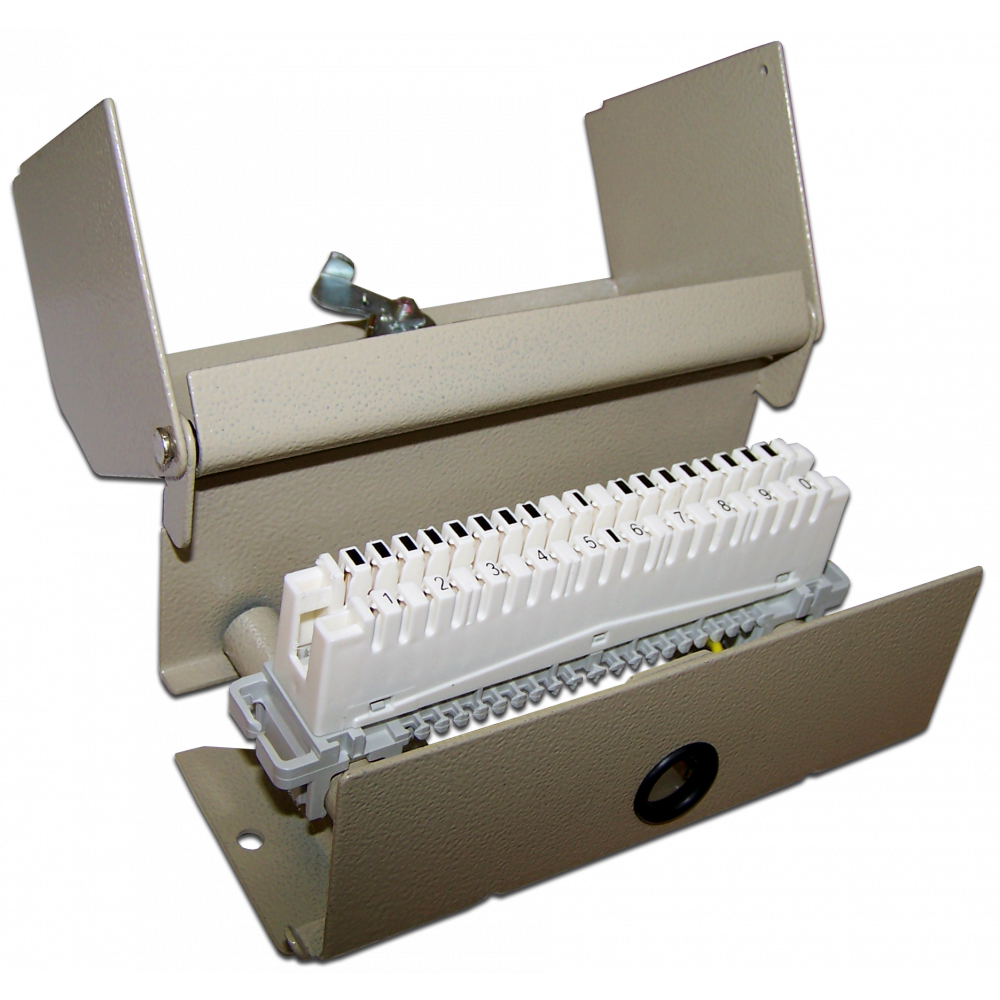

The wall-mounted metal distribution box is designed for installation of 10-pair TWT-LSA10P-xxx connection modules (modules are supplied separately) with LSA-PROFIL frame.

Available for 1, 2 or 3 LSA-PROFIL modules.

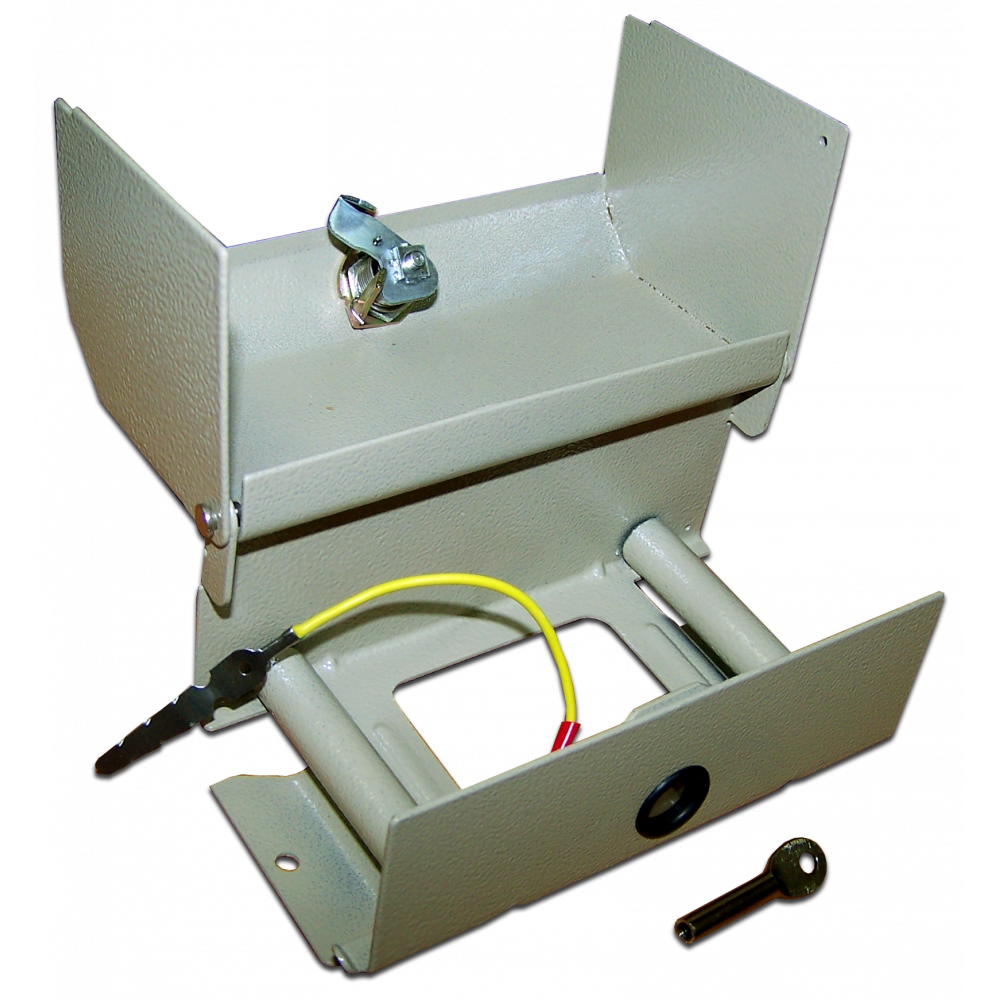

The box is equipped with a grounding conductor.

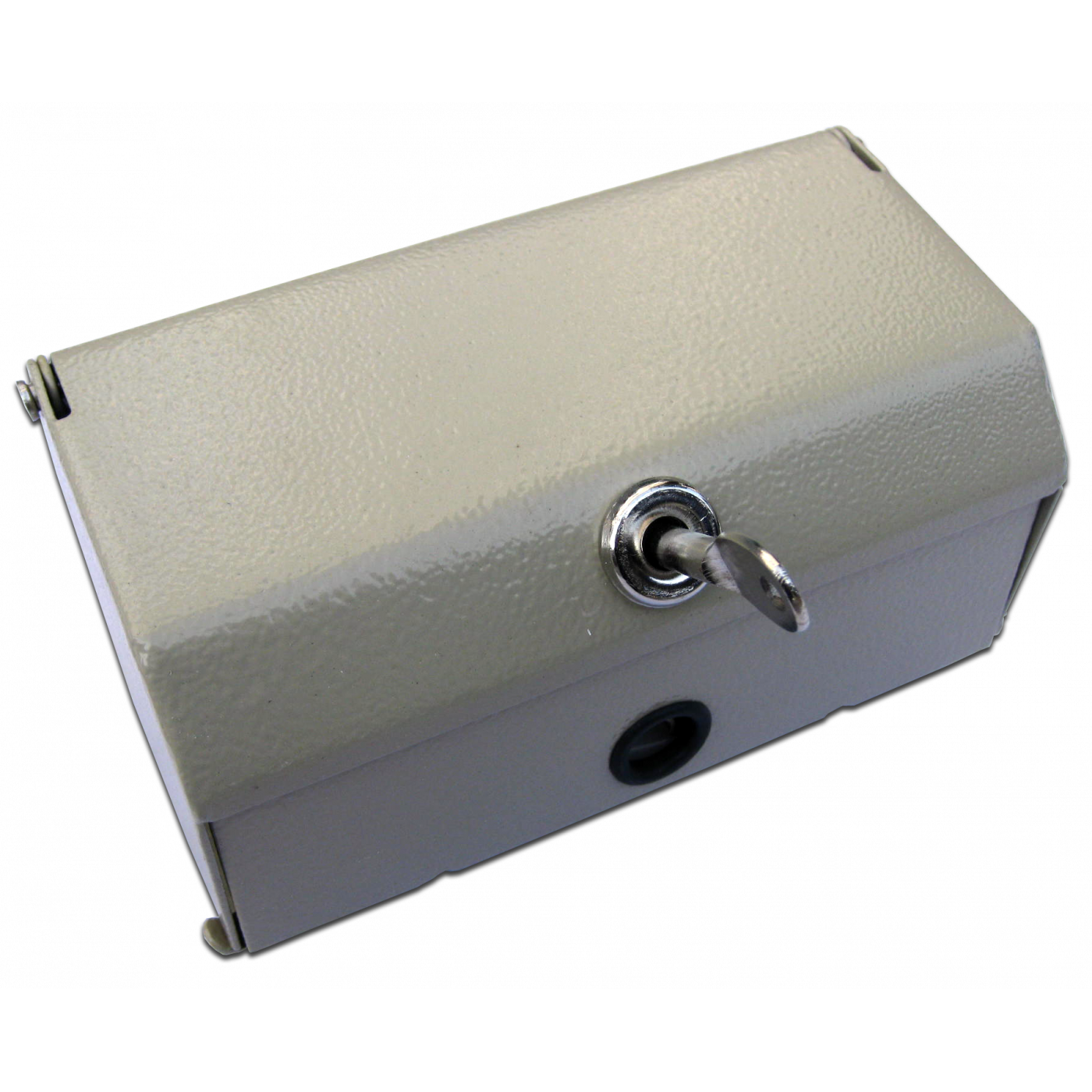

The door is equipped with a lock with a screw key, which allows using the box in general premises and reliably protecting the connection equipment from unauthorized access.

Cable entry is possible from four sides.

Made of metal.

Painting - powder coating

Color is beige.

Model range (3)

  • Code Code / Name Name Количество
  • TWT-DB10-1P/KM
    Wall-mounted metal distribution box with lock for one connection module, 10 pairs
  • TWT-DB10-2P/KM
    Wall-mounted metal distribution box with lock for two connection module, 20 pairs
  • TWT-DB10-3P/KM
    Wall-mounted metal distribution box with lock for three connection module, 30 pairs
