Spacers to increase the depth of the TWT-DB10-xP/K wall box
Spacers to increase the depth of the TWT-DB10-xP/K wall box
TWT-DB10-xP/HR

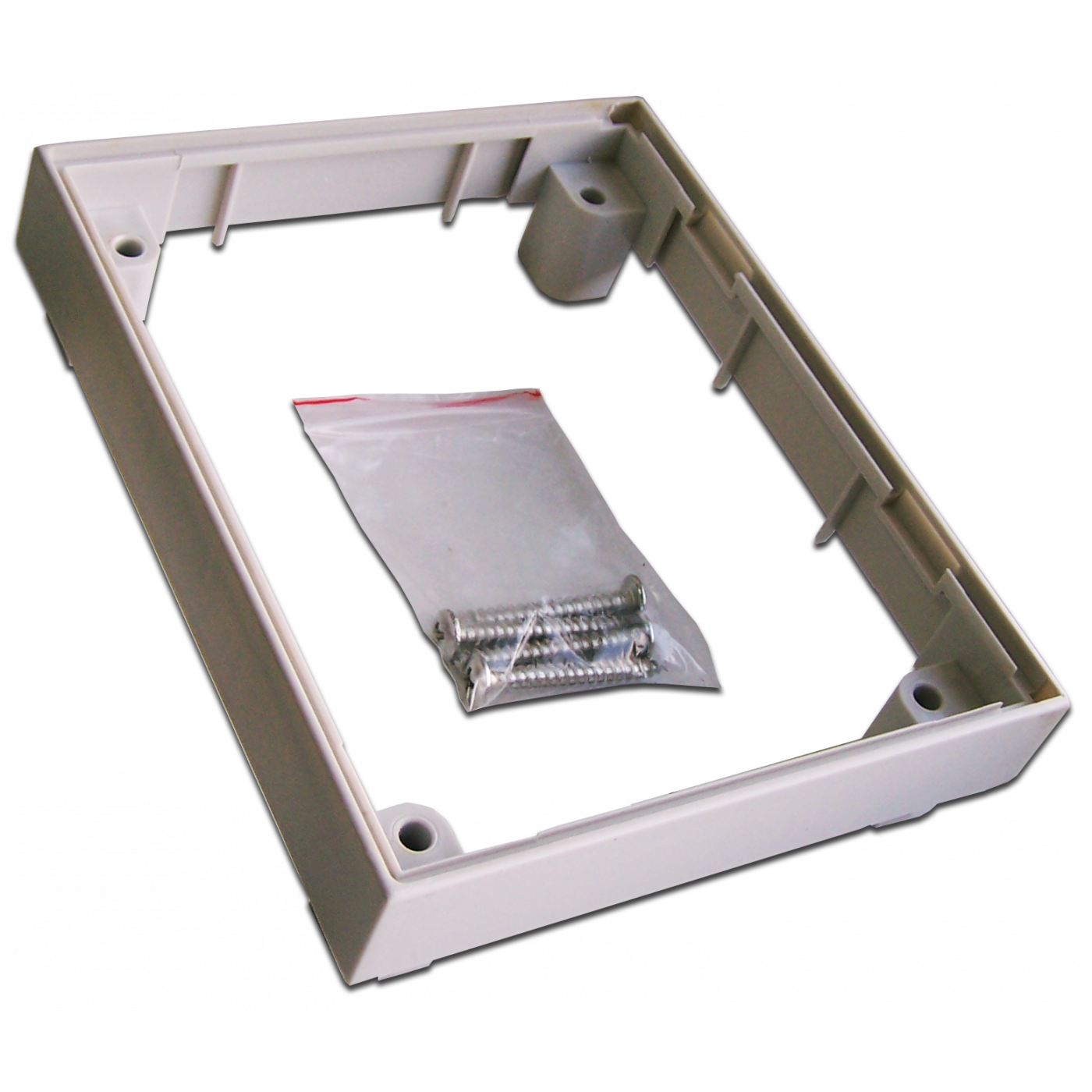

The spacer is designed for installation on a
wall-mounted TWT-DB10-xP/K distribution box.
The spacer allows you to increase the depth of the box
for installing 10-pair LSA connection modules with protection element magazines
or integrated protection plugs together with grounding buses.
Mounted directly on the front of the box with the door
previously removed. The door is later installed in the grooves of the spacer.
Kit includes 4 fixing screws.
Made of PVC.
Color is light grey.
Spacer installation sequence
|

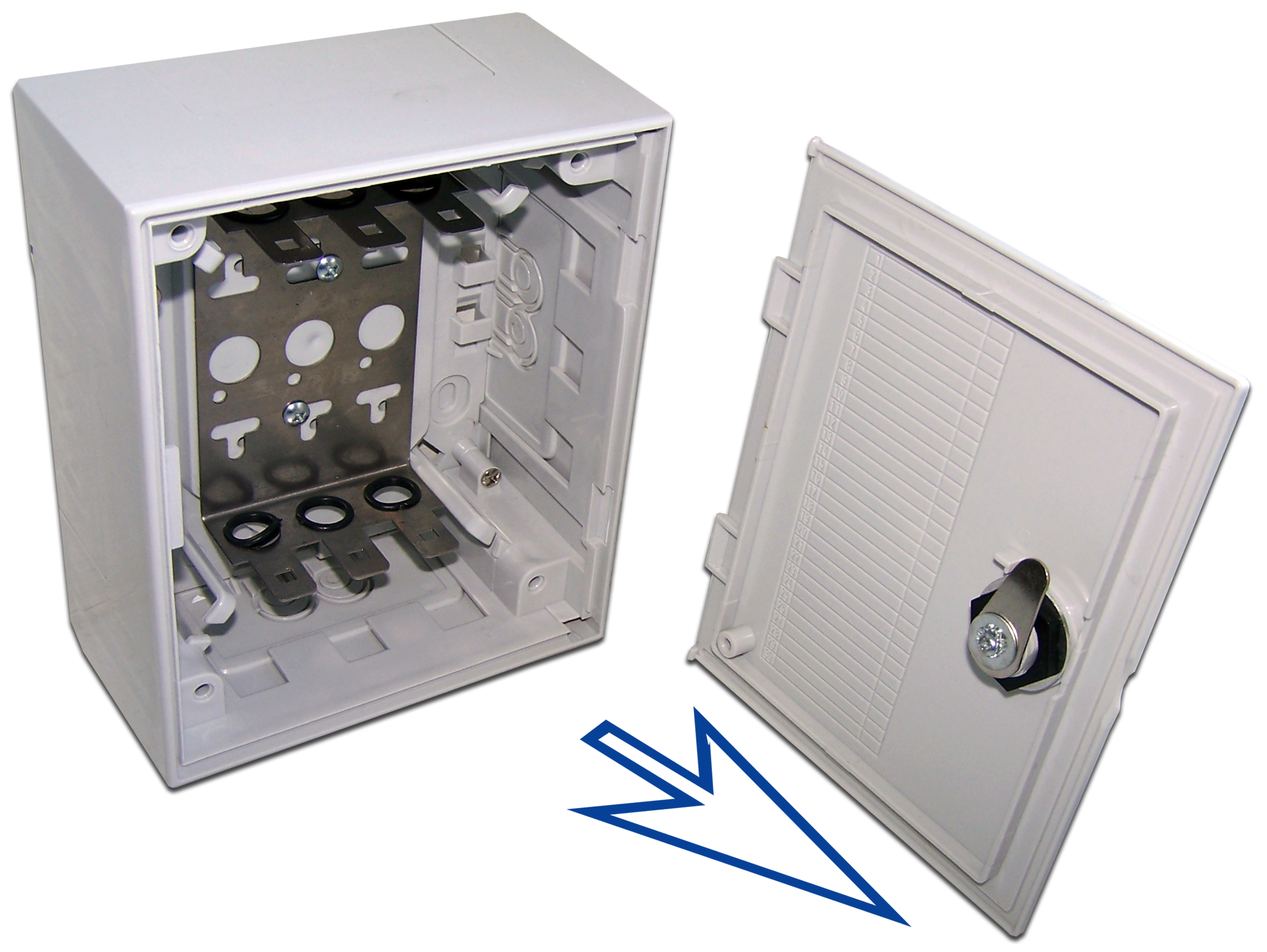

1) Remove box door |
|
|

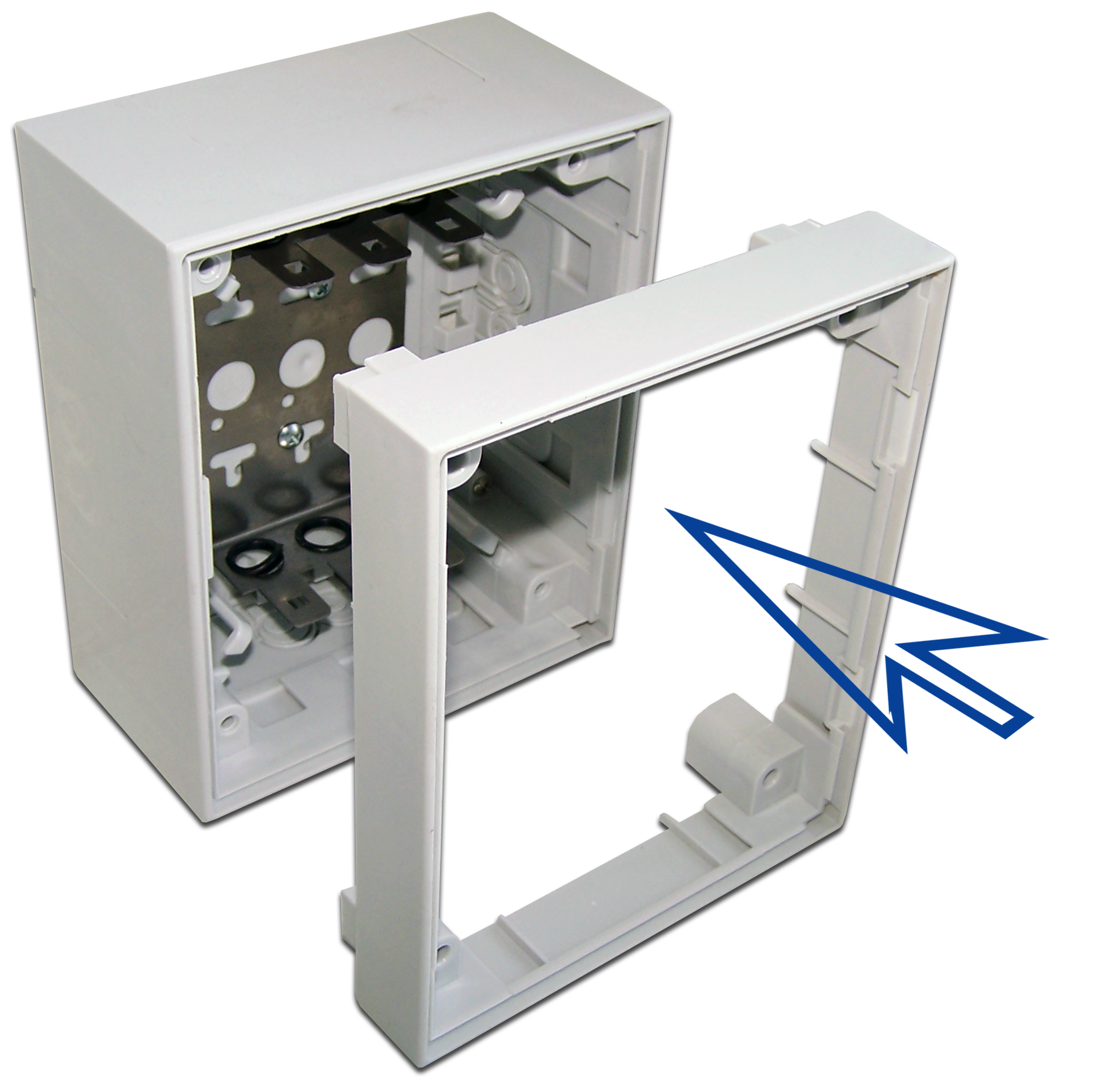

2) Place the spacer on the
front of the box |
|
|

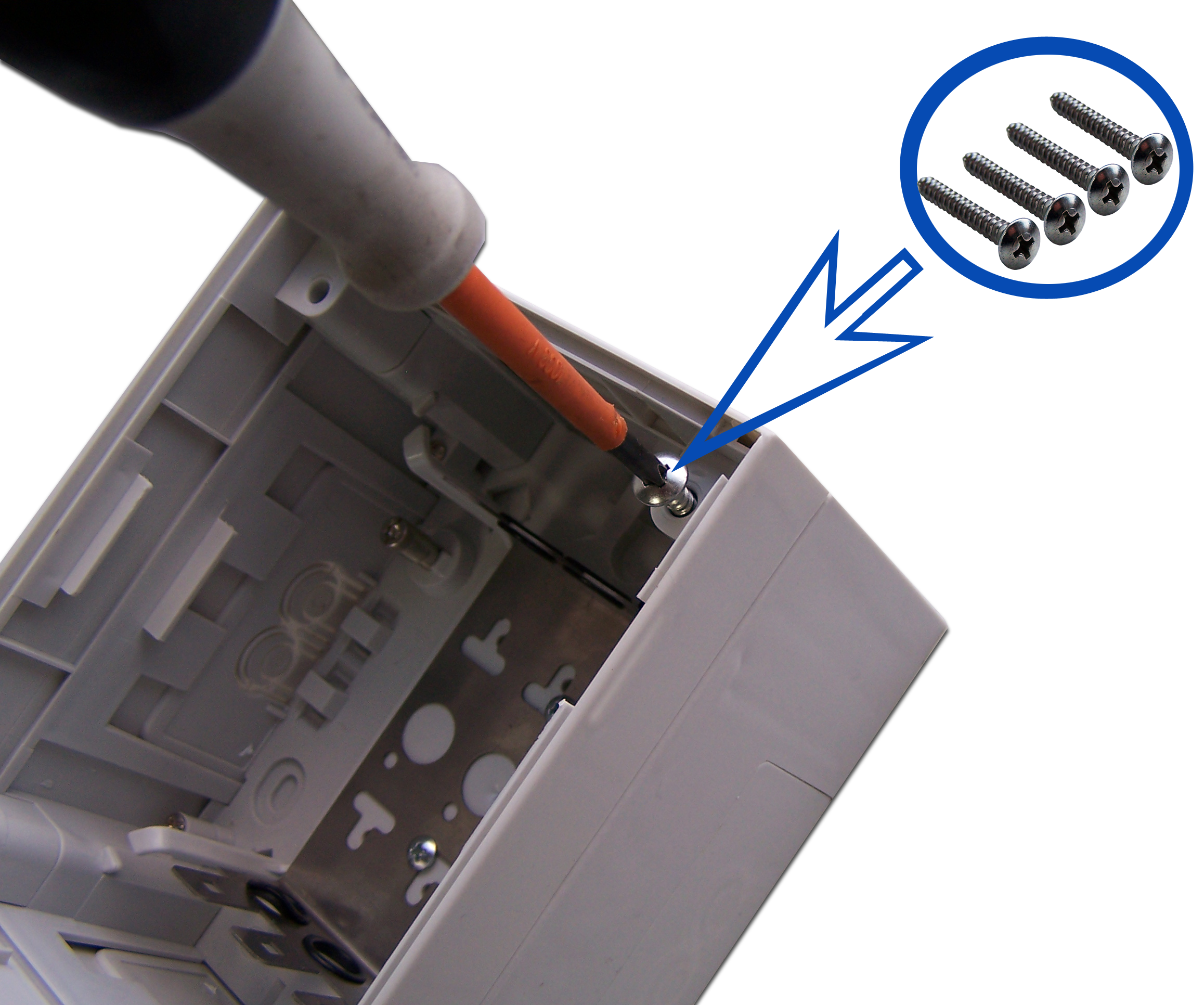

3) Fix the spacer to the
body with 4 screws |
|
|

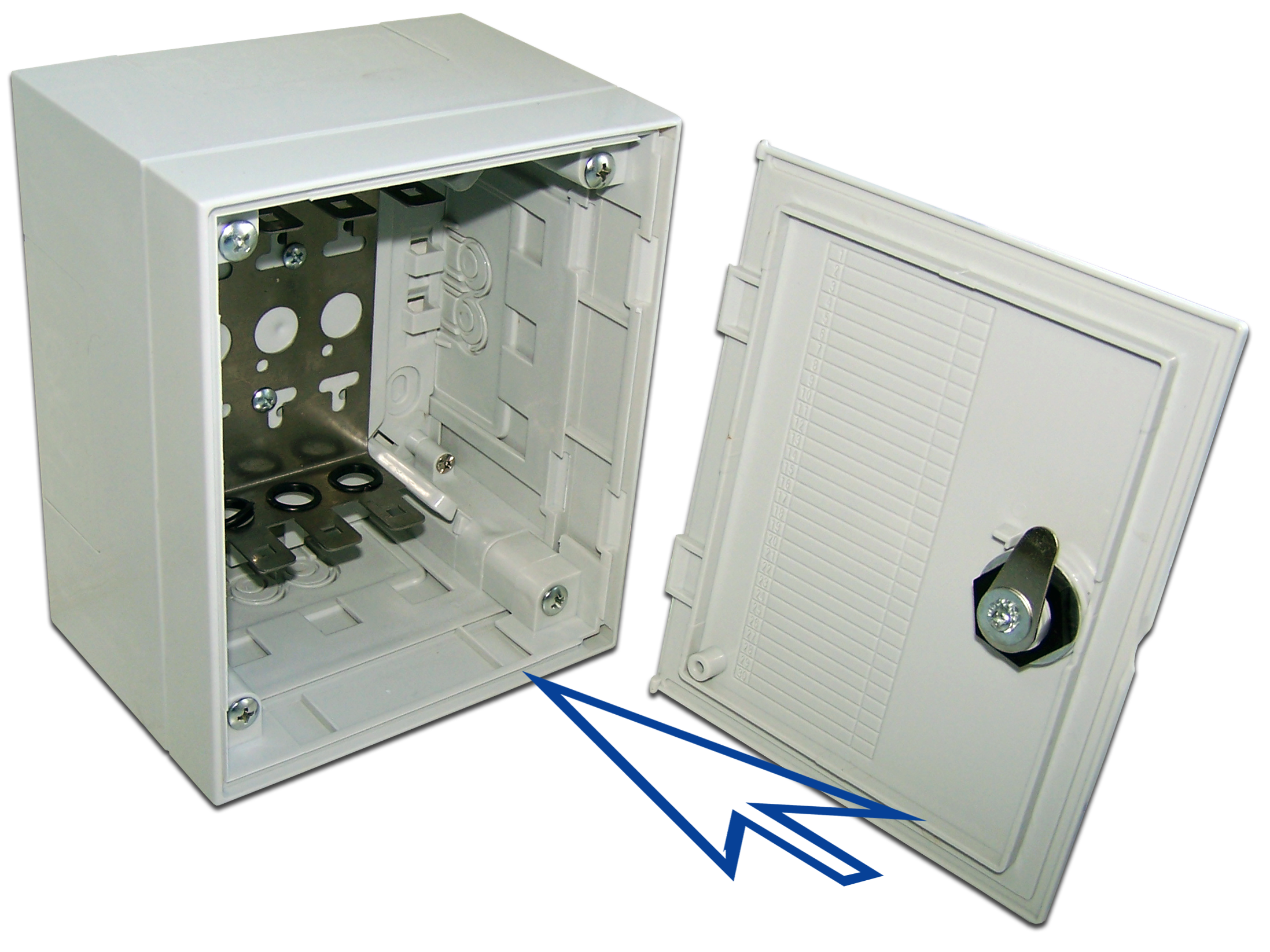

4) Install the door in the
grooves of the spacer |
|
|

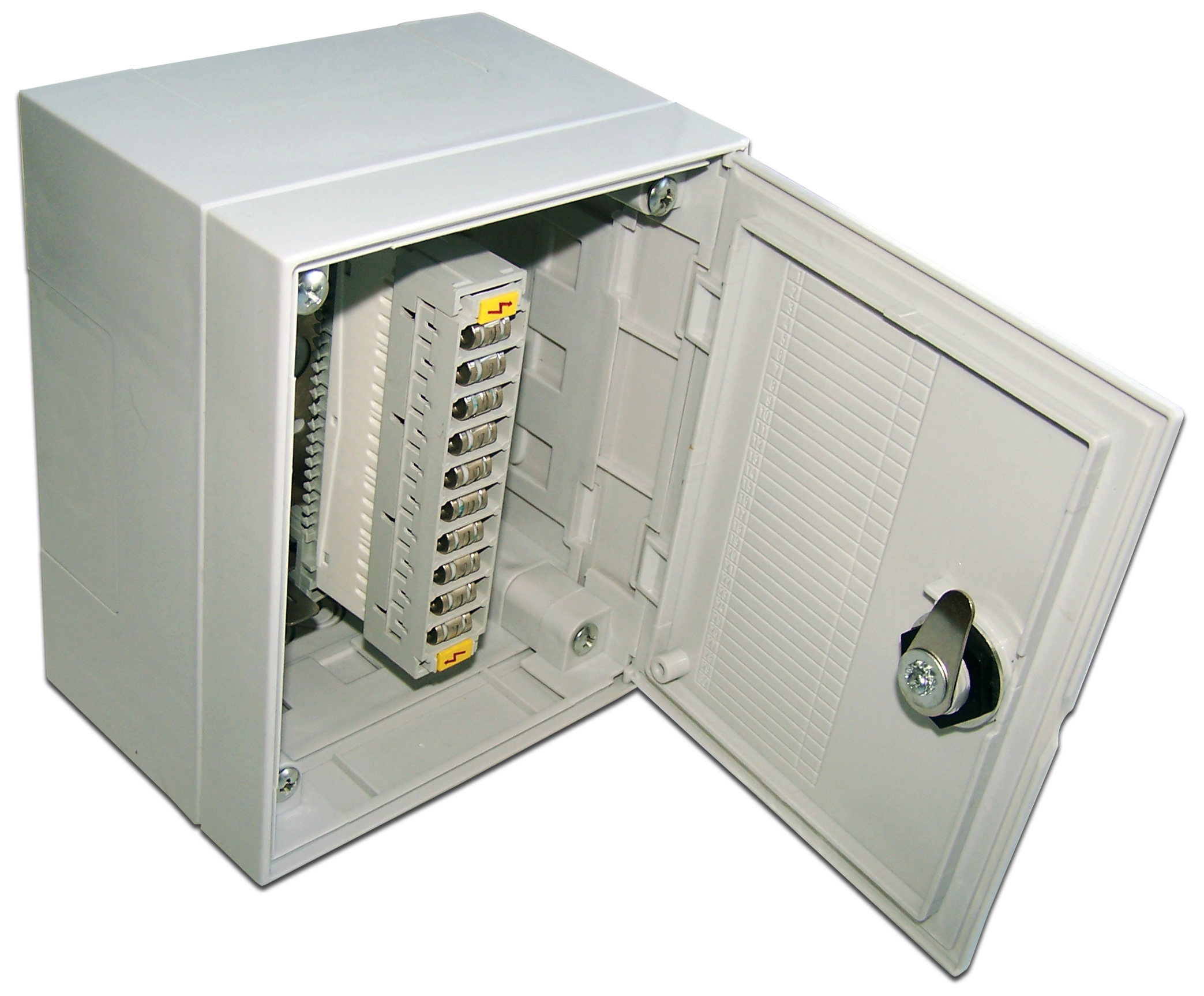

5) Box with installed spacer |
|
