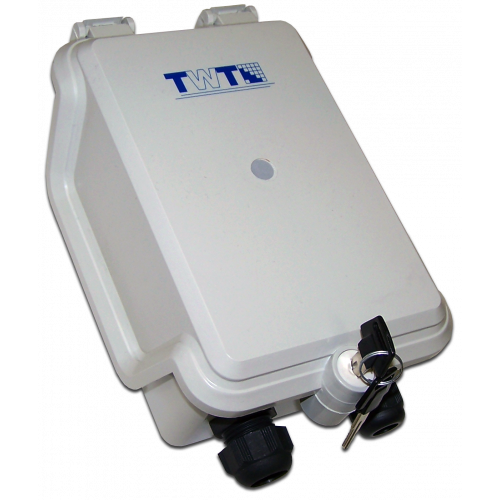

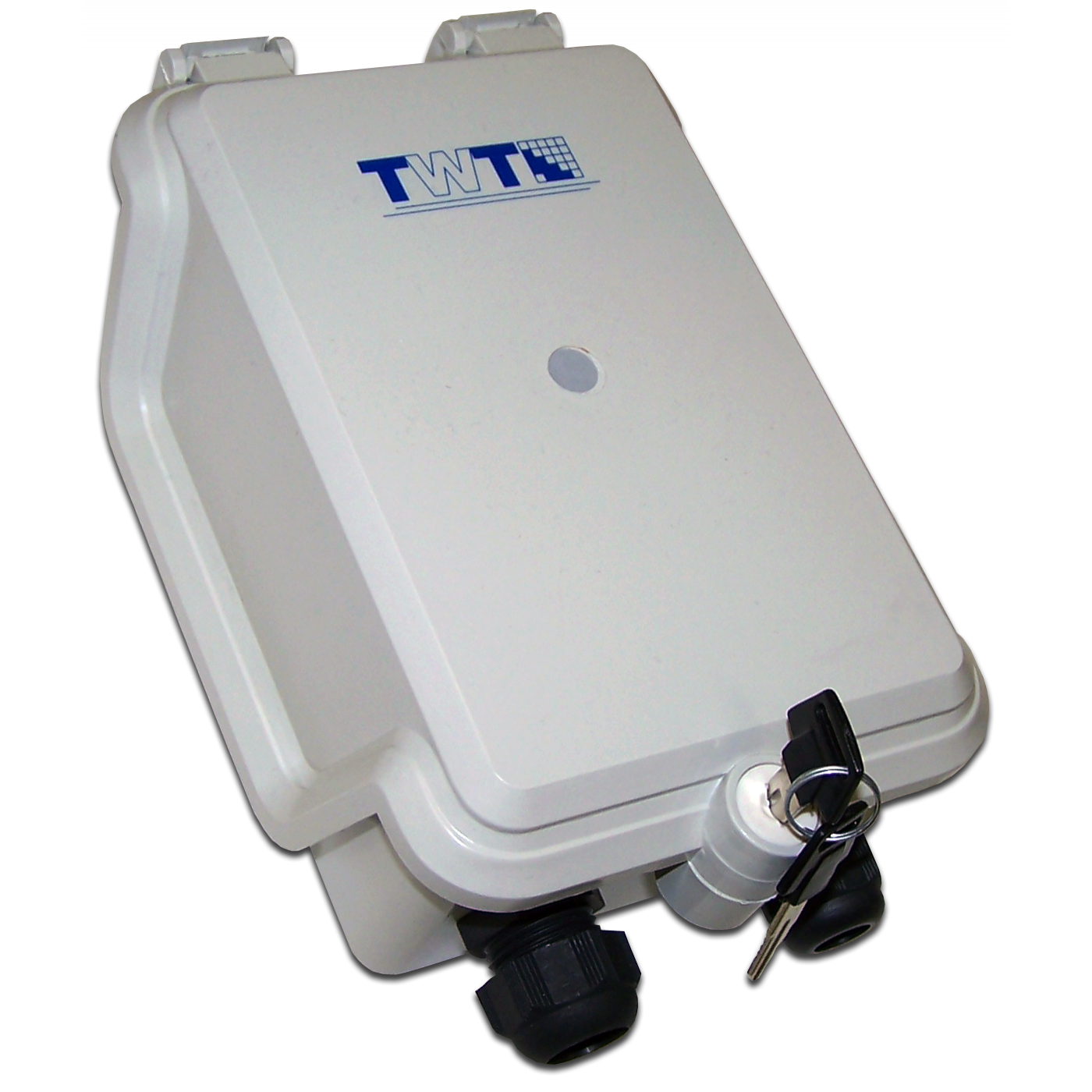

Outdoor distribution box for 3 connection modules, 30 pairs

Outdoor distribution box for 3 connection modules, 30 pairs
Outdoor distribution box for 3 connection modules, 30 pairs
Outdoor distribution box for 3 connection modules, 30 pairs
TWT-DB10-3P/OUT

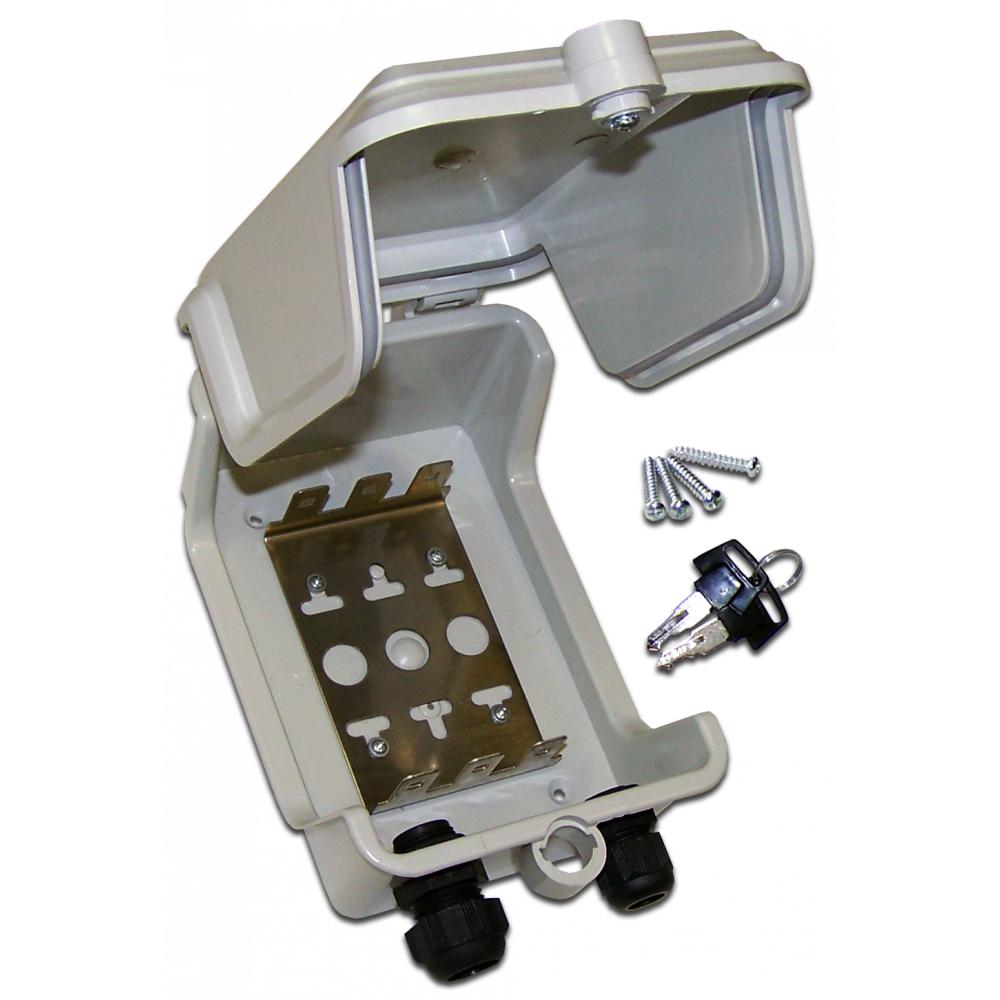

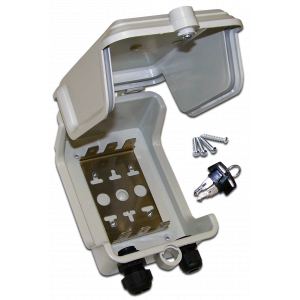

The outdoor distribution boxes are designed for outdoor installation and can be completed with three 10-pair TWT-LSA10-xxx connection modules (modules is supplied separately). Backmount frames for modules are installed in the boxes. The lid is equipped with a key lock. Cable entry is on one side through cable glands with pressure sealing.

Protection rating is IP55.

Made of ABS.

Color is light grey.

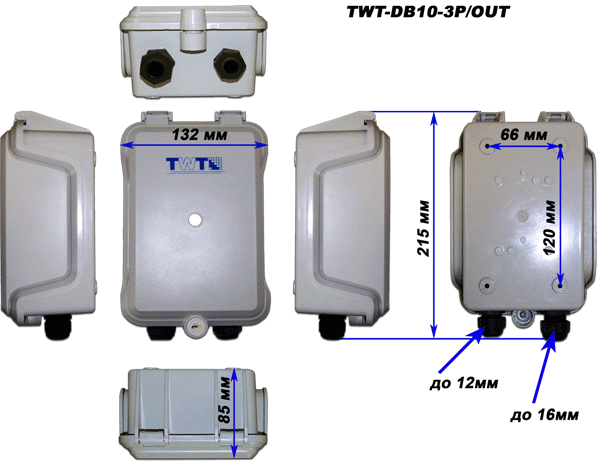

Has two pressure seal glands: from 6 to 12 mm and from 8 to 16 mm

Operating temperature range: -40 to +70 °С

Model range (1)

  • Code Code / Name Name Количество
  • TWT-DB10-3P/OUT
    Outdoor distribution box for 3 connection modules, 30 pairs
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
