Outdoor distribution box for 10 connection modules, 100 pairs

Outdoor distribution box for 10 connection modules, 100 pairs
Outdoor distribution box for 10 connection modules, 100 pairs
Outdoor distribution box for 10 connection modules, 100 pairs

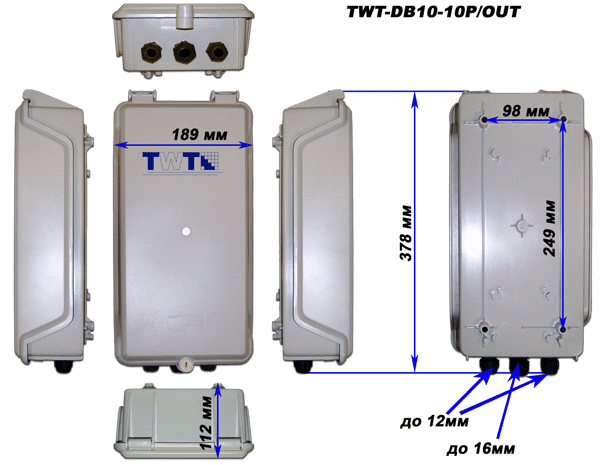

TWT-DB10-10P/OUT

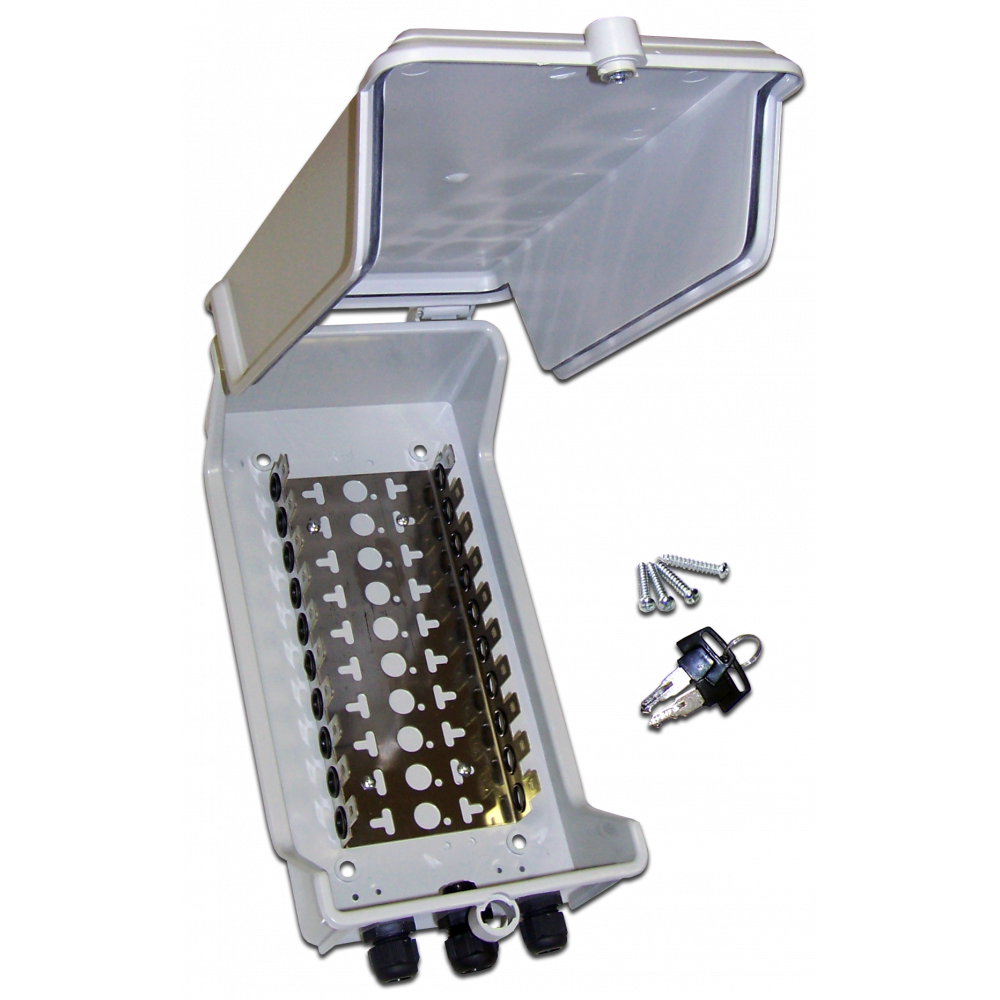

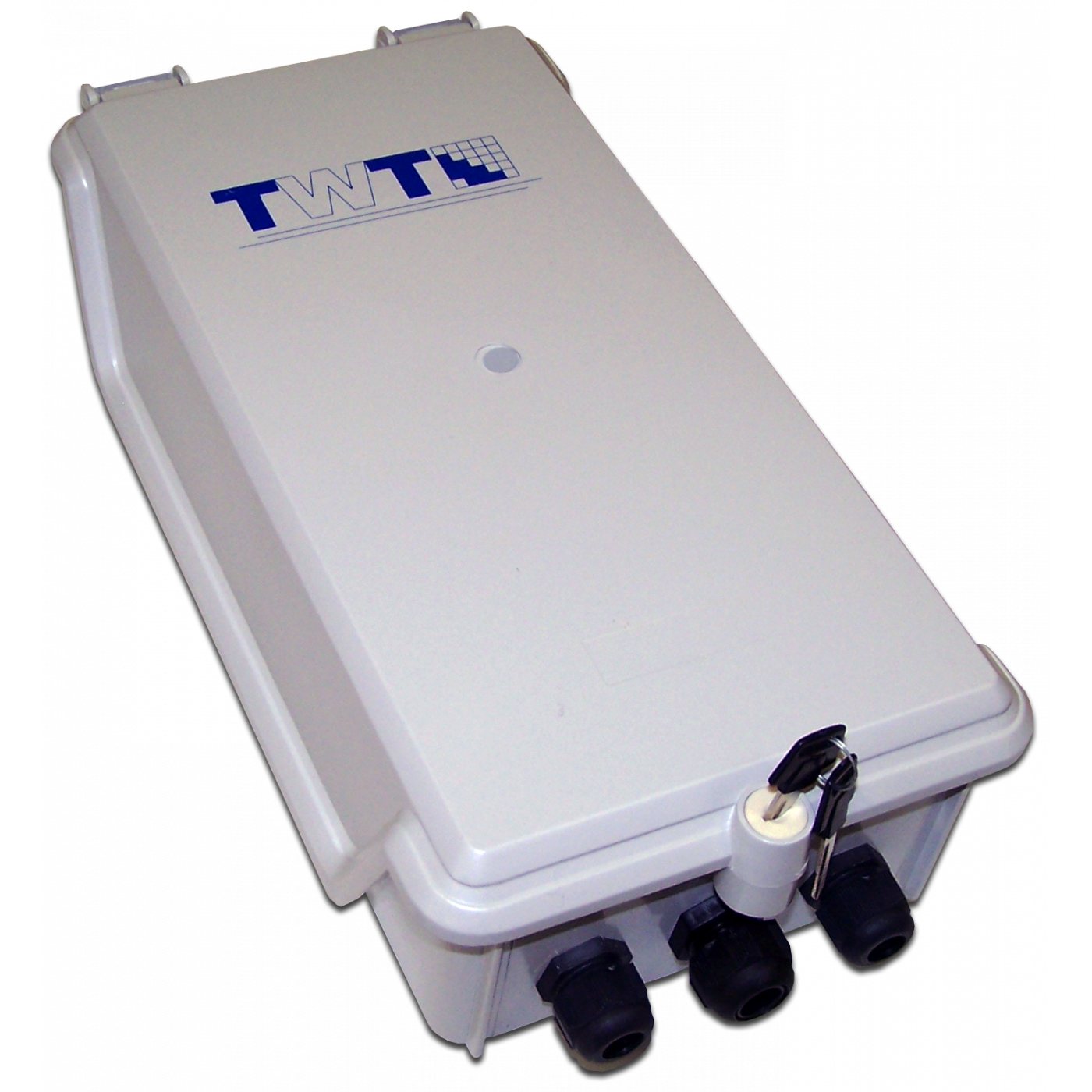

The outdoor distribution boxes are designed for outdoor installation and can be completed with ten 10-pair TWT-LSA10-xxx connection modules (modules is supplied separately). Backmount frames for modules are installed in the boxes. The lid is equipped with a key lock. Cable entry is on one side through cable glands with pressure seal.

Protection rating is IP55.

Made of ABS.

Has three pressure seal glands: two of from 6 to 12 mm and one of from 8 to 16 mm

Color is light grey.

Operating temperature range: -40 до +70 °С


Model range (1)

  • Code Code / Name Name Количество
  • TWT-DB10-10P/OUT
    Outdoor distribution box for 10 connection modules, 100 pairs
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
