Reinforced shelf for wall enclosures

Reinforced shelf for wall enclosures
Reinforced shelf for wall enclosures
Reinforced shelf for wall enclosures
TWT-CBW-S4-xxx

The reinforced shelf is designed to accommodate equipment without mounting brackets in 19" wall enclosures.

Shelf’s perforation provides ventilation for the equipment placed on it.

The shelf has a 4-post mounting (on four mounting rails) with lateral fastening.

Maximum load is 60 kg.

The package includes shelf and mounting screws.

Made of steel.

Powder coating painting.

Color is gray.

Model range (3)

  • Code Code / Name Name Количество
  • TWT-CBW-S4-4/60

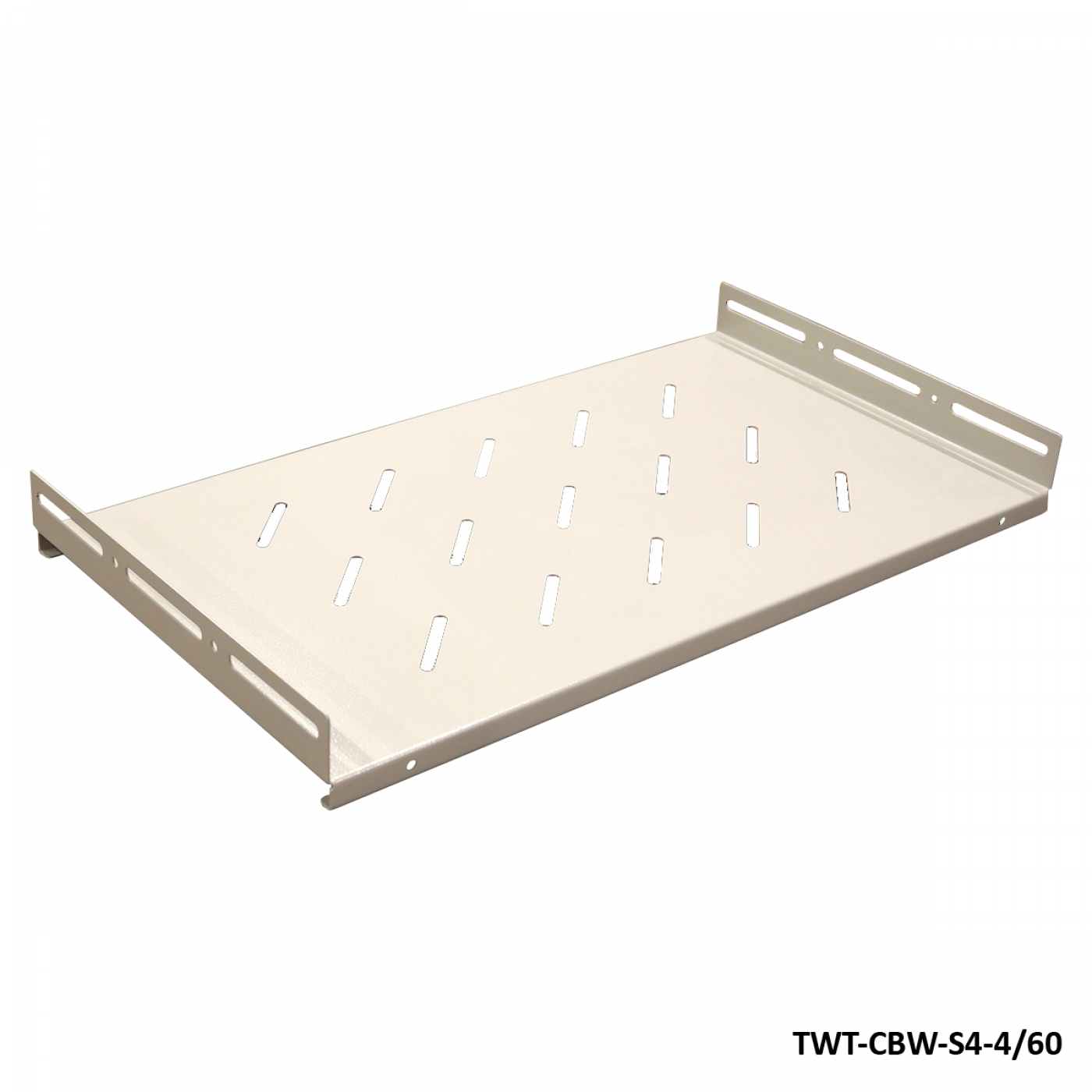

    Shelf for 450 mm deep wall enclosures, 4-post mount, 60 kg acceptable load
  • TWT-CBW-S4-6/60
    Shelf for 600 mm deep wall enclosures, 4-post mount, 60 kg acceptable load
  • TWT-CBW-S4-8/60

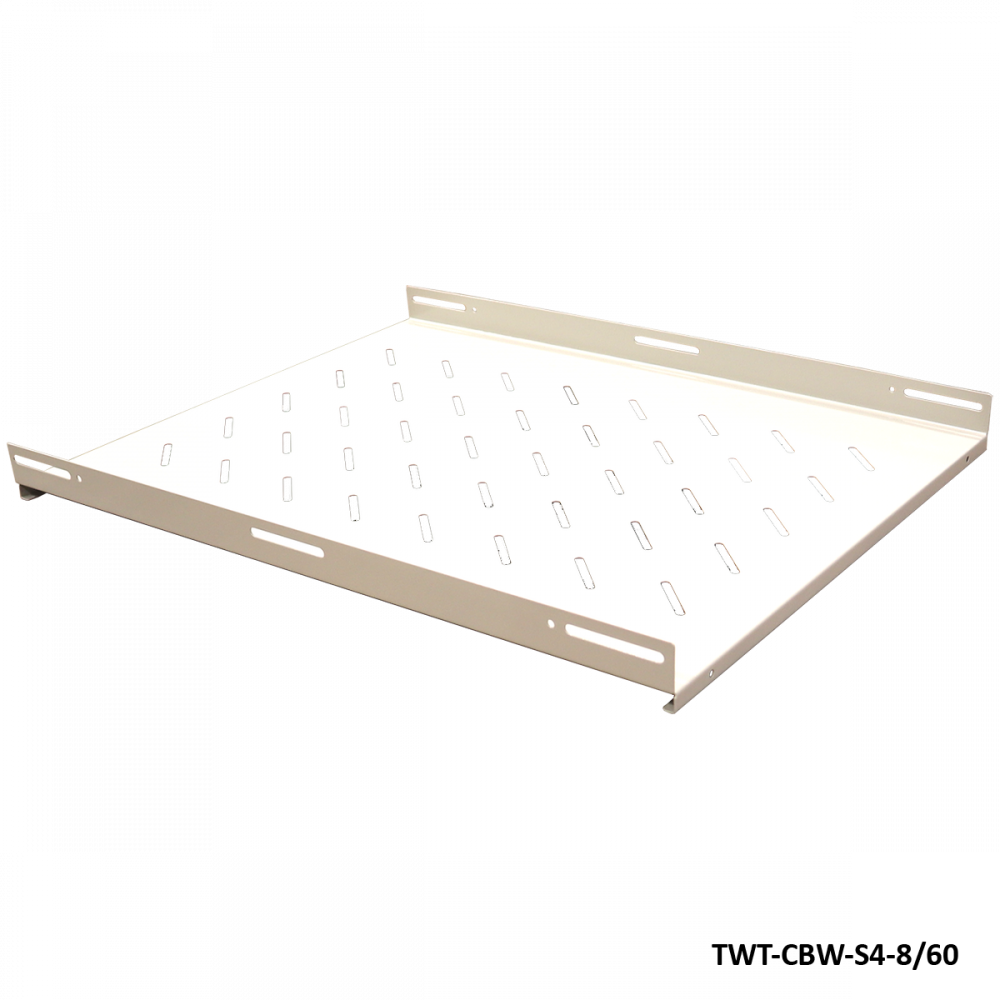

    Shelf for 800 mm deep wall enclosures, 4-post mount, 60 kg acceptable load
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
