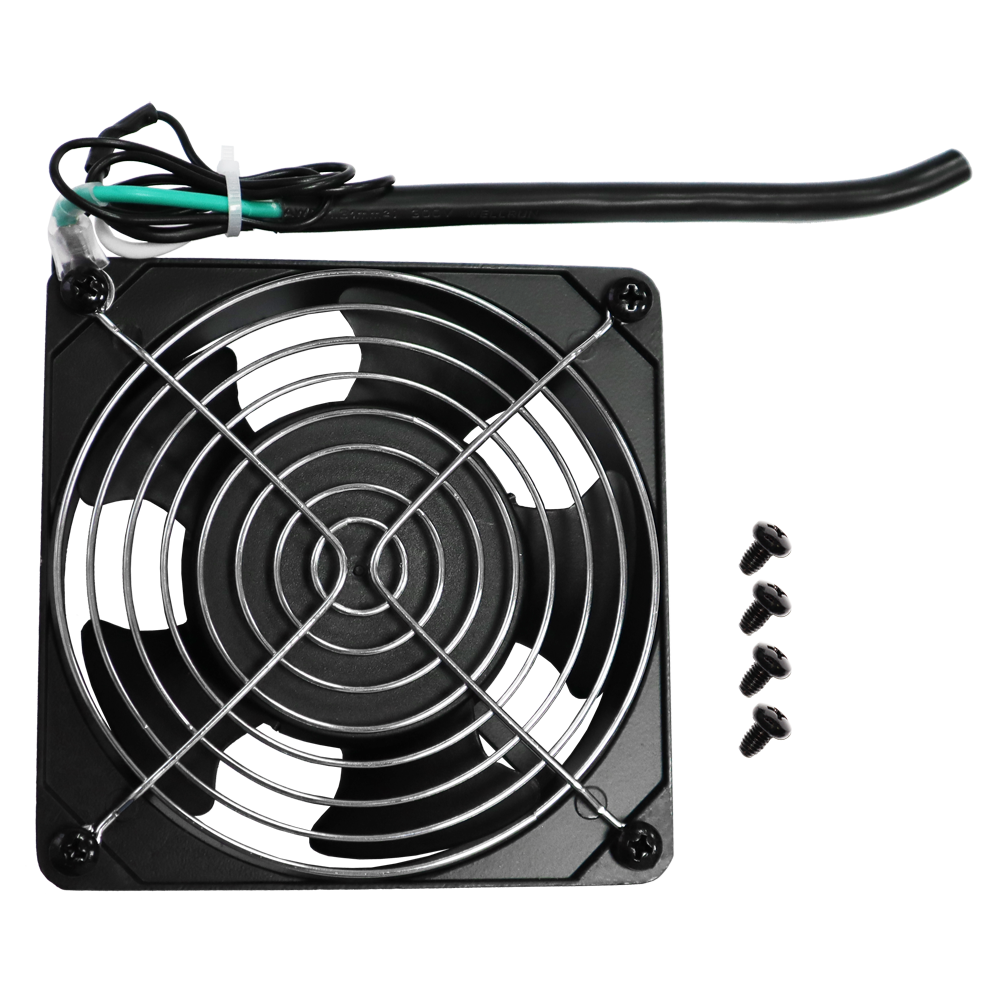

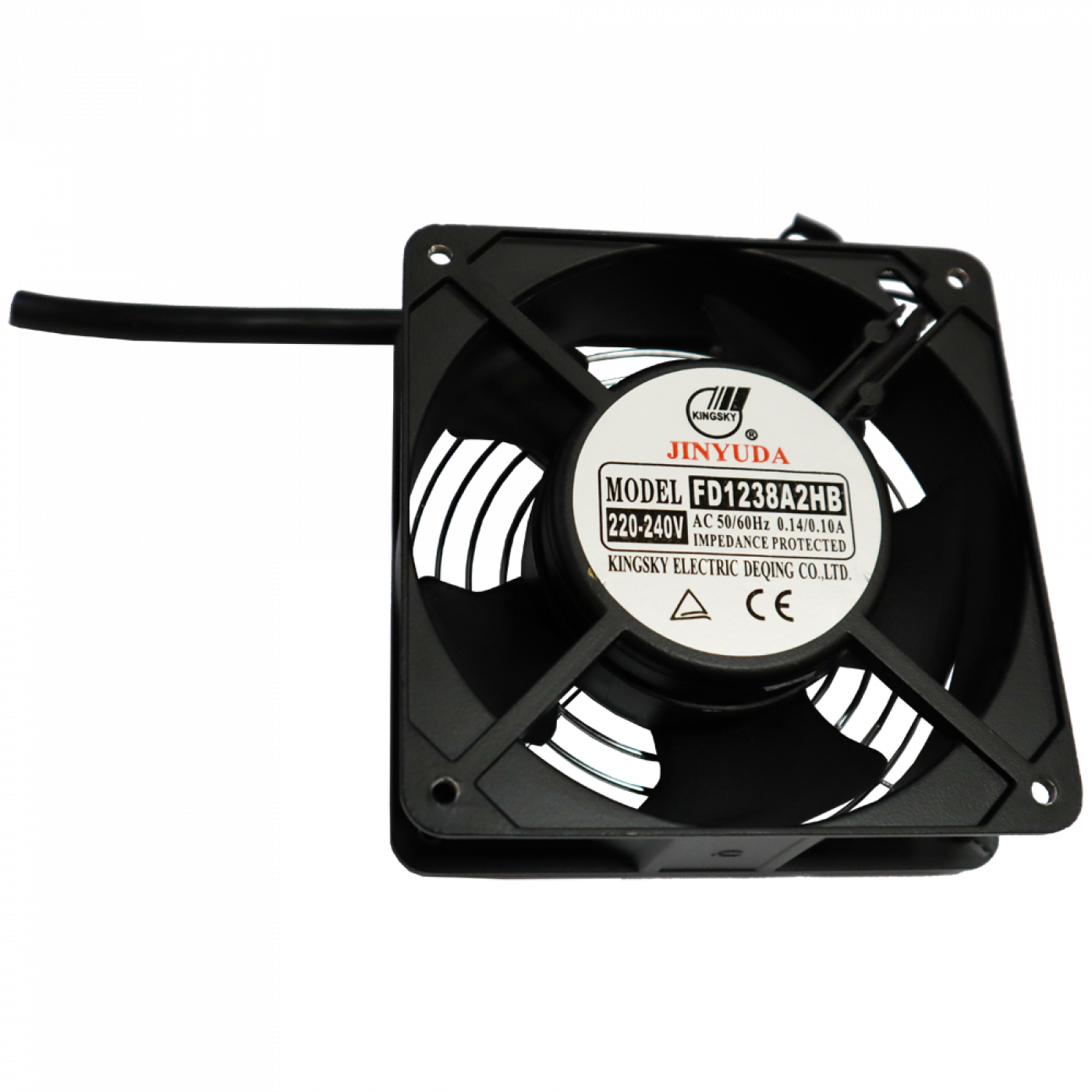

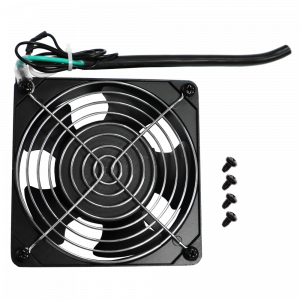

Fan with bearing for wall enclosures

The roof fan is designed for installation on the top panel (roof) of “Pro” series wall-mounted enclosures for forced cooling of active equipment placed in the housing. Can be used as a spare part for the fan units of “Eco” and “Business” series cabinets.

The fan has rolling bearings.

Power cord does not include in the package. To connect the fans to power source, use the electrical screw terminal blocks and a cord with a plug of the required length.

Input voltage: 220 - 240V AC.

Power consumption: 22 – 24 W.

Performance (airflow): 119 - 143 m3/h.

Rotational speed: 2100 – 2400 rpm.

Noise level: 35 – 39 dBA.

Maximal operating temperature: up to 85°С.

MTBF: 3 – 5 years.

Color is black (RAL 9004).
