Brush cable entry for wall enclosures, gray

Brush cable entry for wall enclosures, gray
Brush cable entry for wall enclosures, gray

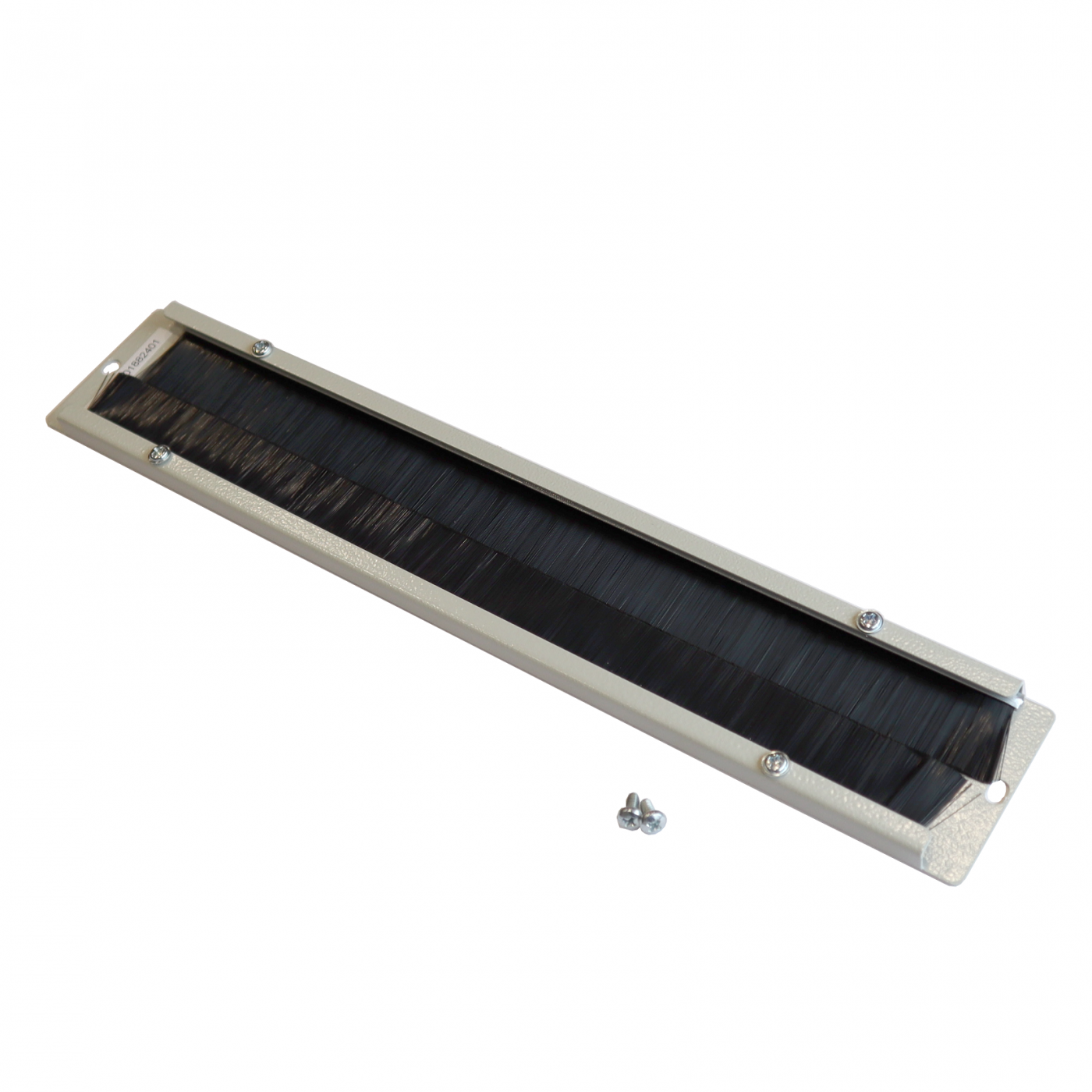

TWT-CBW-BP

The brush cable entry panel is designed for installation in the bottom and the top panels of the TWT wall enclosure of the “Pro” series. The holes for brush entry panel are in the top and bottom panels of the cabinet.

The use of brush entries helps to protect the equipment in the cabinet from the dust and dirt, reduces the risk of cable damage on the edge of the entry hole, provides partial fastening of the cable routed into the cabinet.

Build as metal frame and PVC bristles.

Color is gray (RAL 7035).

Dimensions:

  • External dimensions: 360х63х10 mm
  • Mounting holes distance: 350 mm
  • Cable entry hole dimensions: 45х320 mm

Model range (1)

  • Code Code / Name Name Количество
  • TWT-CBW-BP
    Brush cable entry for wall enclosures, gray
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
