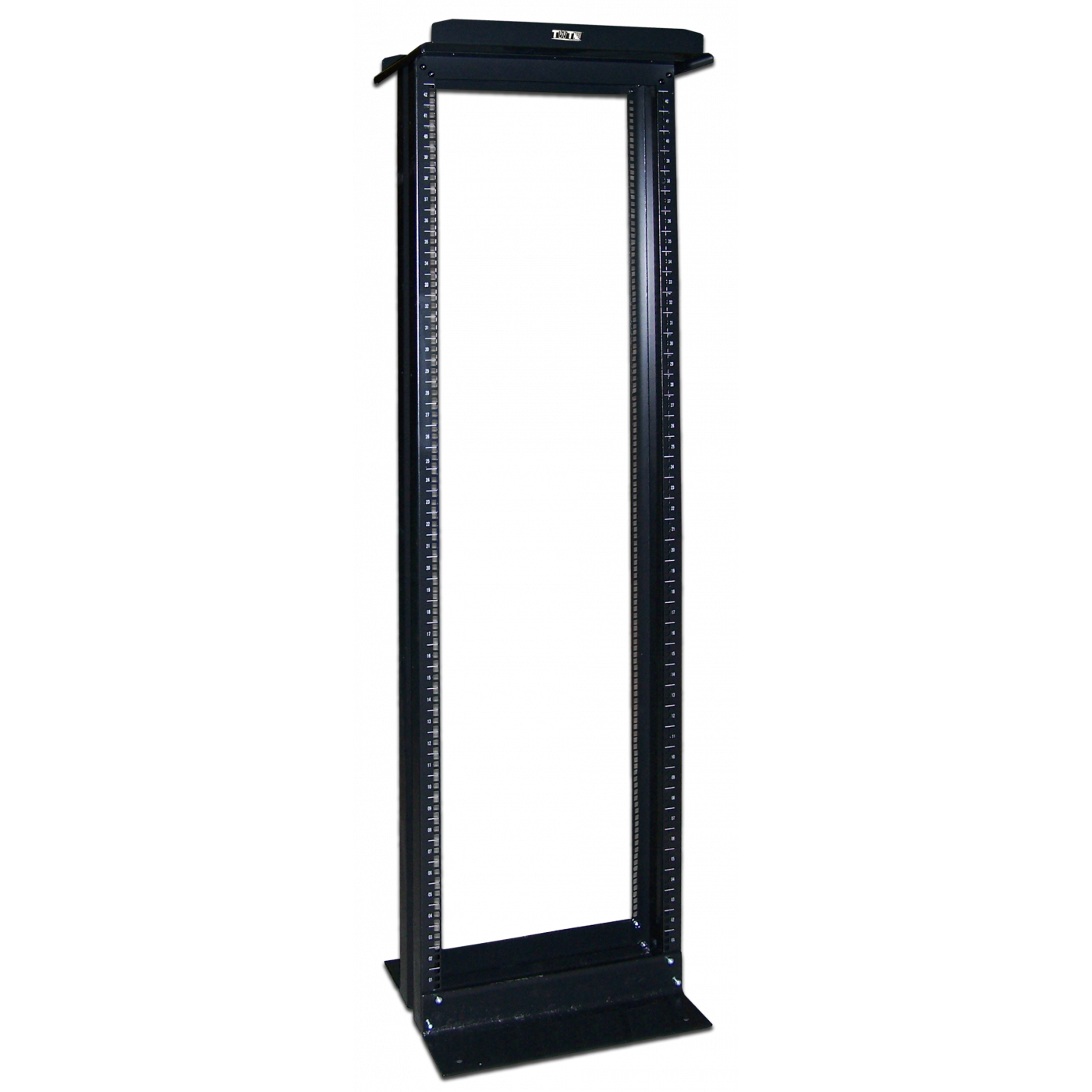

19" Two post rack, black
Floor telecommunications rack is used for mounting network and telecommunications 19" equipment and two post mount (cantilevered) shelves.
The base of the rack has holes for fasten to the floor with anchors. Vertical posts have RMU markings starting from the bottom.
Single racks can be combined into a unitary construct using intermediate cable managers. The last in row racks can be equipped with side cable managers with additional side cover.
The ability to combine several racks in one row, convenient access to installed equipment from both sides, increased capacity of intermediate and side cable managers allows the use of mounting racks for compact and efficient placement of network passive equipment in server rooms and Data Centers (DCs).
The two post rack is supplied unassembled. Packaged in 2 packs.
Height options - 42U and 47U.
The maximum load per section is 300 kg.
Powder coating painting.
Color is black (RAL 9004).
The rack complies with international standards ANSI/EIA RS-310-D, IEC 297-2, DIN 41494-1, DIN 41494-7.

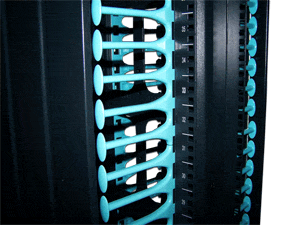

| Rack fragment with RMU marks and cable manager | Tworacks are bayed with intermediate and two side cable managers |
 |  |
Out ofproduction, stock available
