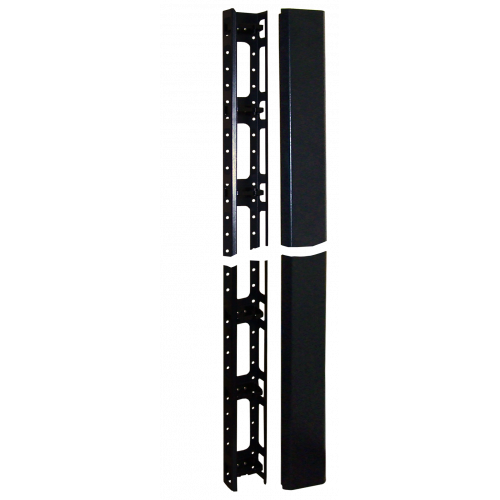

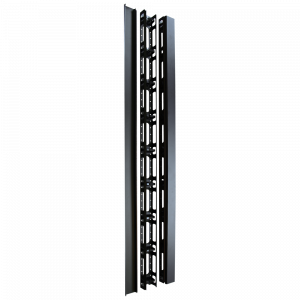

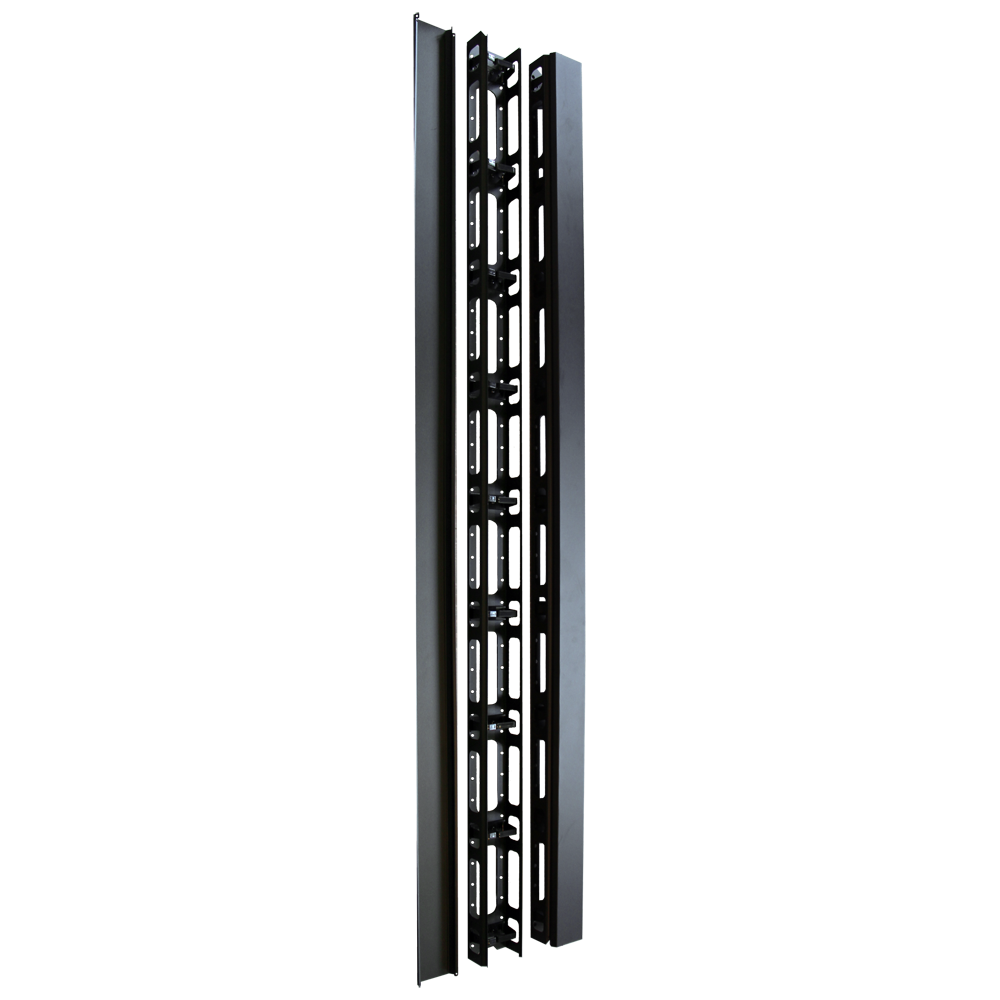

Vertical cable manager for Business cabinets, metal, 2 pcs., black

Vertical cable manager for Business cabinets, metal, 2 pcs., black
Vertical cable manager for Business cabinets, metal, 2 pcs., black
Vertical cable manager for Business cabinets, metal, 2 pcs., black
Vertical cable manager for Business cabinets, metal, 2 pcs., black
TWT-CBB-ORGxxU
The vertical cable manager is designed to organize vertical cable runs in 800 mm wide cabinets of the “Business” series.

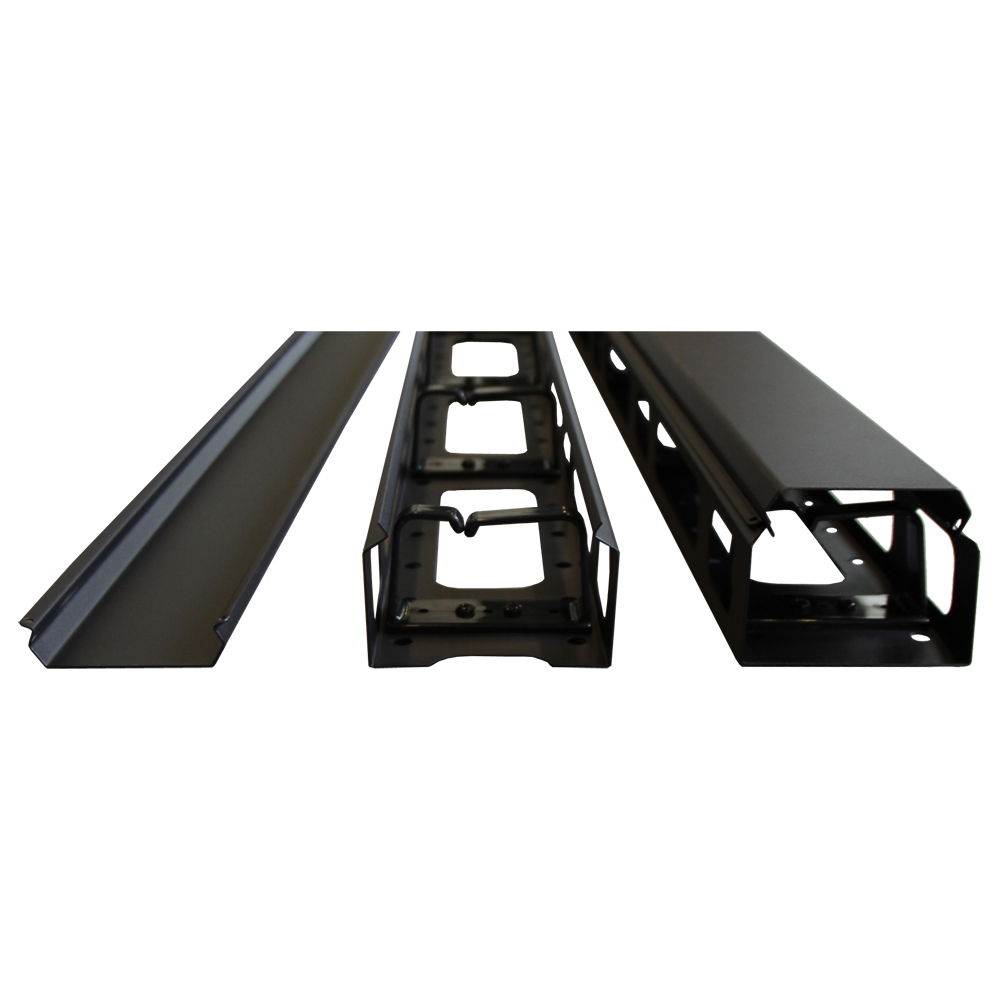

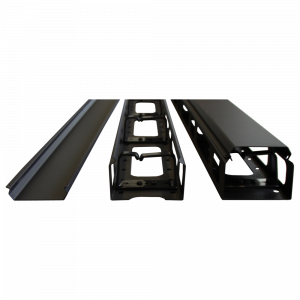

The cable manager has cable slots on the back and sides. The front part is equipped with a metal snap-on removable cover.
There are additional TWT-CB-RGH-2U plastic rings inside the manager.

The manager can be installed on the side surfaces of mounting spacers (usual installation) or on the cabinet load-bearing frame between the door and 19” rails.
It is recommended to use standard M6 screws with self-locking nuts for fasten the cable managers.
Each cable manager is supplied in an individual box.
Made of metal.
Powder coating painting.
Color is black (RAL 9004).

Installing the cable managerFastened cable manager
Установка органайзераФиксация органайзера

Model range (2)

  • Code Code / Name Name Количество
  • TWT-CBB-ORG42U
    42U vertical cable manager for 800 mm wide Business cabinets, metal, 2 pcs., black
  • TWT-CBB-ORG47U
    47U vertical cable manager for 800 mm wide Business cabinets, metal, 2 pcs., black
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
