Light-emitting diode (LED) 19" luminaire with magnetic mount, 3,6W, 3 m power cord
Light-emitting diode (LED) 19" luminaire with magnetic mount, 3,6W, 3 m power cord
TWT-CB-LAMP/LED-M

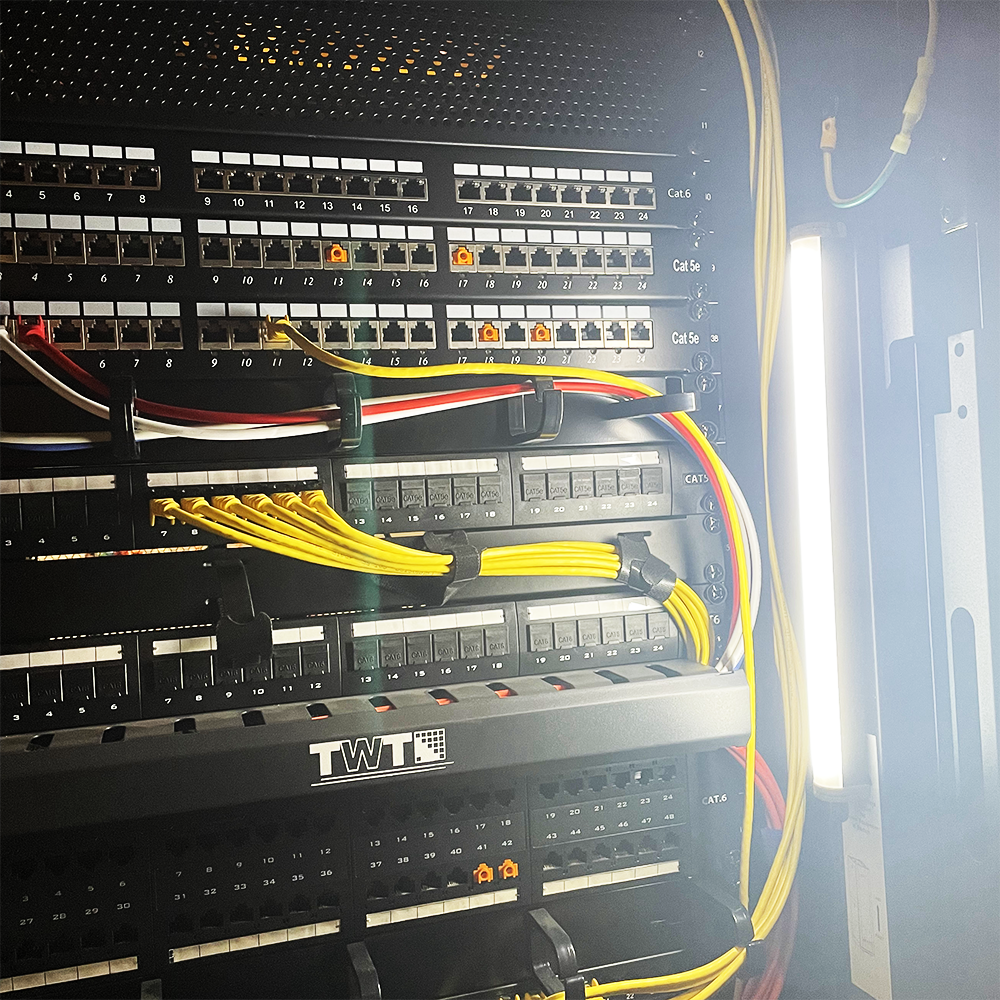

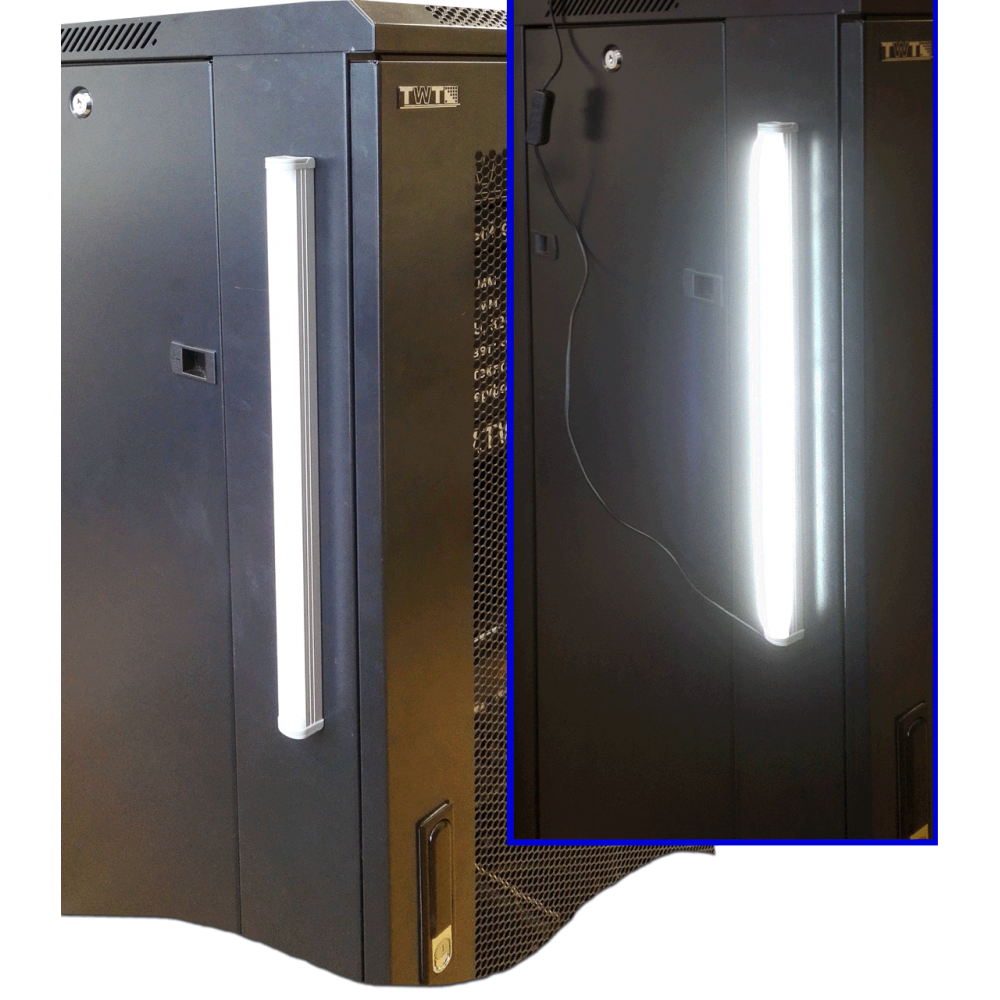

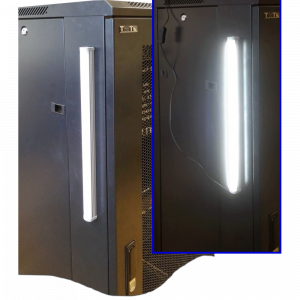

The LED luminaire is designed for installation inside or outside the telecommunication cabinet. It has built-in magnets for mounting on a suitable metal flat surface. When using the supplied “S” hook, the luminaire can be hanged if desired.

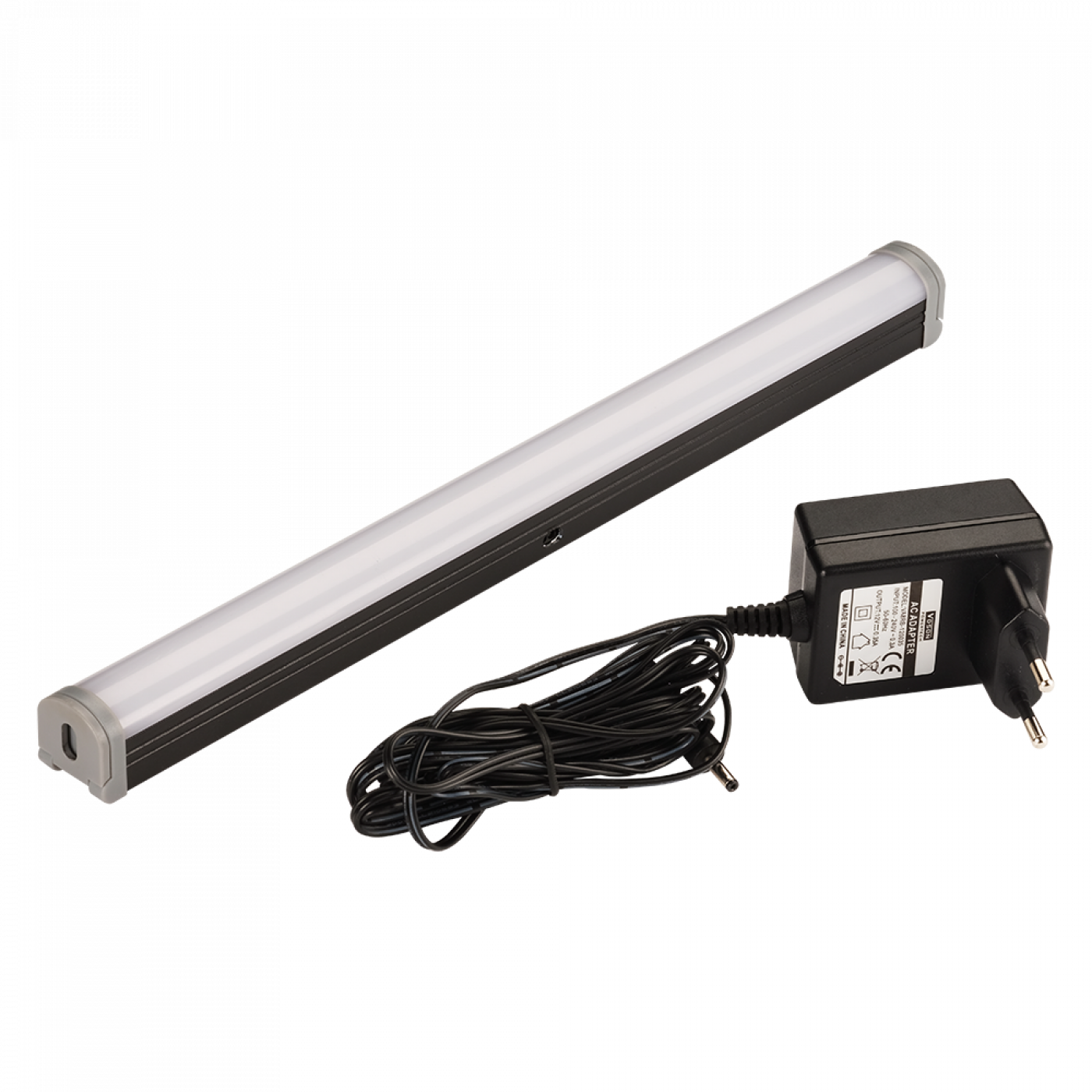

The package includes:
- luminaire,
- AC/DC power supply (220V/5V) with rocker switch on 3m power cord,
- hanging hook,
Body materials are PVC and duralumin.
| Specifications | Description | Value |
| LED-luminaire | Rated current (µA) | 300 |
| Power consumption (Watt) | 3,6 ±5% | |
| Luminous flux (Lumen) | 180 | |
| Number of LEDs (pcs) | 30 | |
| Beam angle (degrees) | 120 | |
| MTBF (hours) | 30000 | |
| Color temperature (K) | 6000 - 6500 | |
| Diffuser color | Milky white | |
| Body color | Silver gray | |
| Dimensions (Width х Height х Depth, mm) | 300,0 х 23,4 х 24,5 | |
| Power supply | Input voltage (Volt, AC) | 110-240 ±10% |
| AC frequency (Herz) | 50 / 60 | |
| Output voltage (Volt, DC) | 12 | |
| Rated output current (µA DC) | 300 | |
| Power cord length (meters) | 3 | |
| Cord connector | Ø 3,5 mm | |
| Power switch | - | |
| Environment | Operating temperature (°С) | 0°С - 55°С |
| Operating humidity (%) | 10% ~ 90% | |
| Storage temperature (°С) | -20°С ~ 70°С | |
| Storage humidity (%) | 10% ~ 90% |
