19" vertical fan unit without thermostat

19" vertical fan unit without thermostat
19" vertical fan unit without thermostat
19" vertical fan unit without thermostat
TWT-CB-FANVx-RACK

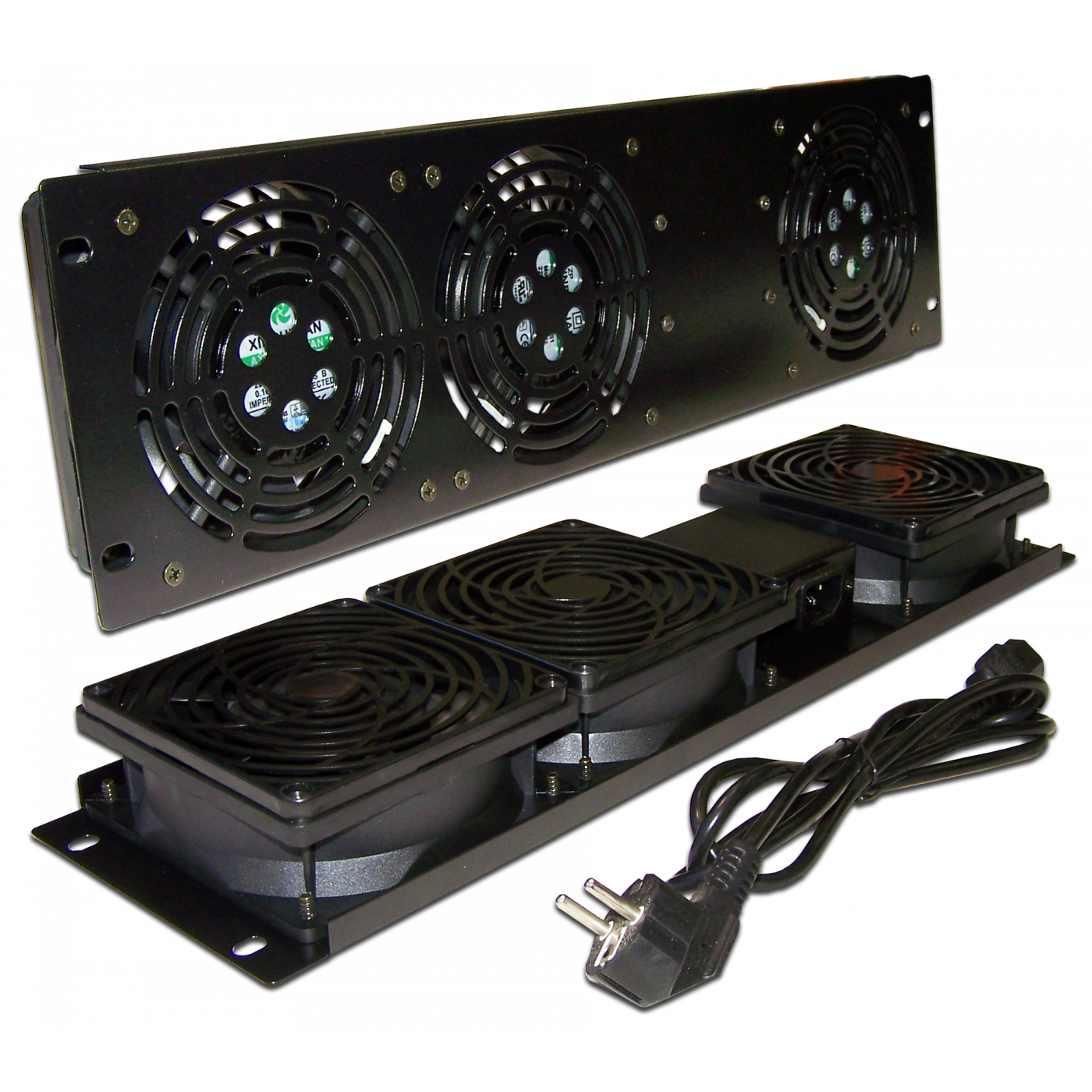

19" fan unit is designed for forced removal of hot air from the telecommunications cabinet.

Installs on 19" mounting rails (usually the rear pair).

TWT-CBW-FAN1-BB fans are installed in the unit as a working element. Units are available with two or three fans.

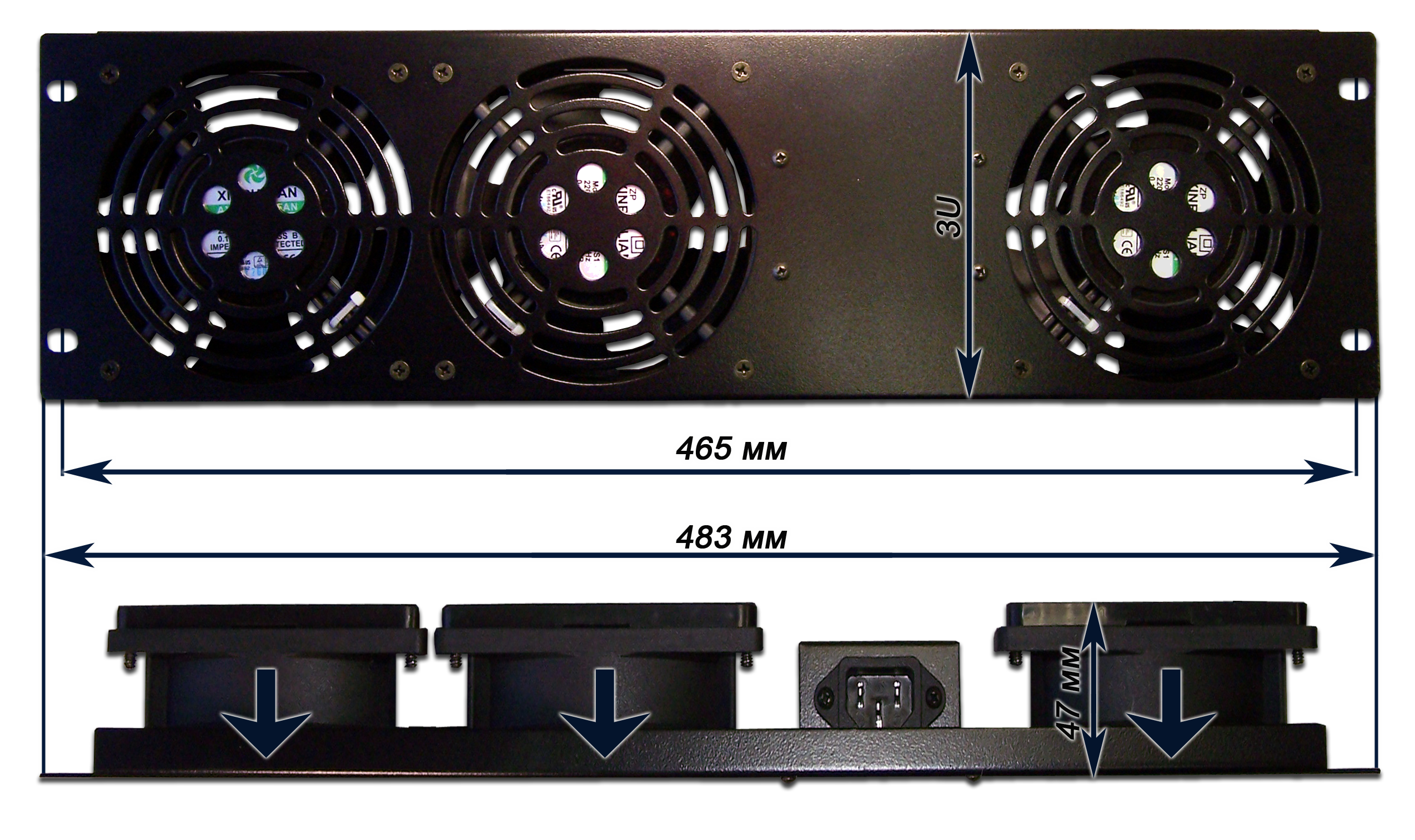

Occupies 3 rack units.

Made of 1.2 mm thick cold rolled steel.

Powder coating painting.

Color is black (RAL 9004).

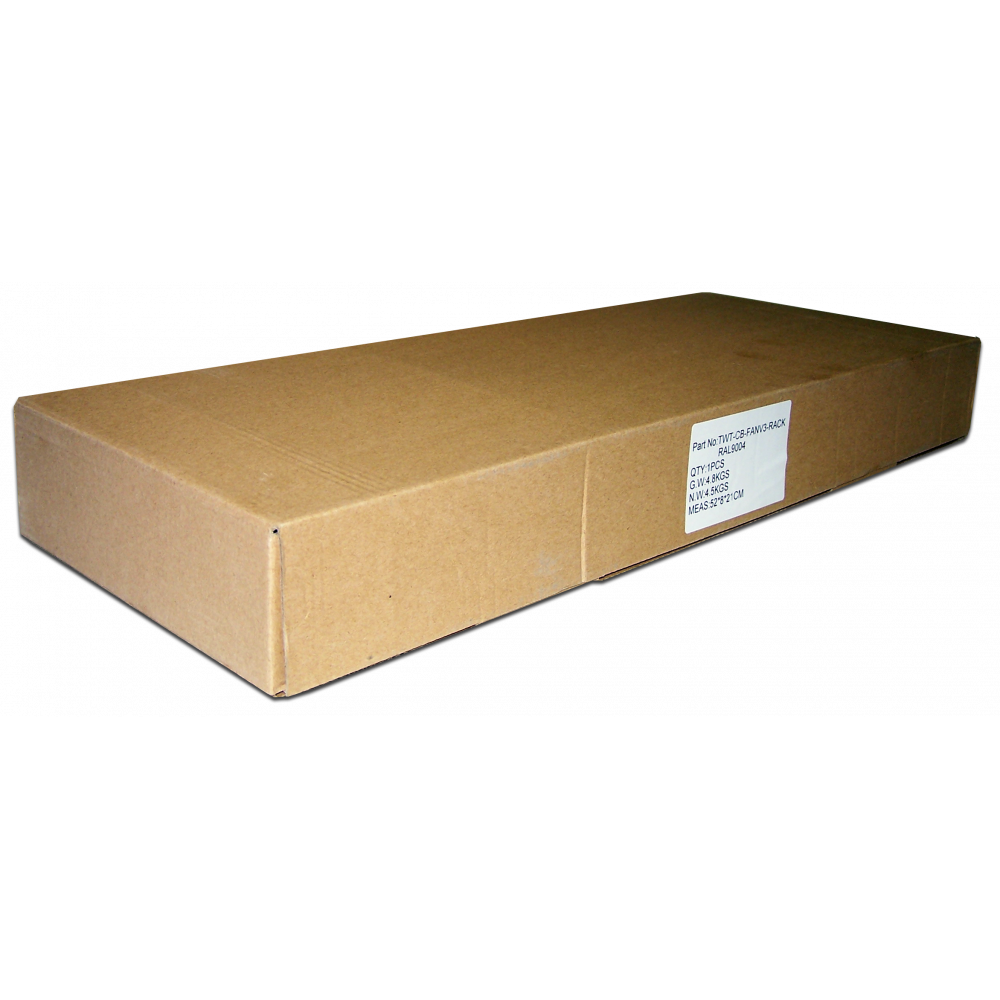

Package includes:

  • fan unit
  • power cord with Schuko plug
  • mounting set
  • user manual.

Specifications

Description
 Value
Supply voltage 220 V ±10%
AC Frequency 50 Hz
Ambient operating temperature from -5 to +50°С

Model range (2)

  • Code Code / Name Name Количество
  • TWT-CB-FANV2-RACK
    19" vertical 2-fan unit without thermostat, 3U
  • TWT-CB-FANV3-RACK
    19" vertical 3-fan unit without thermostat, 3U
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
