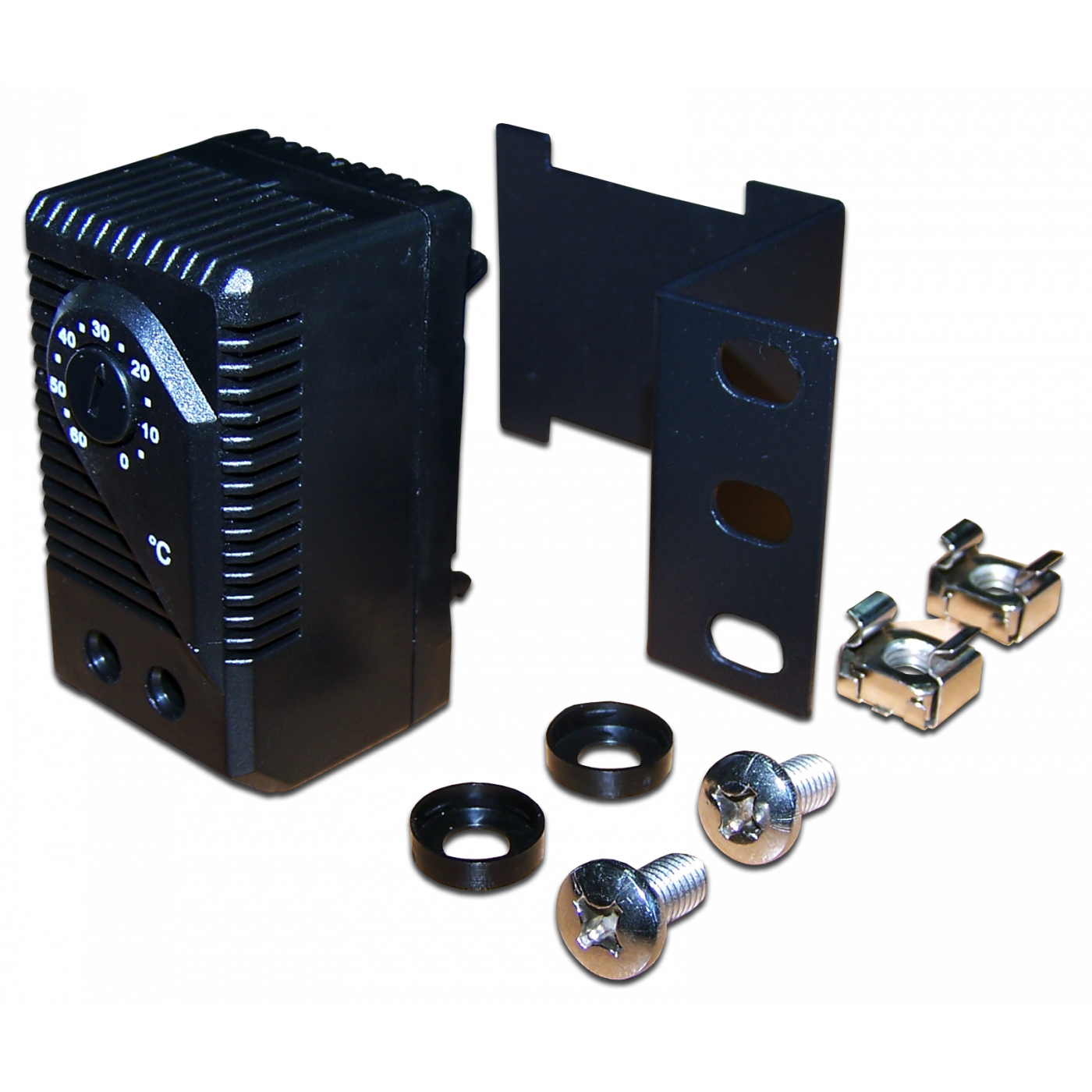

Fan control thermostat
-500x500.png)
-1400x1400.png)
Fan control thermostat
TWT-CB-FAN-THR
The thermostat is designed to regulate the temperature inside the telecommunication cabinet.
The temperature threshold is set by the user with the rotary knob on the thermostat body.
The temperature sensor is inside the body.

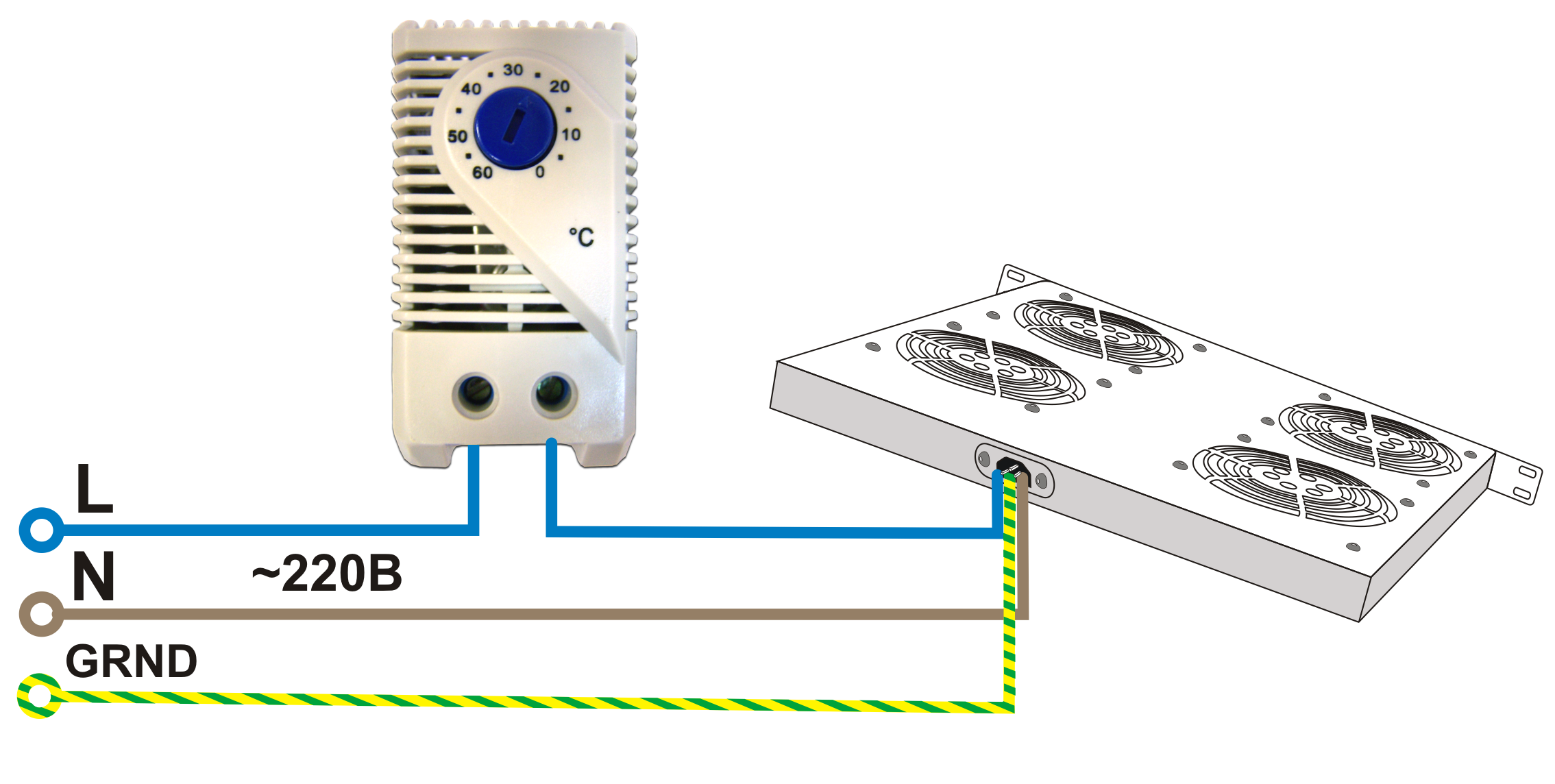

The thermostat must be connected in a break of the power supply line of the fan unit (tray).
The device is installed in a telecommunications cabinet on a 1U bracket included in the package.
Specifications
| Description | Value |
| Supply voltage | 220 V ±10% |
| AC Frequency | 50 Hz |
| Relative humidity | 20%-85% |
| Temperature threshold limits | from 0 to +60°С |
| Accuracy of measurements | ±2°С |
| Ambient operating temperature | from 0 to +50°С |
| Maximal load power | 7A/250V |

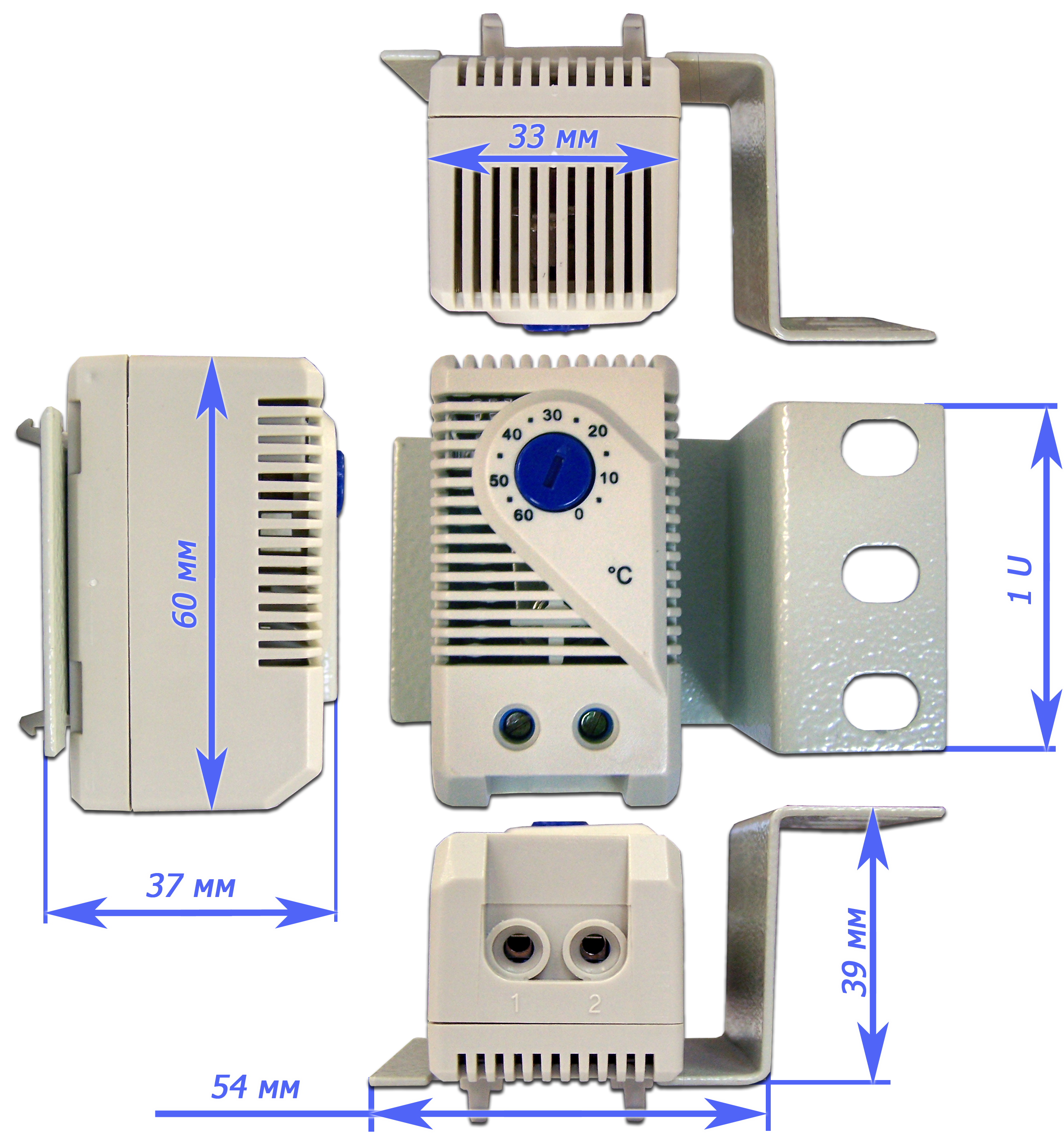

Dimensions
.png)
