TWT UTP cable, 4 pairs, category 6, ng(А)-LS, IEC 60332-3, 305 meters, purple
TWT UTP cable, 4 pairs, category 6, ng(А)-LS, IEC 60332-3, 305 meters, purple
TWT-6UTP-NGLS

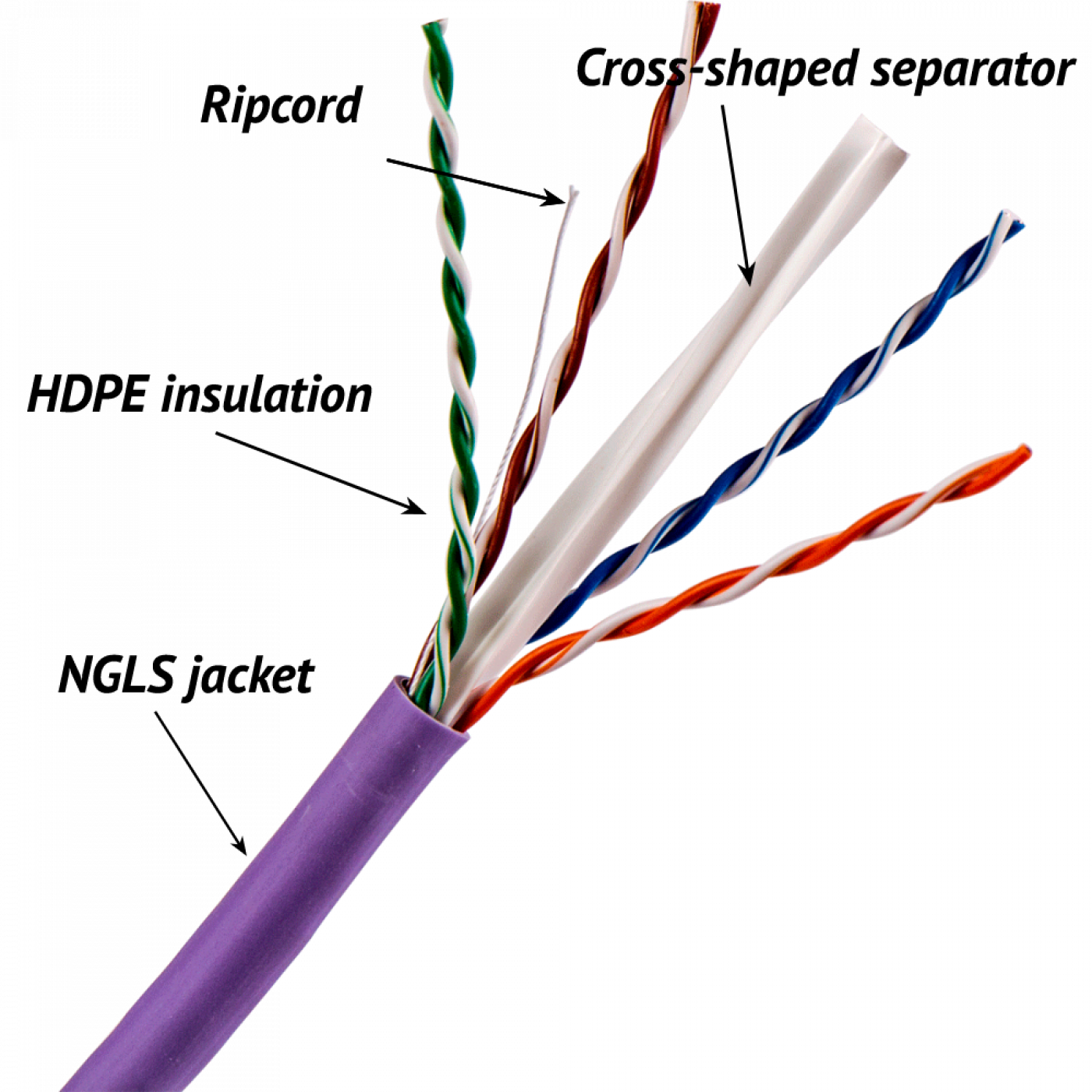

Unshielded four pairs category 6 cable is designed for digital and analog signals transmission on frequencies below 250 MHz. The cable comprises four twisted pairs of solid copper conductors under a single jacket.
The cable jacked is made from polymer compound with low smoke and gases emission which fire retardant for group cabling as stated in GOST IEC 60332-3-22-2011 and GOST IEC 61034-2-2011.
There is a ripcord under the jacket to ease termination process.
Box dimensions (DхWхH) – 352 х 196 х 352 mm
Box weight – 8.9 kg
| Specification | Value |
| Jacket Color | Purple |
| Jacket Material | ng(A)-LS |
| Insulation Material | HDPE (high density polyethylene) |
| Conductor Gauge, single | 23 AWG |
| Conductor Type | Solid |
| Cable Diameter | 6.4 mm |
| Operating Temperature | -20 ºC to +75 ºC |
| Cable Length per Box | 305 m |
| Nominal velocity propagation (NVP) | 66% — 100 MHz |
| Regulatory Certifications | UL, ETL and 3P Verified to ANSI/TIA/EIA568-D.2-1 Category 6 |
| Regulatory Compliance | TIA/EIA568-D.2-1 Category 6, ISO/IEC 11801-1:2017, EN 50288-6-1:2013 |
