TWT FTP cable, 4 pairs, category 6, LSZH
TWT FTP cable, 4 pairs, category 6, LSZH
TWT-6FTP-LSZH
Shielded four pairs category 6 cable is designed for digital and analog signals transmission on frequencies below 500 MHz.

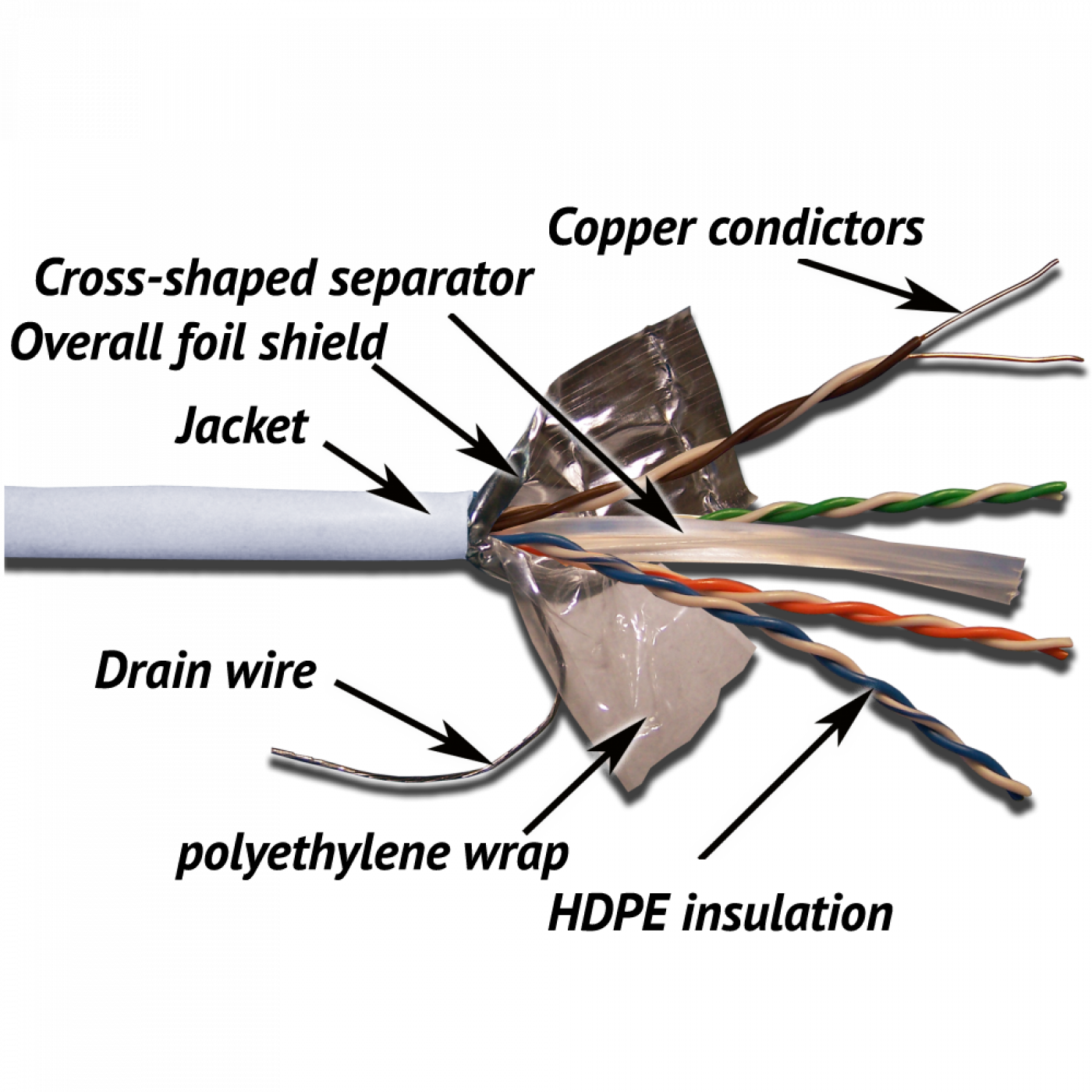

The cable comprises four twisted pairs of solid copper conductors are parted with a separator under a single jacket.
| Specification | Value |
| Jacket Color | |
| Jacket Material | LSZH (low some, zero halogen) |
| Insulation Material | HDPE (high density polyethylene) |
| Conductor Gauge, single | 23 AWG |
| Conductor Type | Solid |
| Cable Diameter | 7.6 mm |
| Shield Material | Aluminum polyester foil over 4 pairs |
| Operating Temperature | -20 ºC to 75 ºC |
| Cable Length per Box | 305 m |
| Nominal velocity propagation (NVP) | 69% |
| Regulatory Certifications | UL, ETL and 3P Verified to ANSI/TIA/EIA568-D.2-1 Category 6 |
| Regulatory Compliance | TIA/EIA568-D.2-1 Category 6, ISO/IEC 11801-1:2017, EN 50288-6-1:2013 |
