TWT FTP cable, 4 pairs, category 6, PVC, gray, 305 meters
TWT FTP cable, 4 pairs, category 6, PVC, gray, 305 meters
TWT-6FTP-GY

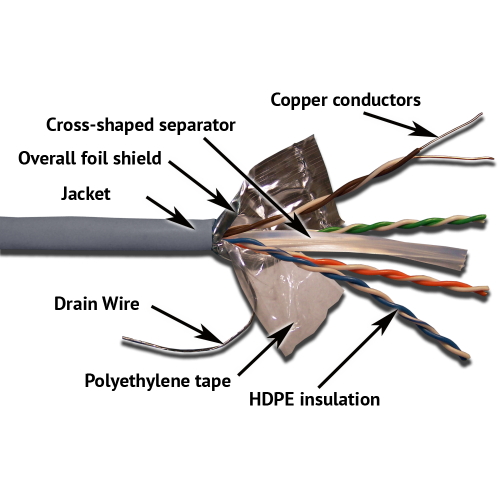

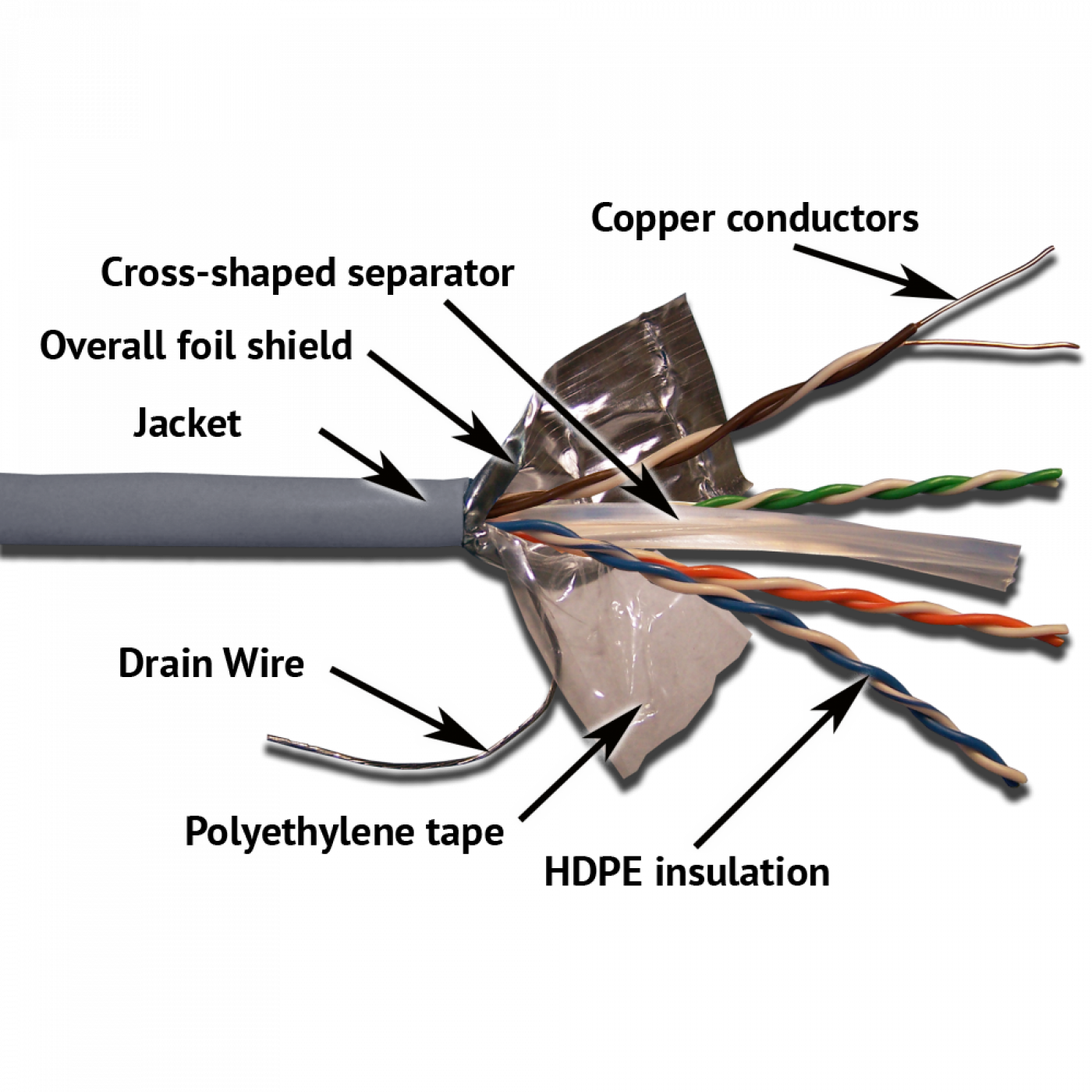

The cable comprises 4 pairs of stranded copper conductors.
Each conductor is covered with HDPE (high density polyethylene) insulation.
The cable fully complies with category 6 demands.
Two conductors are twisted with specially selected step in a single twisted pair.
Pairs in the cable are parted with a separator which increase cross attenuation between the pairs.
The cable comprises four twisted pairs and the separator with overall foil shield under a single PVC jacket.
There is a ripcord under the jacket to ease termination process.
| Specification | Value |
| Jacket Color | Grey |
| Jacket Material | PVC |
| Insulation Material | HDPE (high density polyethylene) |
| Conductor Gauge, single | 23 AWG |
| Conductor Type | Solid |
| Cable Diameter | 7.6 mm |
| Shield Material | Aluminum polyester foil over 4 pairs |
| Operating Temperature | -20 ºC to 75 ºC |
| Cable Length per Box | 305 m |
| Nominal velocity propagation (NVP) | 69% |
| Regulatory Certifications | UL, ETL and 3P Verified to ANSI/TIA/EIA568-D.2-1 Category 6 |
| Regulatory Compliance | TIA/EIA568-D.2-1 Category 6, ISO/IEC 11801-1:2017, EN 50288-6-1:2013 |
