TWT UTP cable, 25 pairs, Cat. 5, PVC, 305 meters per drum
TWT UTP cable, 25 pairs, Cat. 5, PVC, 305 meters per drum
TWT-5UTP25

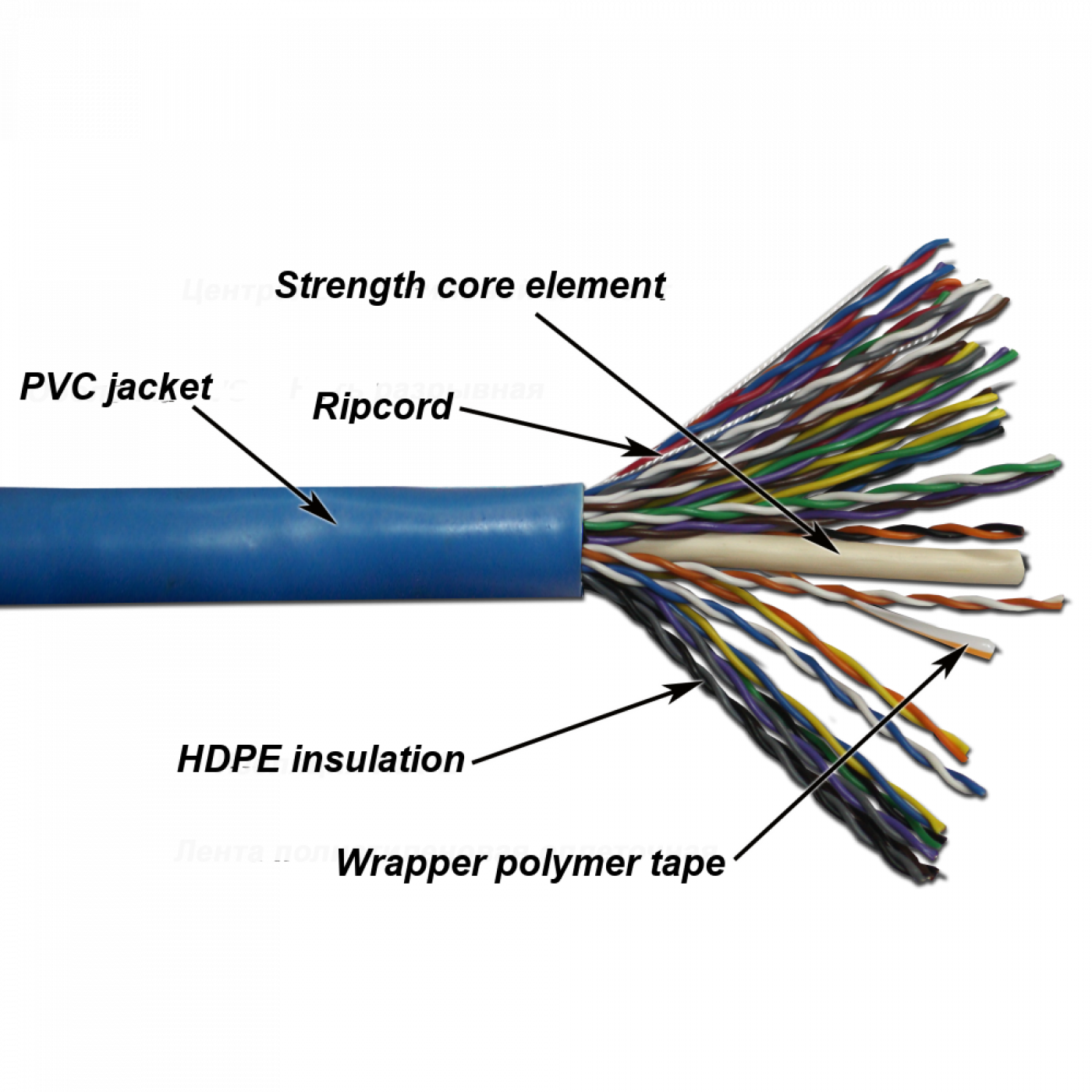

The cable consists of 25 pairs of solid copper conductors.
Conductor diameter is 24AWG.
Each conductor is enclosed in HDPE (high-density polyethylene) insulation.
Meets the requirements of Category 5.
Two conductors, twisted with a specially selected step, make up one twisted pair.
Twisted pairs are assembled around the central element, wrapped in a plastic film and enclosed in a common PVC jacket.
To facilitate cable termination, a rip cord is included under the jacket.
The cable is supplied on 305 meters drums. Other construction lengths can be supplied on request.
| Characteristic | Value |
| Jacket color | Blue |
| Jacket material | PVC (polychlorinated vinyl chloride) |
| Insulation material | HDPE (High Density Polyethylene) |
| Conductor diameter | 24 AWG |
| Conductor Type | Solid |
| Insulation thickness | 0.24 mm |
| Cable diameter | 13.8 mm |
| Fire safety rating | CMR (vertical tray cable) |
| NVP | 66% |
| Frequency range | 1-100 MHz |
| Operating temperature range | -20 °C / +75 °C |
| Number of meters per drum | 305 m |
| Laboratory certification | UL |
| Compliant with TIA/EIA 568-A cat,5 standards; ISO/IEC 11801; EN 50173 | |
Support for the following applications:
| |
| Color coding: | |
| Pair 1 White — Blue | Pair 13 Black — Green |
| Pair 2 White — Orange | Pair 14 Black — Brown |
| Pair 3 White — Green | Pair 15 Black — Gray |
| Pair 4 White — Brown | Pair 16 Yellow — Blue |
| Pair 5 White — Grey | Pair 17 Yellow — Orange |
| Pair 6 Red — Blue | Pair 18 Yellow — Green |
| Pair 7 Red - Orange | Pair 19 Yellow — Brown |
| Pair 8 Red — Green | Pair 20 Yellow — Gray |
| Pair 9 Red — Brown | Pair 21 Purple — Blue |
| Pair 10 Red — Grey | Pair 22 Purple — Orange |
| Pair 11 Black — Blue | Pair 23 Purple — Green |
| Pair 12 Black — Orange | Pair 24 Purple — Brown |
| Pair 25 Purple — Gray | |
Electrical characteristics of the cable:
| Characteristic | Value |
| Impedance | 100 +/- 15 Ohm |
| Maximum capacitance | 17.1 nF/305m |
| Conductor resistance | 28.6 Ohm/305m |
| Unbalance resistance | 5% |
| Pair capacitance to ground unbalance | 330 pF/100m |
| Skew delay | 35 ns/100m |
| Nominal velocity propagation rate | 66% |
