TWT UTP cable, 10 pairs, category 5, PVC, 305 meters on a reel
TWT UTP cable, 10 pairs, category 5, PVC, 305 meters on a reel
TWT-5UTP10

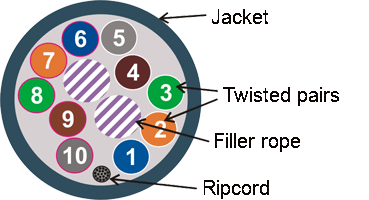

Cable comprises 10 pairs of solid copper conductors.
Cable is unshielded (UTP) and compliance with category 5.
Each conductor is covered with HDPE (high density polyethylene) insulation.
Two conductors are twisted with specially selected step in a single twisted pair. All twisted pairs are grouped in a single bundle with polyethylene tape and enclosed in a PVC jacket.
There is a ripcord under the cable jacket for termination process convenience.
The cable is delivered on reels by 305 meters length. Other construction lengths are available by order.
| Specification | Value |
| Jacket Color | Blue |
| Jacket Material | PVC |
| Insulation Material | HDPE (high density polyethylene) |
| Conductor Type | Solid |
| Conductor Gauge | 24 AWG |
| Nominal Velocity Propagation (NVP) | 66% |
| Cable Diameter | 7.8 mm |
| Cable Length per Reel | 305 m |
| Operating Temperature | -20 ºC to 75 ºC |
| Regulatory Certifications | UL VERIFIED |
| Regulatory Compliance | TIA/EIA 568.2-E cat. 5; ISO/IEC 11801 |
| Color Coding | |||
| Pair | Color | Pair | Color |
| 1 | white - blue | 6 | red - blue |
| 2 | white - orange | 7 | red - orange |
| 3 | white - green | 8 | red - green |
| 4 | white - brown | 9 | red - brown |
| 5 | white - grey | 10 | red - grey |
