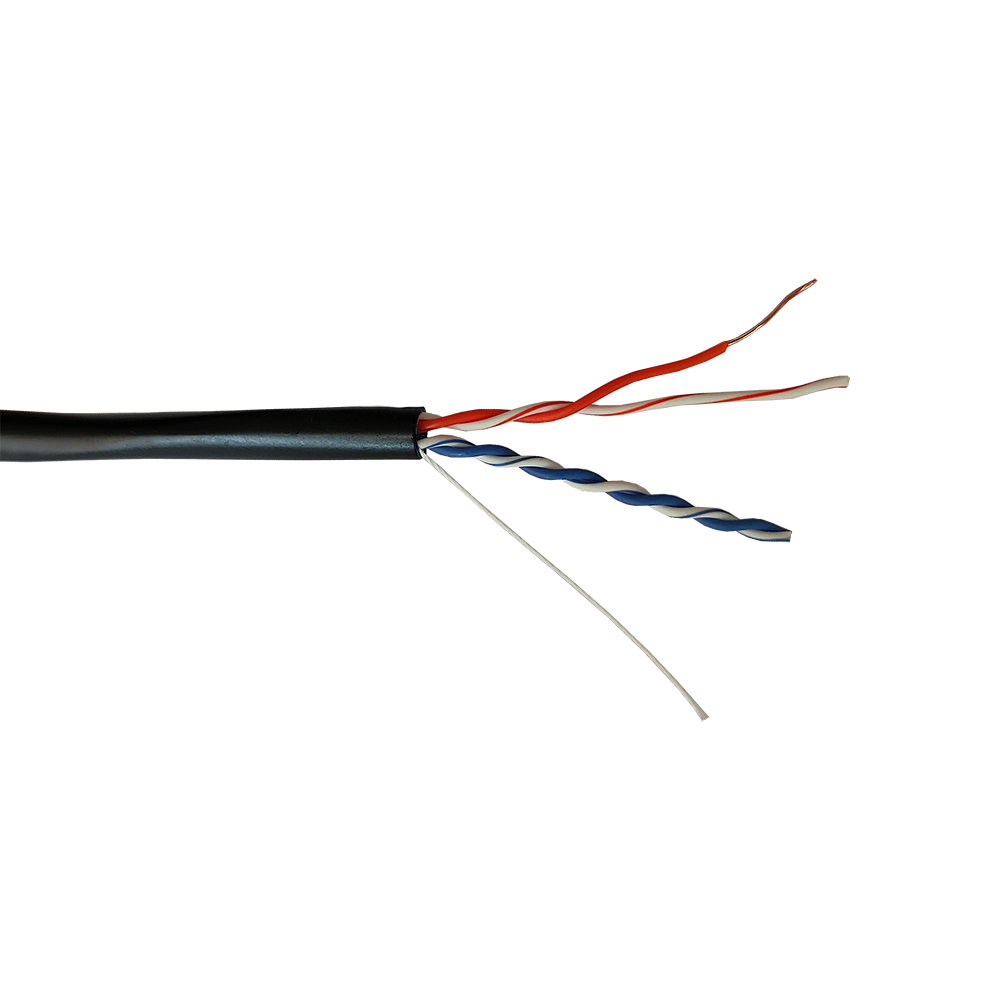

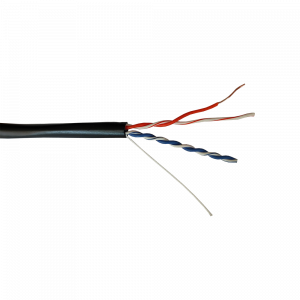

UTP cable, two pairs, category 5e, outdoor, PE
UTP cable, two pairs, category 5e, outdoor, PE
TWT-5EUTP2-OUT
Two pairs cable is a budget solution for voice, fire alarm, and security cabling, connection of xDSL modems, and Ethernet network (10Base-T and 100Base-T which use two pairs for connection) cabling.
| Specification | Value |
| Jacket Color | Black |
| Jacket Material | LDPE (low density polyethylene) |
| Insulation Material | HDPE (high density polyethylene) |
| Conductor Gauge, single | 24 AWG |
| Conductor Type | Solid |
| Cable Diameter | 4,5 mm |
| Operating Temperature | -40 ºC to +75 ºC |
| Cable Length per Box | 305 m, 500 m |
| Nominal Velocity Propagation (NVP) | 67% |
| Regulatory Certifications | ETL VERIFIED |
| Regulatory Compliance | TIA/EIA 568-D.2 cat. 5e |
