TWT UTP cable, 10 pairs, Cat. 5e, for outdoor installation with messenger, 305 meters per drum

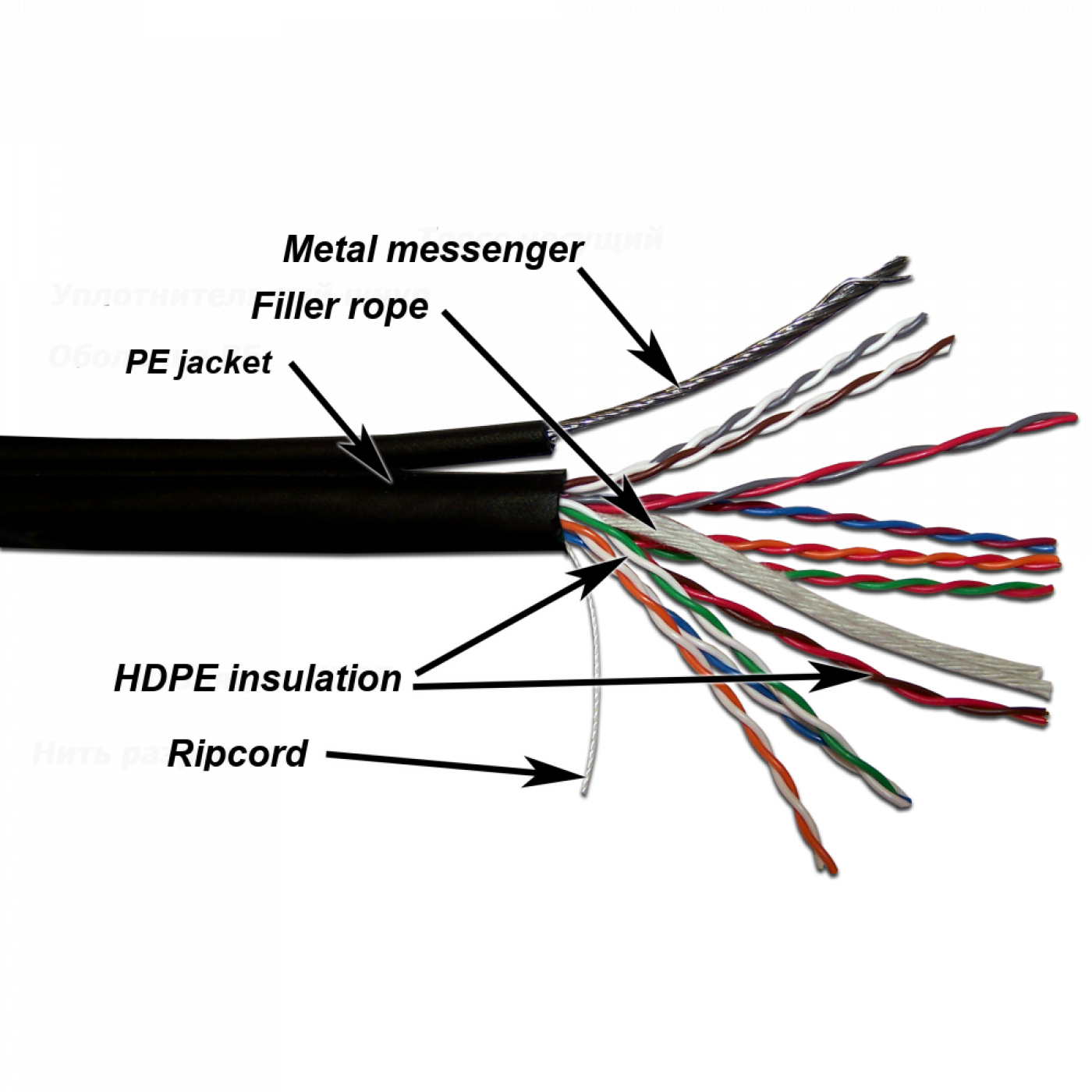

Multi-pair non-shielded cable is intended for transmitting data, telephone and television signals at frequencies up to 100 MHz. The cable consists of 10 pairs of solid copper conductors. Outer jacket: PE. Conductor diameter is 24 AWG.
Each conductor is enclosed in HDPE (high-density polyethylene) insulation. Two conductors, twisted with a specially selected step, make up one twisted pair.
Twisted pairs are collected around the central element and enclosed in a common polyethylene (PE) jacket.
The cable includes a stranded steel messenger consisting of 7 steel wires of 0.5 mm diameter, the messenger jacket is connected to the cable jacket, forming a “figure of eight”. Cable with messenger is intended for hanging on overhead communication lines.
To facilitate cable termination, a rip cord is included under the jacket.
The cable is supplied in 305 meters drums. Other construction lengths can be supplied on request.
Physical characteristics of the cable:
| Characteristic | Value |
| Jacket color | Black |
| Jacket material | PE (Polyethylene) |
| Insulation material | HDPE (High Density Polyethylene) |
| Conductor diameter | 24 AWG |
| Conductor Type | Solid |
| Insulation thickness | 0,2+/-0,05 mm |
| Cable diameter | 7,5+/-0,5 mm |
| Frequency range | 1-100 mHz |
| Operating temperature range | up to +70 |
| Number of meters per drum | 305 m |
| Laboratory certification | UL |
| Compliant with TIA/EIA 568-A cat.5 standards; ISO/IEC 11801; EN 50173 | |
Support for the following applications:
| |
Electrical characteristics of the cable:
| Characteristic | Value |
| Impedance | 100+/-15 Ohm |
| Unbalance resistance | 5% |
| Pair capacitance to ground unbalance | 330pF/100m |
| Skew delay | 45ns/100m |
