TWT UTP cable , 4 pairs, category 5e, PVC, grey, 305 meters
TWT UTP cable , 4 pairs, category 5e, PVC, grey, 305 meters
TWT-5EUTP

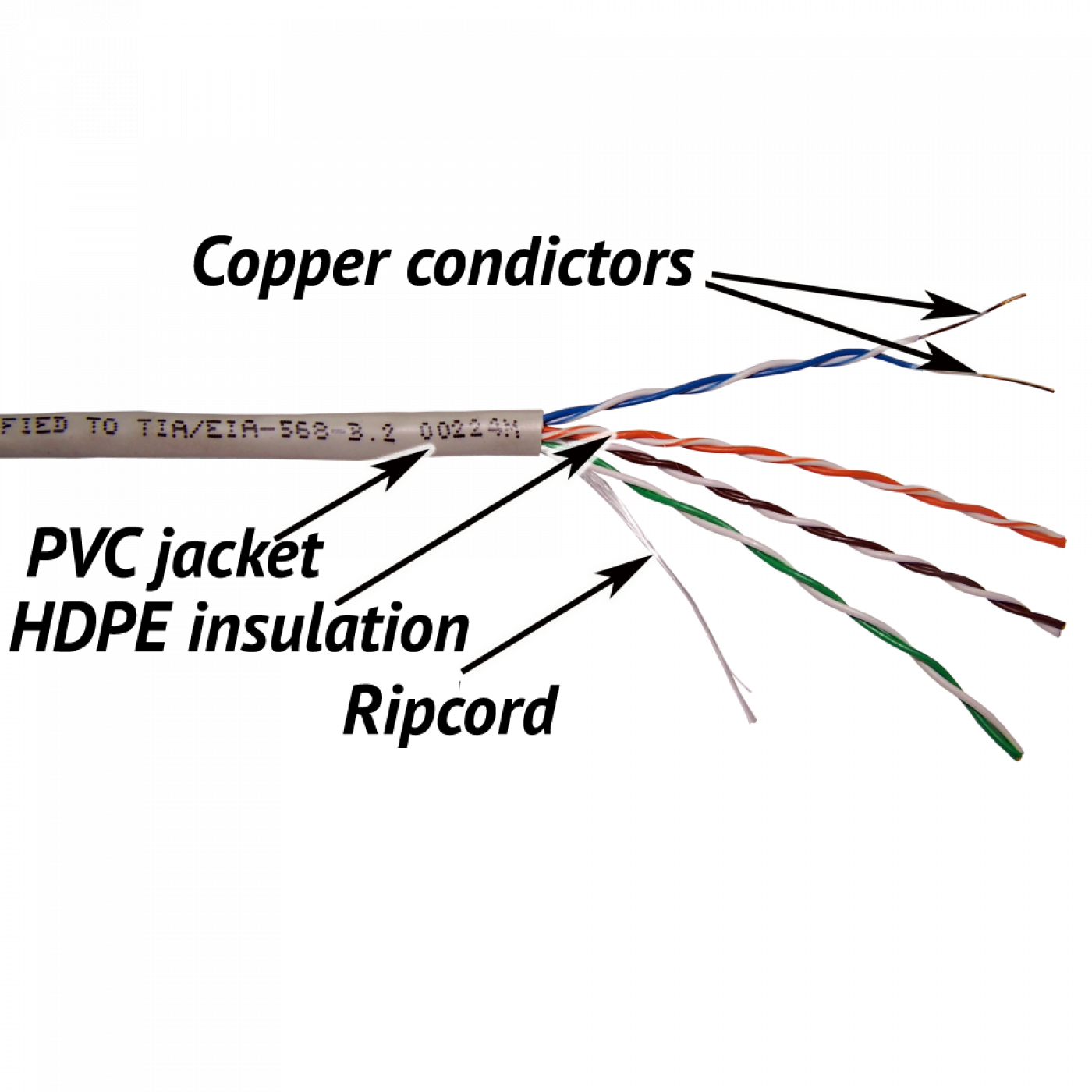

Four pairs UTP cable has a following design:
Conductor is a solid 24 AWG wire with HDPE (high density polyethylene) insulation. Two conductors comprise a single twisted pair.
The cable consists of four pairs, each pair twisted with different but specially selected step. There is a ripcord under cable jacket for termination process convenience. The jacket is cut when ripcord is pulled. The cable jacket has per meter length marks.
| Specification | Value |
| Jacket Color | Grey |
| Jacket Material | PVC (polyvinyl chloride) |
| Insulation Material | HDPE (high density polyethylene) |
| Conductor Gauge, single | 24 AWG |
| Conductor Type | Solid |
| Cable Diameter | 4,8mm ± 0,3 |
| Operating Temperature | -20 ºC to 75 ºC |
| Cable Length per Box | 100 m, 305 m, 500 m |
| Nominal velocity propagation (NVP) | 67% |
| Regulatory Certifications | UL, ETL VERIFIED |
| Regulatory Compliance | TTIA/EIA 568-D.2 cat. 5E, ISO/IEC 11801-1:2017; EN 50173 |
The cable has better transmission characteristics then defined in standards for 1-100 MHz frequency band.
