TWT UTP cable, 4 pairs, XL series, category 5е, PVC
TWT UTP cable, 4 pairs, XL series, category 5е, PVC
TWT-5EUTP-XL
Unshielded four pairs category 5e cable is designed for digital and analog signals transmission on frequencies below 100 MHz

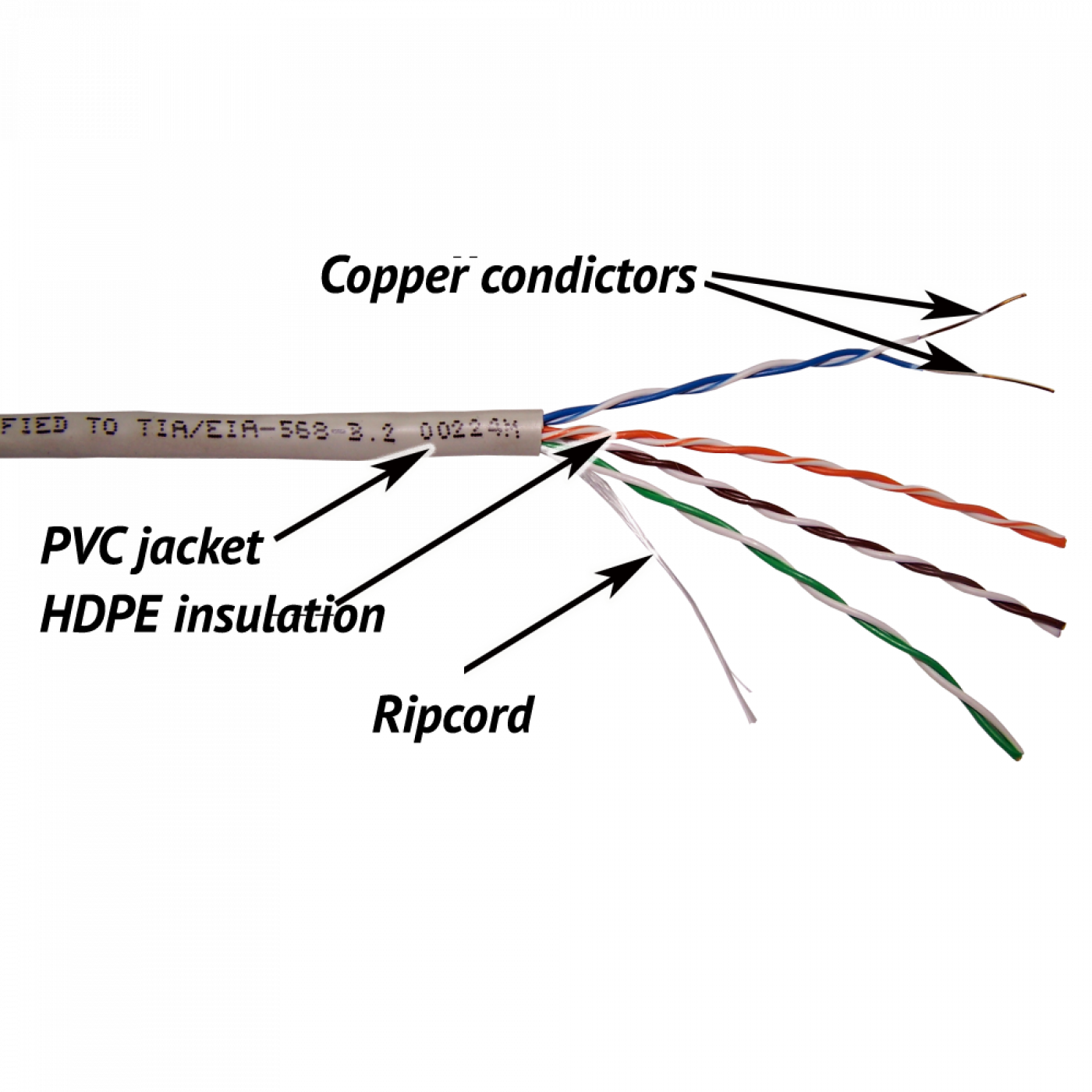

The cable comprises four twisted pairs of solid copper conductors under a single jacket.
| Specification |
Value |
| Jacket Color | Grey |
| Jacket Material | PVC (polyvinyl chloride) |
| Insulation Material | HDPE (high density polyethylene) |
| Conductor Type | Solid |
| Conductor Diameter | 24 AWG |
| Cable Diameter | 5.0 mm |
| Operating Temperature | -20 ºC to 75 ºC |
| Cable Length per Box | 305 m |
| Nominal velocity propagation (NVP) | 67% |
| Regulatory Certifications | UL, ETL VERIFIED |
| Regulatory Compliance | TIA/EIA 568-D.2 cat. 5E |
