TWT UTP cable, XL series, 4 pair, cat. 5e, LSZH, grey, 305 meters
TWT UTP cable, XL series, 4 pair, cat. 5e, LSZH, grey, 305 meters
TWT-5EUTP-XL-LSZH

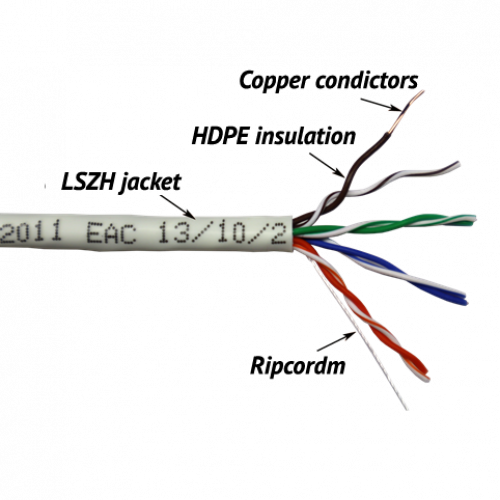

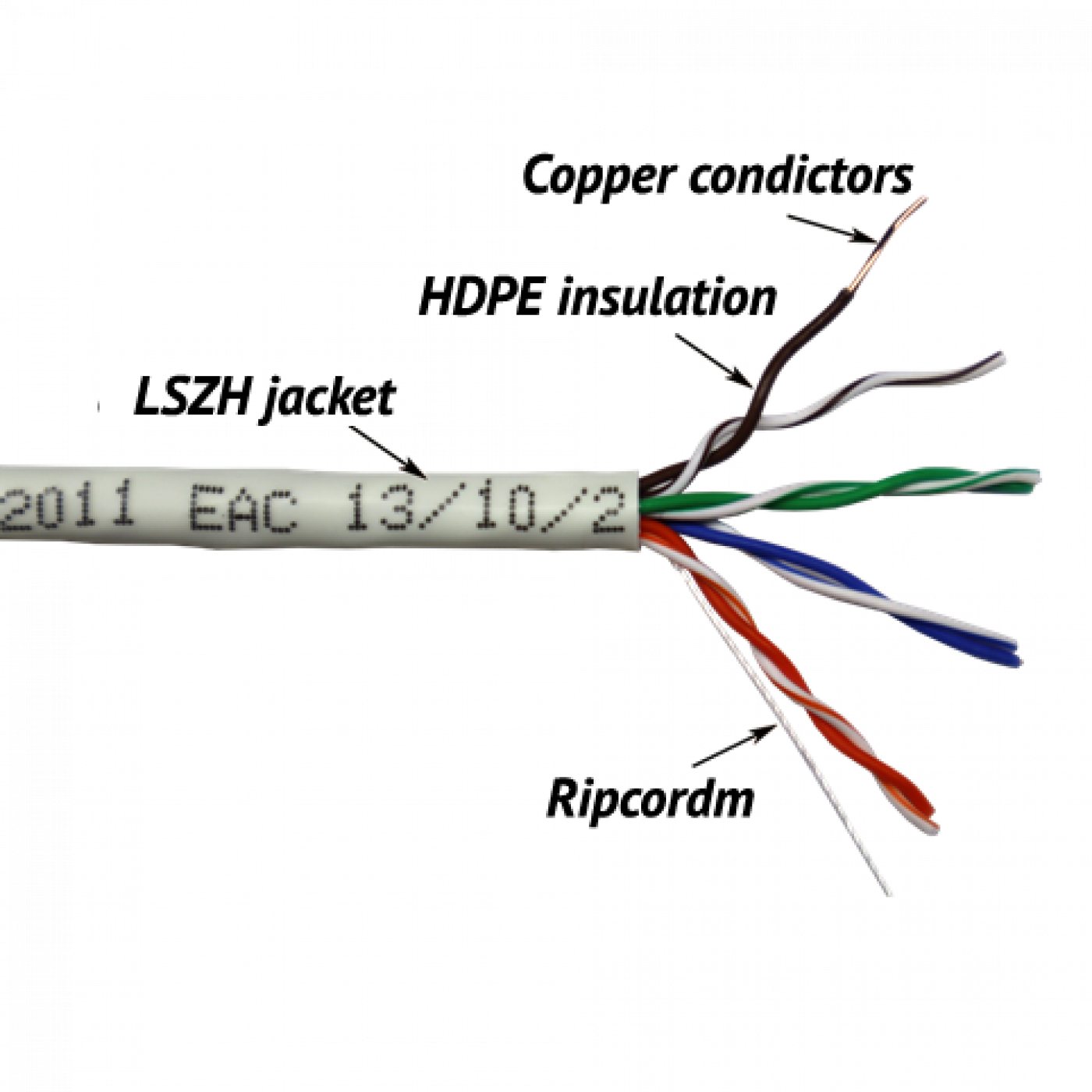

Category 5e unshielded cable for transmission of digital and analog signals at frequencies up to 100 MHz. The cable consists of 4 twisted pairs of solid copper conductors enclosed in a common sheath.
The cable sheath is made of a polymer material that does not spread combustion in beams of cables, with reduced smoke and gas emission, and meeting the requirements of IEC 60332-3-22-2011 and IEC 61034-2-2011.

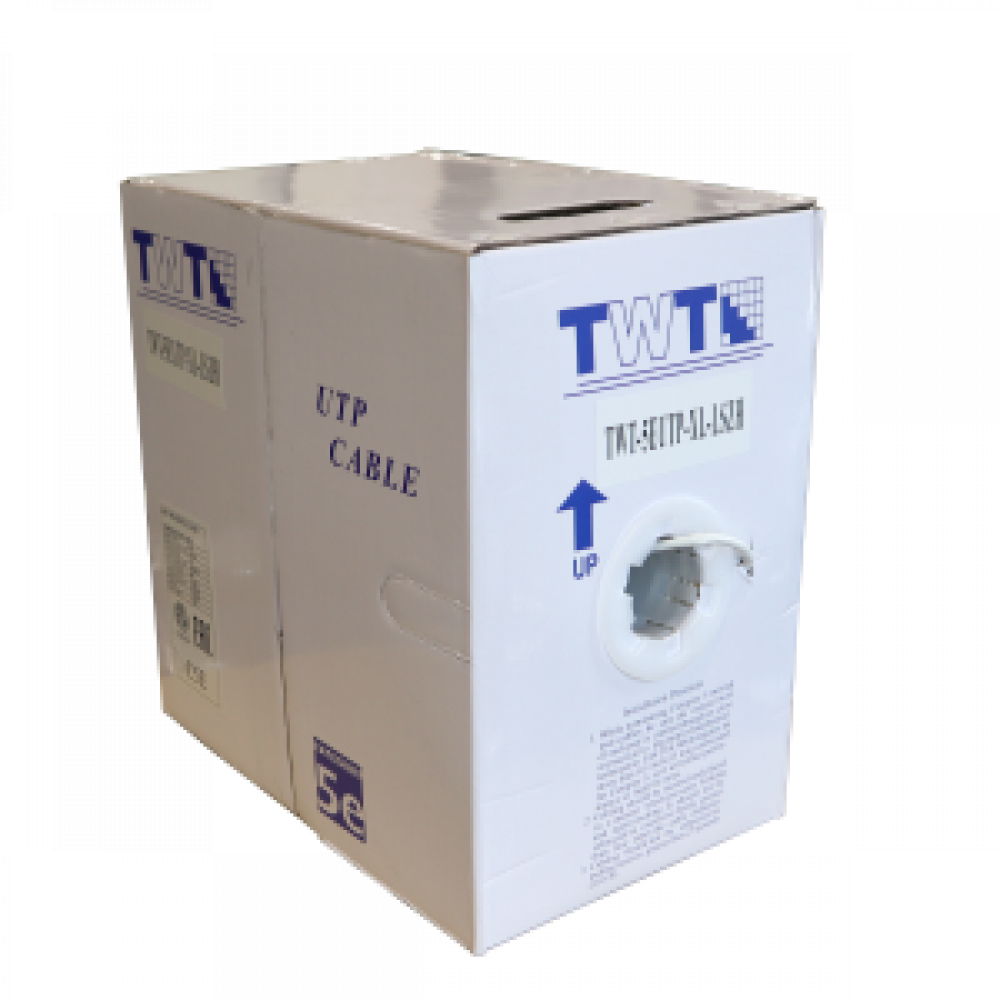

The cable is supplied in boxes of 305 meters.
Conductor diameter is 24AWG ( Æ0.50±0.01)
Box dimensions (DхWхH): 352 х 196 х 352 mm.
Box weight: 11.8 kg.
There is a ripcord under the jacket to help cutting the cable sheath.
Cable complies with standards:
- TIA/EIA 568-С.2 cat. 5e
- ISO/IEC 11801
- EN 50173
- GOST R 54429-2011
Cable specifications:
| Specification | Value |
| Conductor Type | Solid |
| Conductor Diameter | 24 AWG |
| Insulation Material | HDPE (high density polyethylene) |
| Тип оболочки | LSZH (низкодымящая, не содержит галогенов) |
| Jacket Material | LSZH (low smoke zero halogen) |
| Jacket color | White |
| Jacket Diameter | 5.0±0.3 mm |
| Wave impedance (Impedance) | 100±15 Ohm |
| DC resistance (Linear resistance) | 9.5 Ohm/100 m |
| Nominal velocity propagation (NVP) | 71% at 100 MHz |
| Cable Length per Box | 305 m |
| Color Coding | 1st pair: blue/blue-white 2nd pair: orange/orange-white 3rd pair: green/green-white 4th pair: brown/brown-white |
