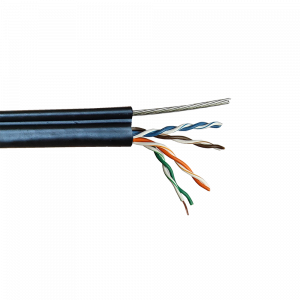

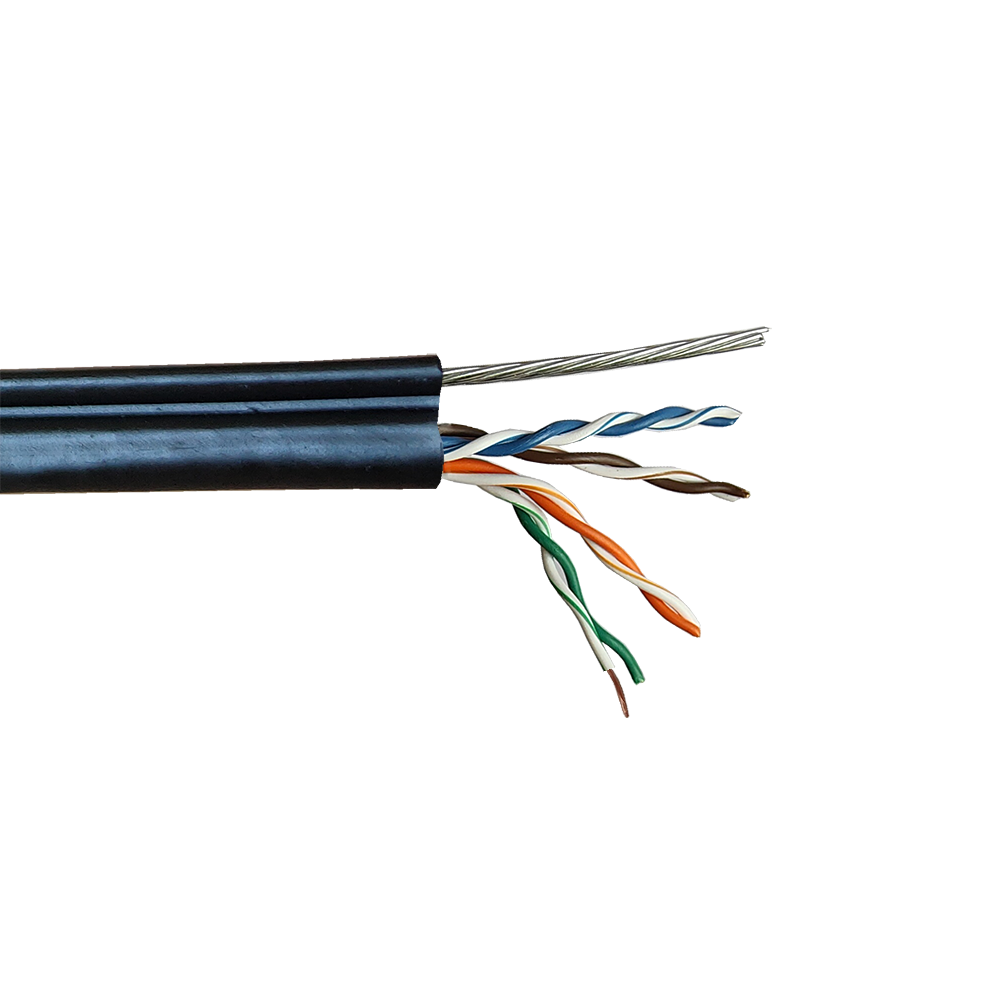

TWT UTP cable, 4 pairs, category 5е, outdoor, self-supporting with steel messenger, 305 m
The cable is suitable for outdoor installation. Polyethylene jacket reliable protects cable from harsh environment, does not degrade under Solar radiation, and allows operational temperatures from -40 oС to +75 oС.

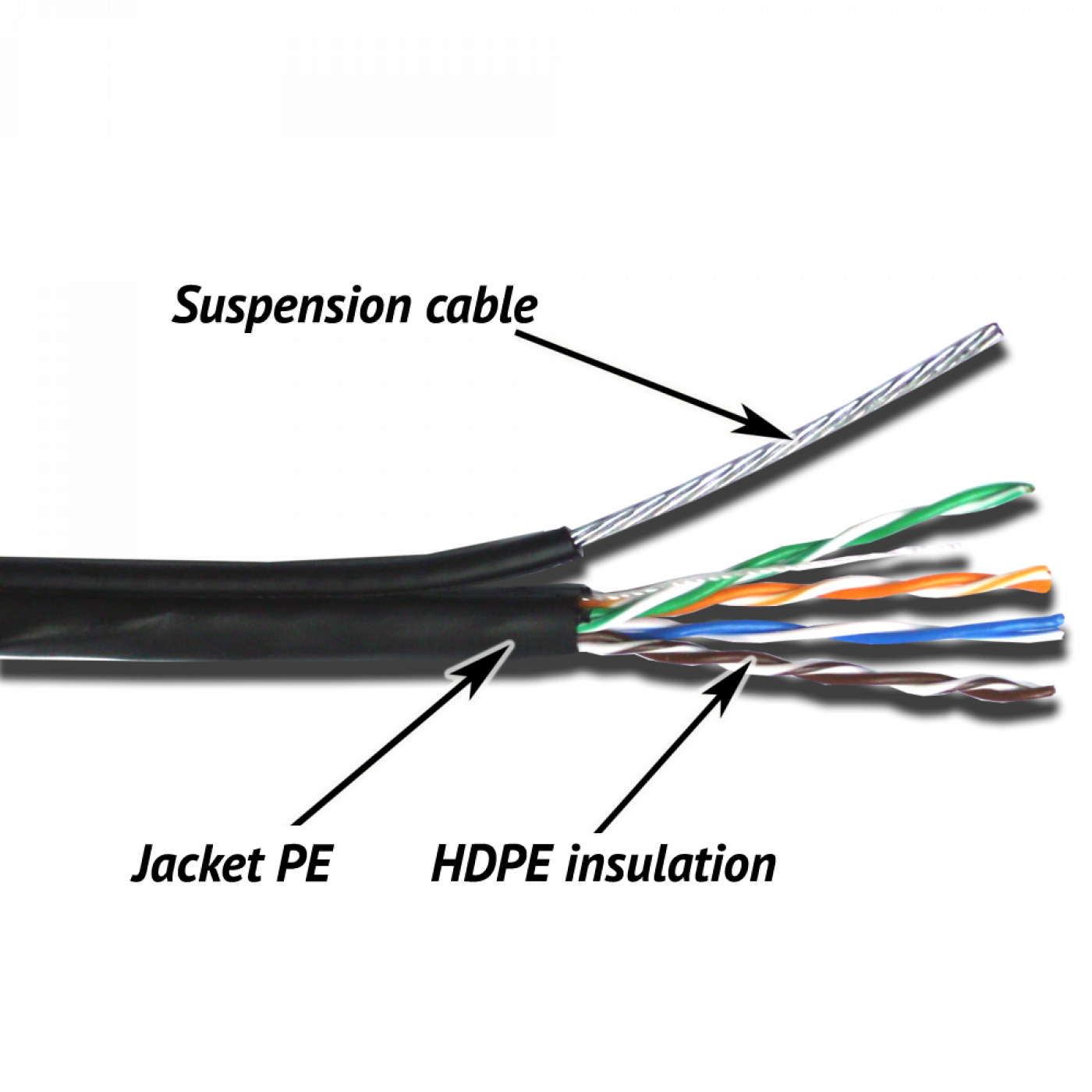

Four pairs UTP cable has a following design:
Conductor is a solid 24 AWG wire with HDPE (high density polyethylene) insulation.
Two conductors comprise a single twisted pair. The cable consists of four pairs, each pair twisted with different but specially selected step.
The steel messenger comprises 7 steel wires, each wire has 0.5 mm diameter. The messenger jacket forms «8» with the cable jacket.
The cable with the messenger is designed for aerial installation.
The cable jacket has per meter length marks.
| Specification | Value |
| Jacket Color | Black |
| Jacket Material | PE (polyethylene) |
| Insulation Material | HDPE (high density polyethylene) |
| Conductor Gauge, single | 24 AWG |
| Conductor Type | Solid |
| Messenger Diameter | 1.5 mm |
| Messenger Jacket Diameter | 2.7 mm |
| Cable Diameter | 4.8 mm |
| Operating Temperature | -40 ºC to +75 ºC |
| Cable Length per Box | 305 m |
| Nominal velocity propagation (NVP) | 66% |
| Regulatory Certifications | UL, ETL VERIFIED |
| Regulatory Compliance | TIA/EIA 568-D.2 cat. 5E, ISO/IEC 11801-1:2017; EN 50173 |
| The cable has better transmission characteristics then defined in standards for 1-100 MHz frequency band. | |
