TWT UTP cable, 4 pairs, category 5e, ng(А)-LS, IEC 60332-3, 305 meters, purple
TWT UTP cable, 4 pairs, category 5e, ng(А)-LS, IEC 60332-3, 305 meters, purple
TWT-5EUTP-NGLS

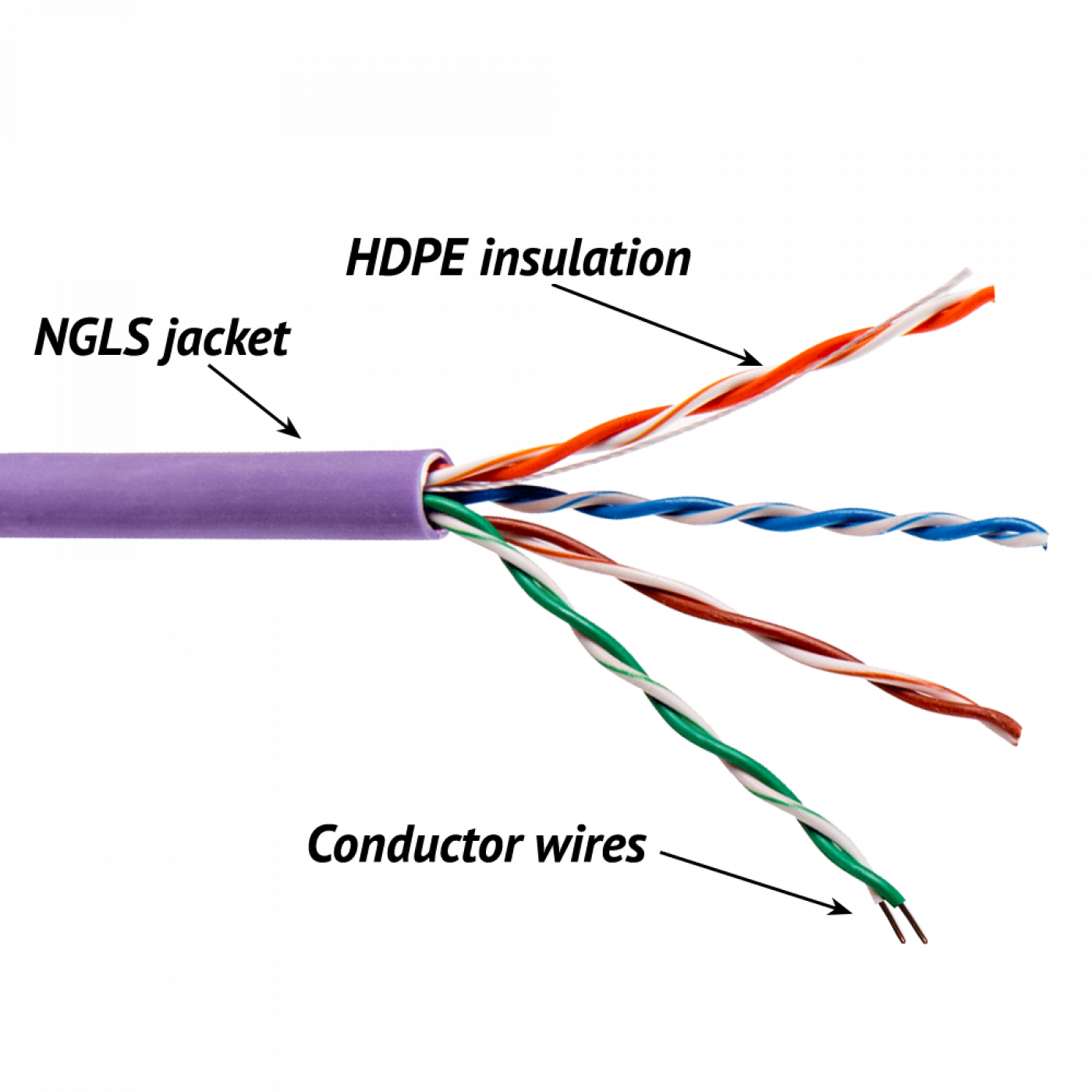

Unshielded four pairs category 5e cable is designed for digital and analog signals transmission on frequencies below 100 MHz. The cable comprises four twisted pairs of solid copper conductors under a single jacket.
There is a ripcord under the jacket to ease termination process.
Box dimensions (DхWхH) – 395 х 239 х 395 mm.
Box weight – 8.9 kg
| Specification | Value |
| Jacket Color | Purple |
| Jacket Material | ng(A)-LS |
| Insulation Material | HDPE (high density polyethylene) |
| Conductor Type | Solid |
| Conductor Gauge | 24 AWG |
| Cable Diameter | 5.0 ±0.5 mm |
| Nominal velocity propagation (NVP) | 66 % at 100 MHz |
| Cable Length per Box | 305 m |
| Operating Temperature | -20 ºC to +75 ºC |
| Regulatory Certifications | ETL VERIFIED |
| Regulatory Compliance | TIA/EIA 568-D.2 cat. 5E, ISO/IEC 11801-1:2017, EN 50173 |
