TWT UTP cable, 4 pairs, category 5e, LSZH, 305 m, white
TWT UTP cable, 4 pairs, category 5e, LSZH, 305 m, white
TWT-5EUTP-LSZH
Unshielded four pairs category 5e cable is designed for digital and analog signals transmission on frequencies below 100 MHz.

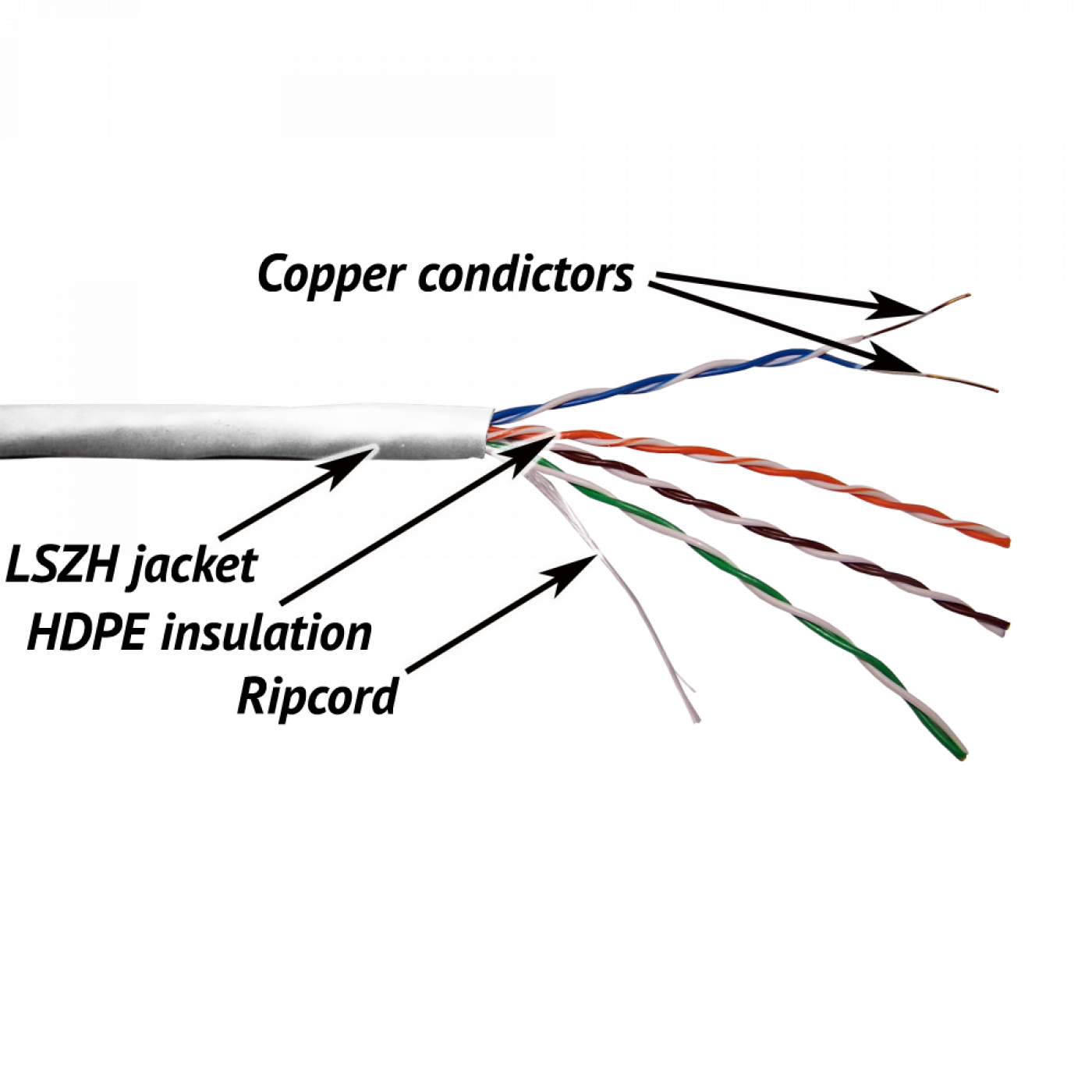

The cable comprises four twisted pairs of solid copper conductors under a single jacket. There is a ripcord under cable jacket for termination process convenience.
The cable jacked is made from polymer compound with low smoke and gases emission which fire retardant for group cabling as stated in GOST IEC 60332-3-22-2011 and GOST IEC 61034-2-2011.
Box dimensions (DxWxH) – 352 х 196 х 352 mm.
Box weight – 11.8 kg.
| Specification | Value |
| Jacket Color | White |
| Jacket Material | LSZH |
| Insulation Material | HDPE (high density polyethylene) |
| Conductor Type | Solid |
| Conductor Gauge | 24 AWG |
| Cable Diameter | 5.0 ± 0.5 mm |
| Nominal velocity propagation (NVP) | 66 % at 100 MHz |
| Cable Length per Box | 305 m |
| Operating Temperature | -20 ºC to 75 ºC |
| Regulatory Certifications | ETL VERIFIED |
| Regulatory Compliance | TIA/EIA 568-D.2 cat. 5E, ISO/IEC 11801-1:2017, EN 50173 |
