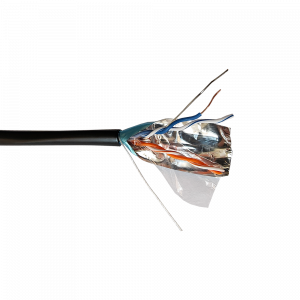

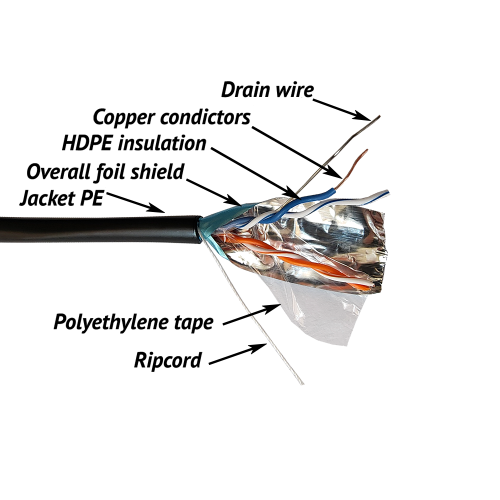

TWT FTP cable, two pairs, category 5е, outdoor, 305 meters
TWT FTP cable, two pairs, category 5е, outdoor, 305 meters
TWT-5EFTP2-OUT
Two pairs cables are budget solution for voice, fire alarm, security and Ethernet network (except Gigabit Ethernet which requires 4-pairs cable) cabling, for connecting xDSL modems.
The cable is suitable for outdoor installation. Polyethylene jacket reliable protects cable from harsh environment, does not degrade under Solar radiation, and allows operational temperatures from -40oС до +75oС

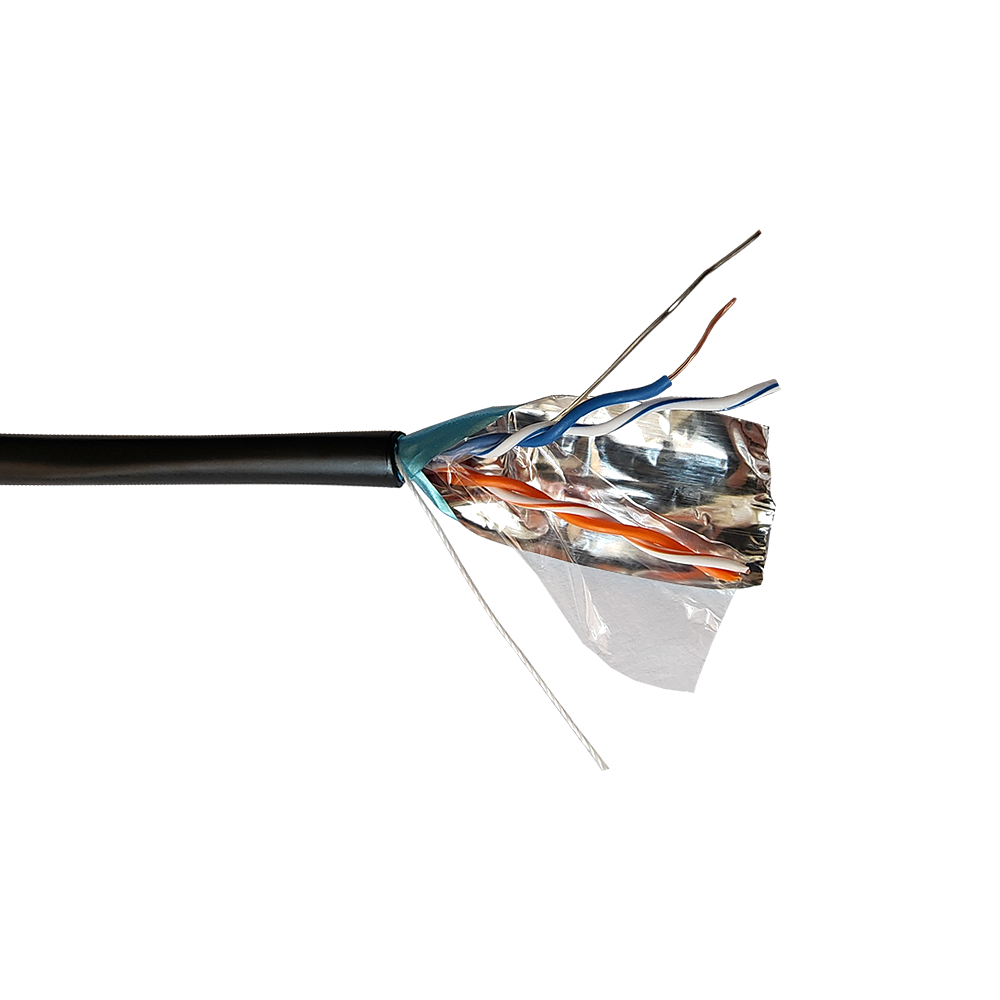

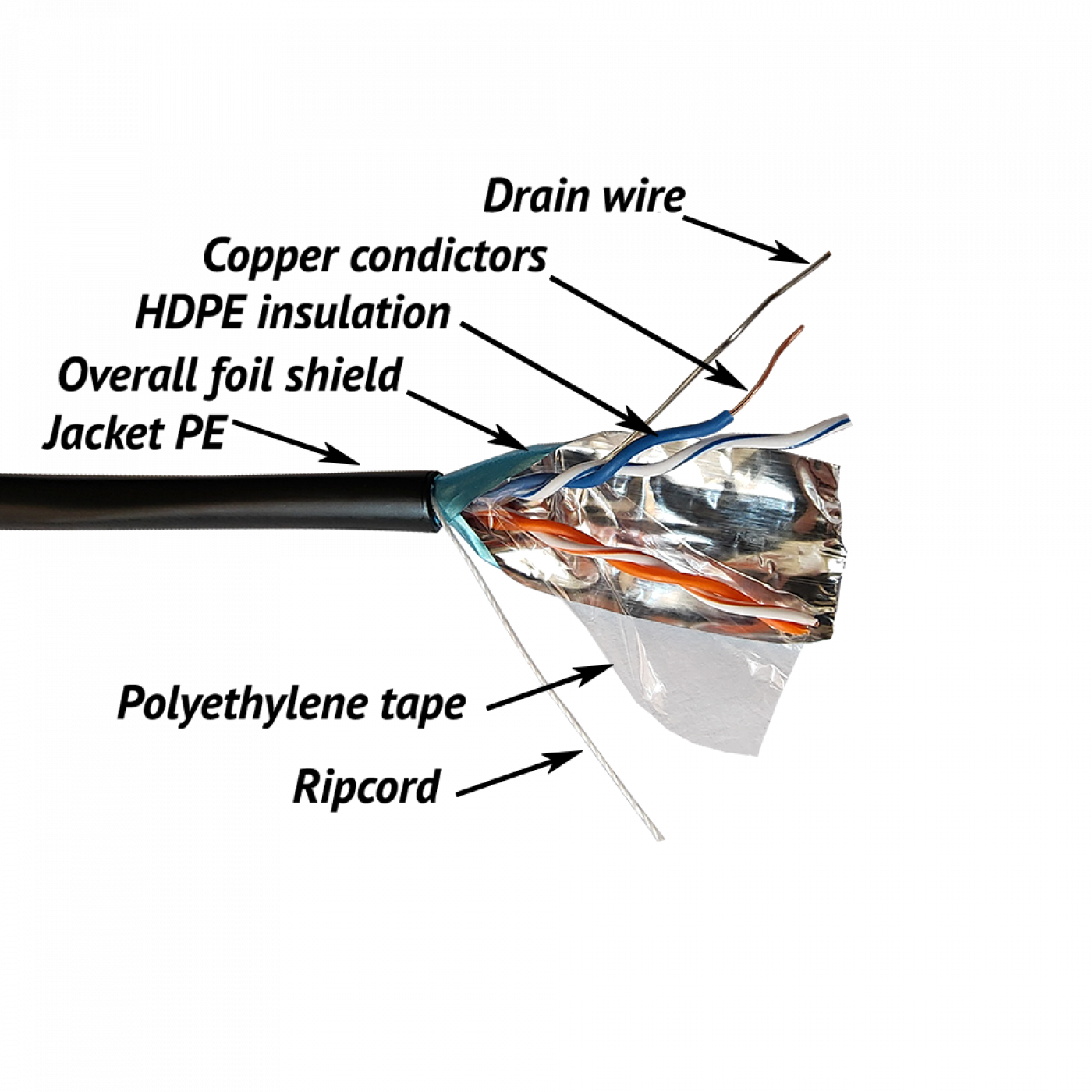

The cable comprises two pairs of solid copper 24 AWG conductors. Each conductor is insulated with HDPE (high density polyethylene). Two conductors are twisted with specially selected step in a single twisted pair. Cable has a common aluminum polyester foil shield under outer jacket. Two twisted pairs are covered with single PE (polyethylene) jacket.
| Specification | Value |
| Jacket Color | Black |
| Jacket Material | PE (polyethylene) |
| Insulation Material | HDPE (high density polyethylene) |
| Conductor Gauge, single | 24 AWG |
| Conductor Type | Solid |
| Shield Material | Aluminum polyester foil over two pairs |
| Cable Diameter | 5,2mm ± 0,3 |
| Operating Temperature | -40 ºC to +75 ºC |
| Cable Length per Box | 305 m |
| Nominal Velocity Propagation (NVP) | 67% |
| Regulatory Certifications | ETL VERIFIED |
| Regulatory Compliance | TIA/EIA 568-D.2 cat. 5e |
