TWT FTP cable, 4 pairs, XS series, category 5е, PVC
TWT FTP cable, 4 pairs, XS series, category 5е, PVC
TWT-5EFTP-XS
Shielded four pairs category 5e cable is designed for digital and analog signals transmission on frequencies below 100 MHz.

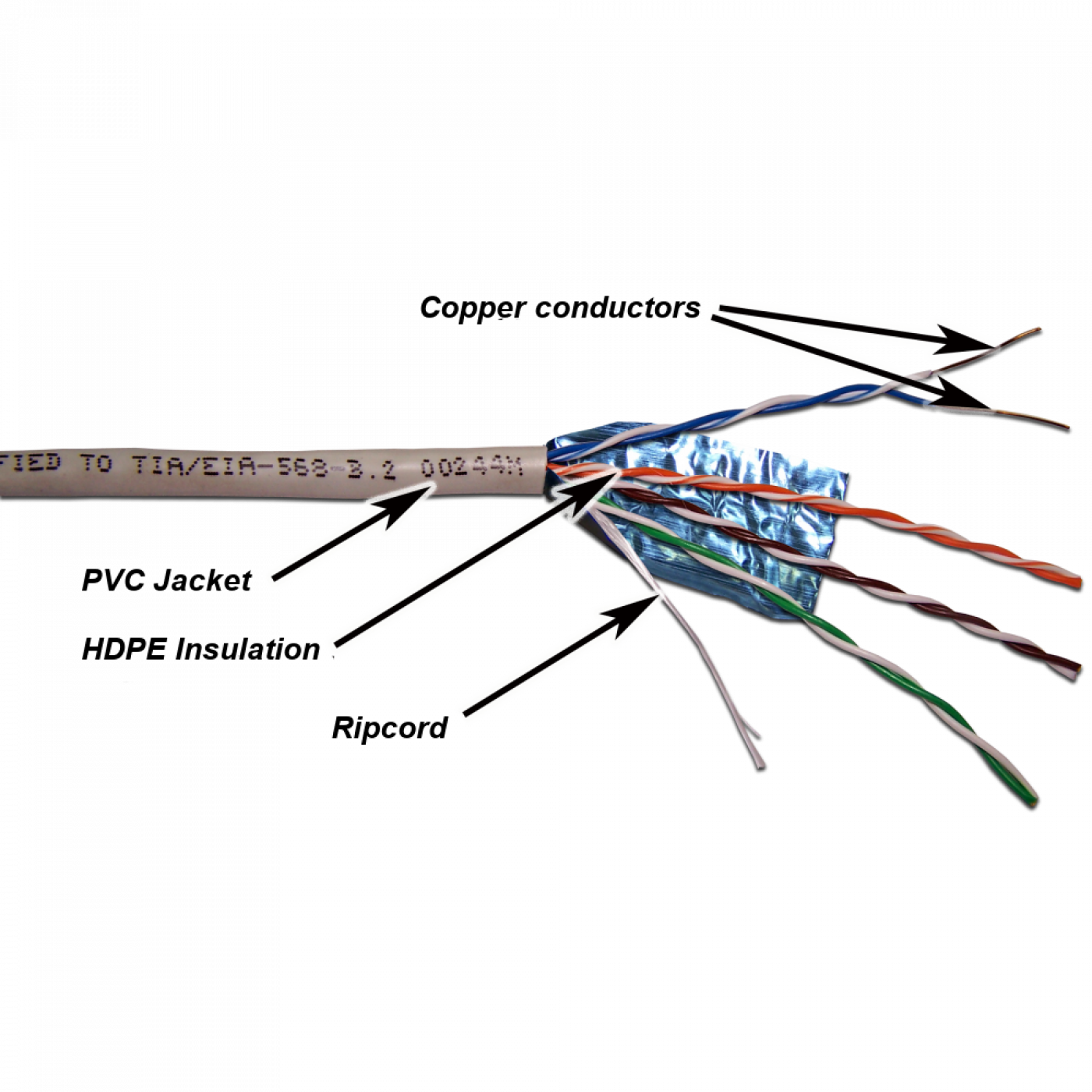

The cable comprises four twisted pairs of solid copper conductors with overall foil shield under a single jacket.
| Specification | Value |
| Jacket Color | Grey |
| Jacket Material | PVC (polyvinyl chloride) |
| Insulation Material | HDPE (high density polyethylene) |
| Conductor Type | Solid |
| Conductor Gauge | 24 AWG |
| Nominal Velocity Propagation (NVP) | 66% |
| Cable Diameter | 5.5 mm |
| Cable Length per Reel | 305 m |
| Operating Temperature | -20 ºC to 75 ºC |
| Color Coding | |||
| Pair | Color | Pair | Color |
| 1 | blue/white-blue | 3 | orange/white-orange |
| 2 | green/white-green | 4 | brown/white-brown |
