TWT FTP cable, 4 pairs, cat 5е, LSZH, universal, with steel messenger, 305 m
TWT FTP cable, 4 pairs, cat 5е, LSZH, universal, with steel messenger, 305 m
TWT-5EFTP-UNV-TR

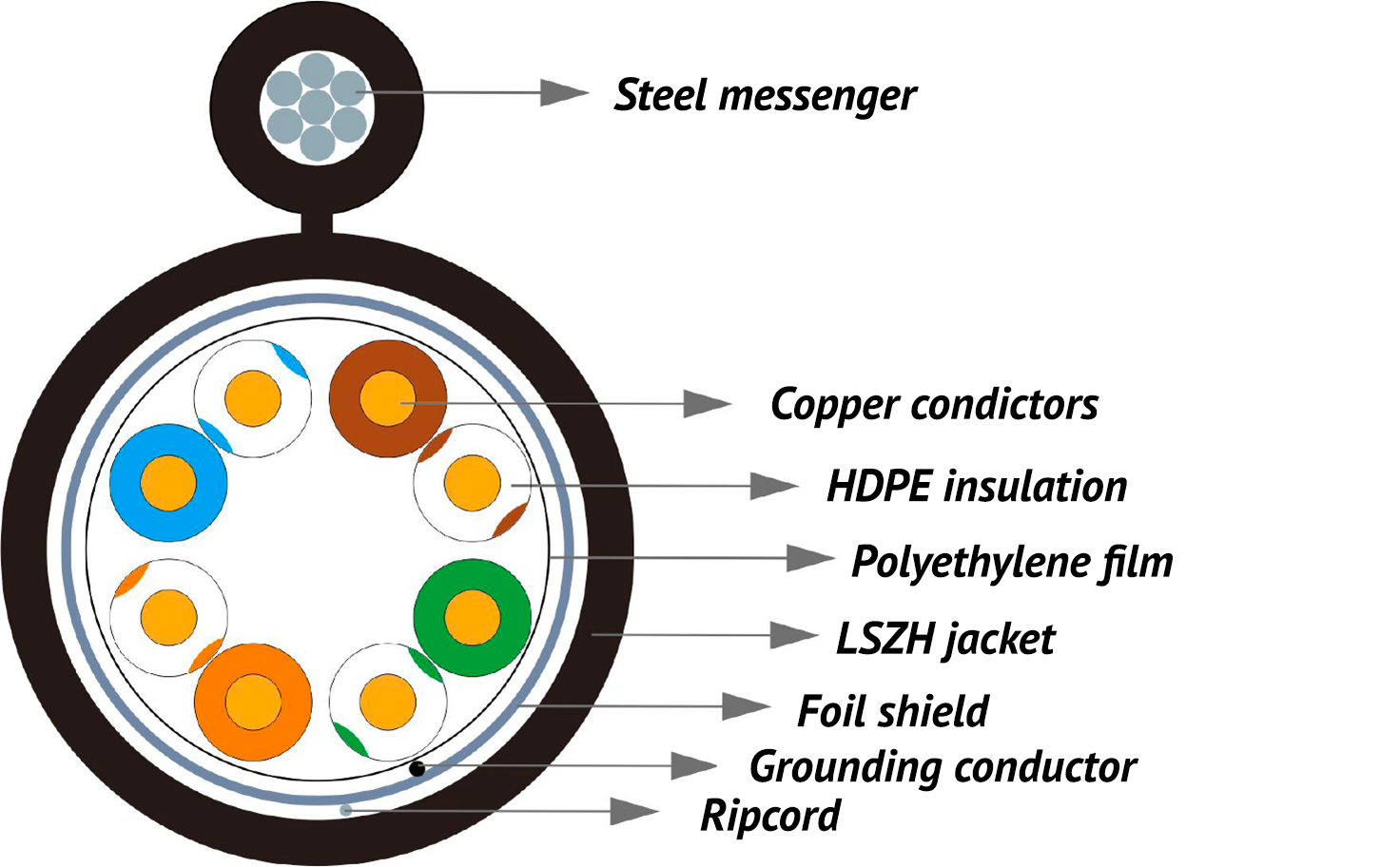

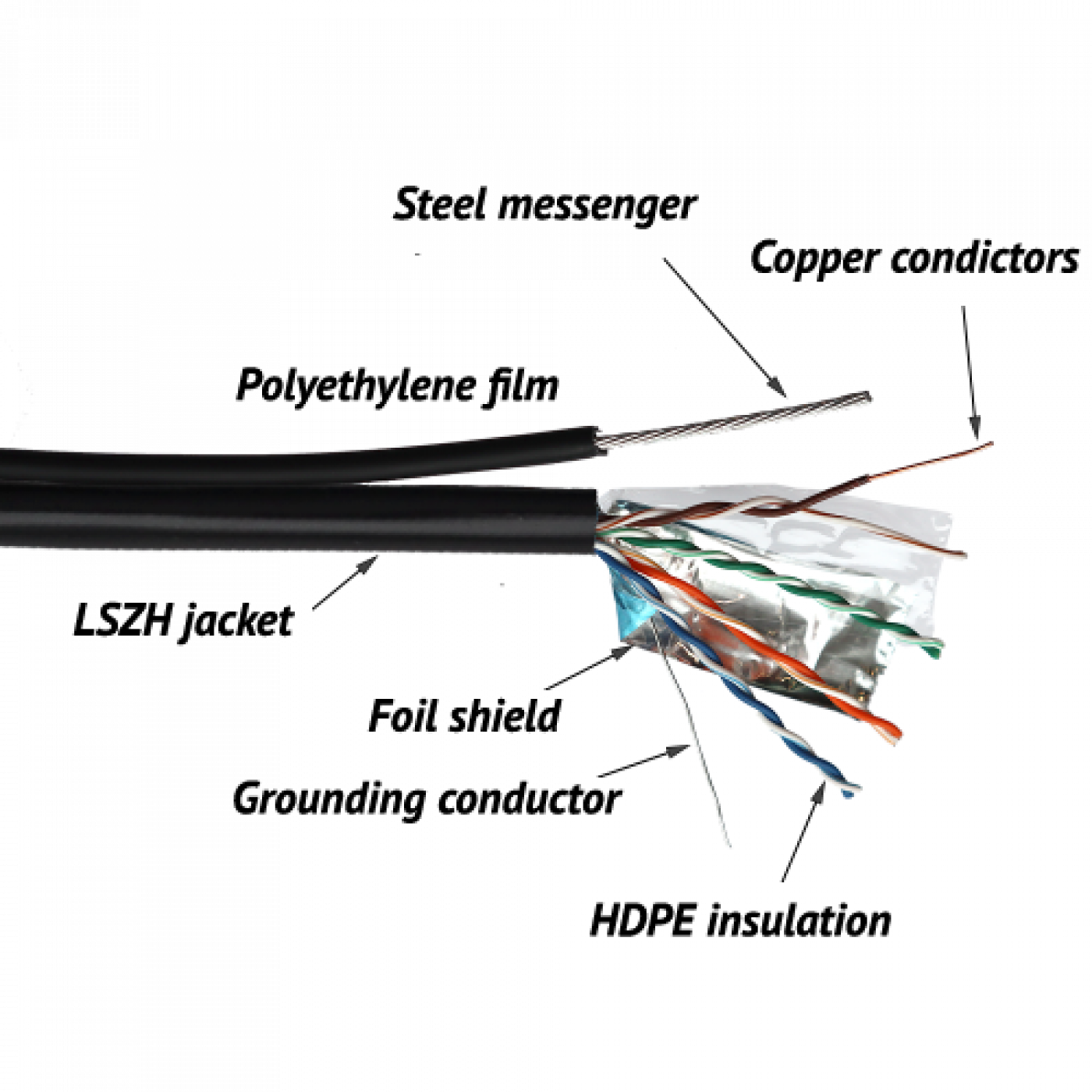

The four-pair FTP cable has the following design:
Conductor is 24AWG solid copper wire insulated with HDPE (high density polyethylene).
Two conductors make up one twisted pair, in general, the cable consists of four pairs which twisted with specially selected different step.
The cable has a common shield in the form of laminated aluminum foil under the jacket.
The cable has a common shield in the form of laminated aluminum foil under the jacket.
The steel messenger comprises 7 steel wires, each wire has 0.5 mm diameter. The messenger jacket forms «8» with the cable jacket.
The cable with the messenger is designed for aerial installation.
The cable jacket has per meter sequential length marks.
| Specification | Value |
| Jacket color | Black |
| Jacket Material | LSZH (low smoke zero halogen) |
| Insulation Material | HDPE (high density polyethylene) |
| Conductor Diameter | 24 AWG |
| Conductor Type | Solid |
| FTP Shield Type | laminated aluminum foil around 4 pairs |
| Jacket Diameter | (6,1х2,7) ± 0,3 mm |
| Operating Temperature Range температур | from -40°С to +60°С |
| Cable Length per Box | 305 m |
| NVP at 100 MHz | 69% |
| Frequency Band | 1-100 MHz |
| Conforms to standards TIA/EIA 568-С.2; ISO/IEC 11801; EN 50173 | |
| The cable has better transmission characteristics then defined in standards for 1-100 MHz frequency band. | |
