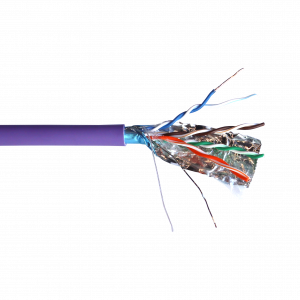

Cable TWT FTP, 4 pairs, Cat.5e, ng(A)-LS, IEC 60332-3, 305 meters, purple
Cable TWT FTP, 4 pairs, Cat.5e, ng(A)-LS, IEC 60332-3, 305 meters, purple
TWT-5EFTP-NGLS

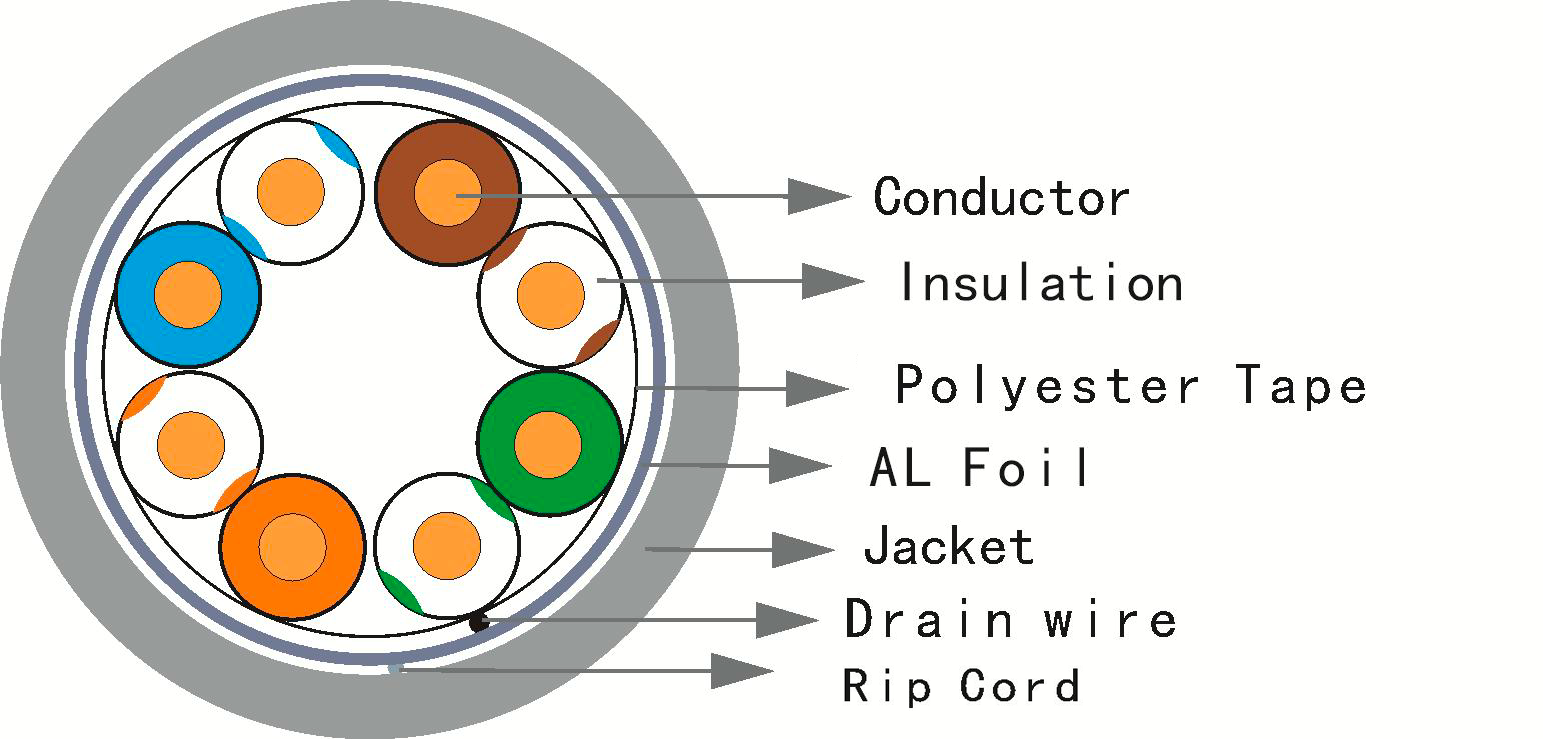

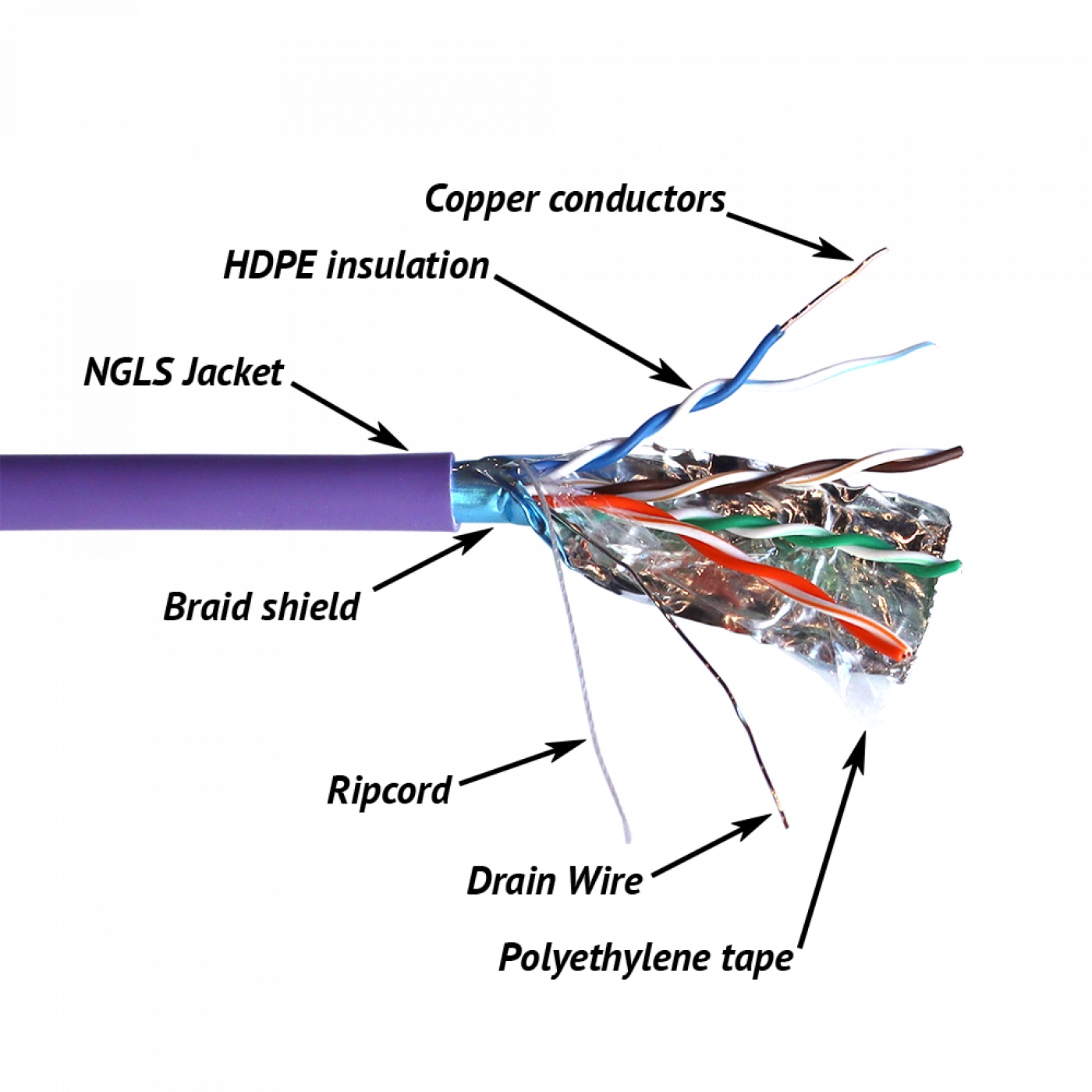

The cable consists of 4 pairs of single copper conductors.
The diameter of the conductor is 24AWG.
Each conductor protected with HDPE (high density polyethylene) insulation.
Two conductors stranded with a specially selected step make up one twisted pair.
4 twisted pairs wrapped in polyethylene film and together with a solid copper grounding conductor are enclosed in a common foil screen and NGLS jacket.
| Specification | Value |
| Jacket Color | Purple |
| Jacket Material | ng(A)-LS |
| Insulation Material | HDPE (high density polyethylene) |
| Conductor Type | Solid |
| Conductor Gauge | 24 AWG |
| Cable Diameter | 6.5 ±0.3 mm |
| Nominal velocity propagation (NVP) | 69 % at 100 MHz |

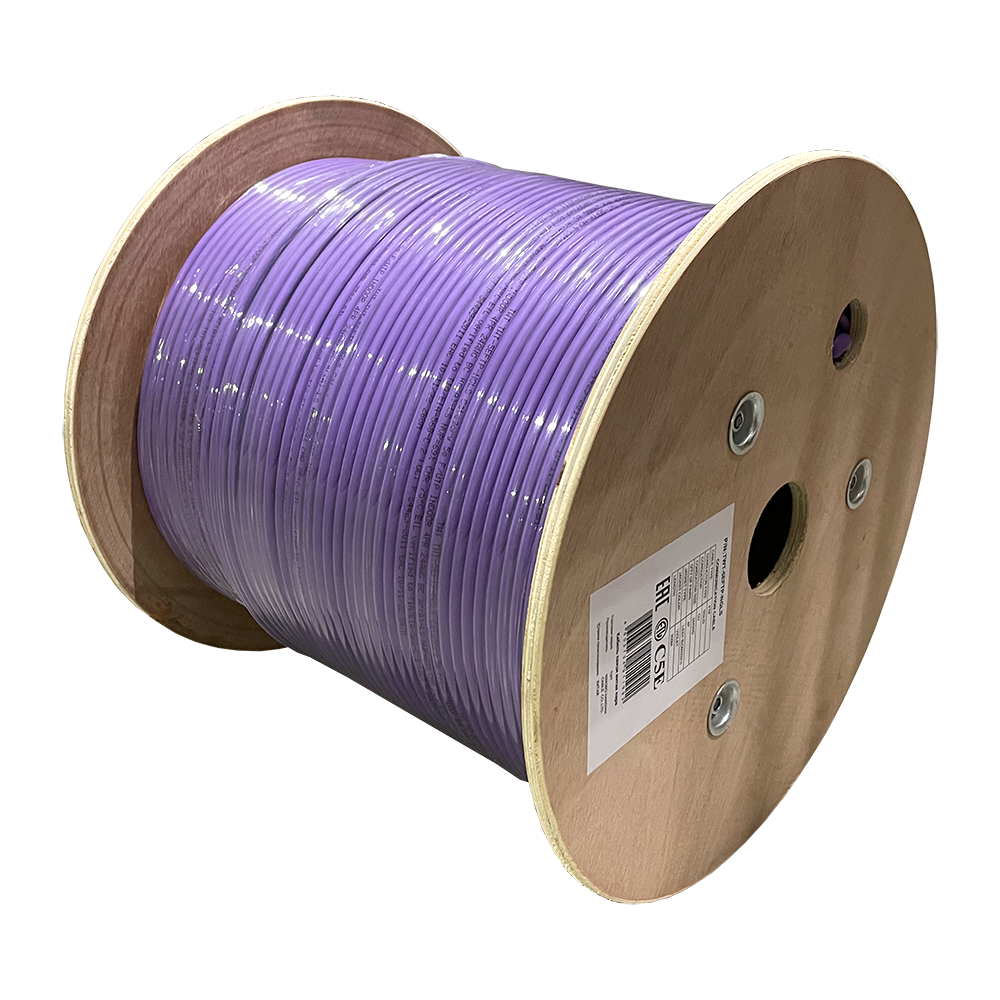

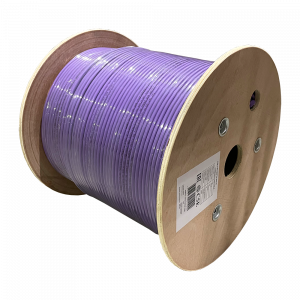

| Cable Length per Box | 305 m |
| Operating Temperature | -20 ºC to +75 ºC |
| Regulatory Certifications | ETL VERIFIED |
| Regulatory Compliance | TIA/EIA 568-D.2 cat. 5E, ISO/IEC 11801-1:2017, EN 50173 |
