TWT FTP cable, 4 pairs, category 5е, LSZH
TWT FTP cable, 4 pairs, category 5е, LSZH
TWT-5EFTP-LSZH
Shielded four pairs category 5e cable is designed for digital and analog signals transmission on frequencies below 100 MHz.

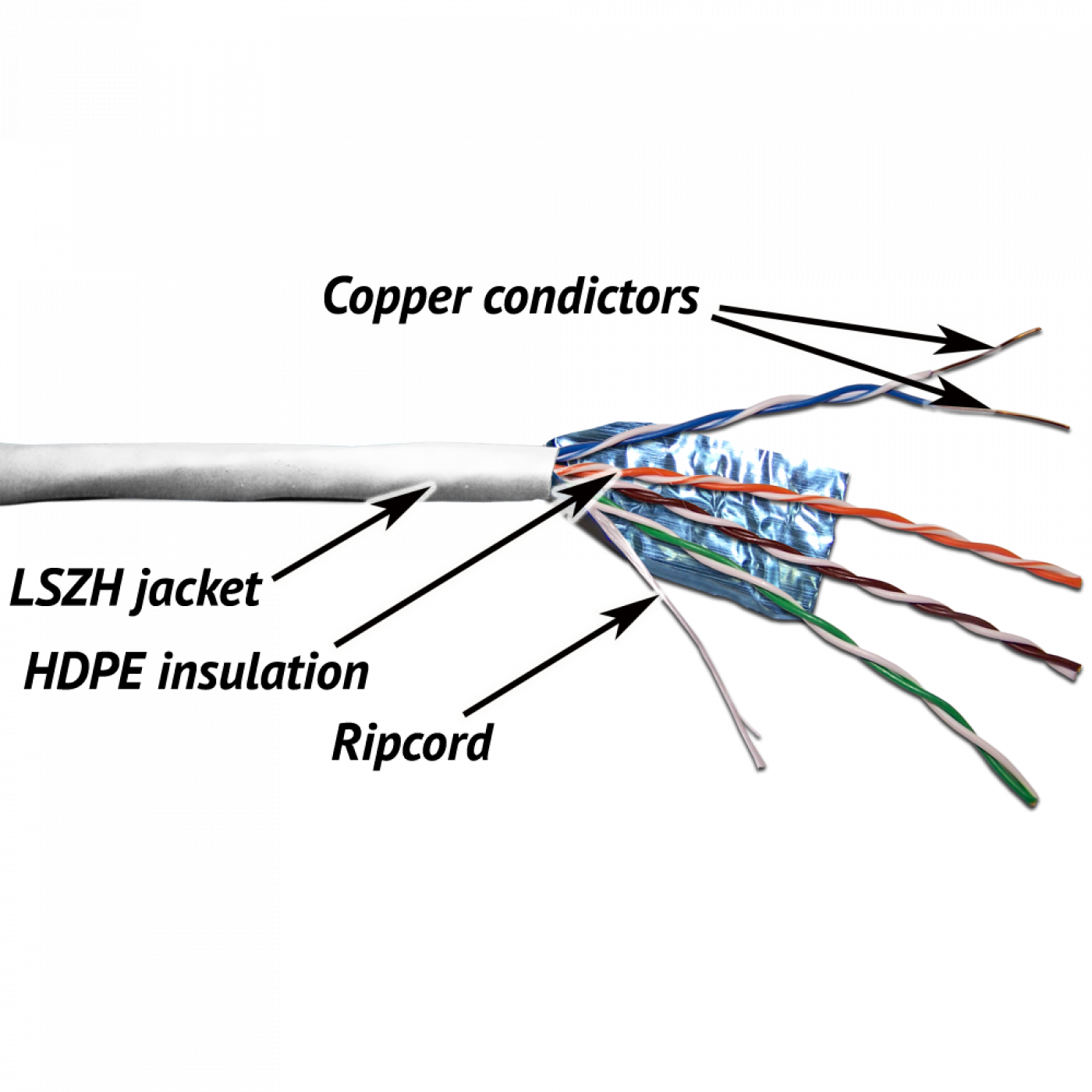

The cable comprises four twisted pairs of solid copper conductors with overall foil shield under a single jacket.
| Specification | Value |
| Jacket Color | White |
| Jacket Material | LSZH (low some, zero halogen) |
| Insulation Material | HDPE (high density polyethylene) |
| Conductor Gauge, single | 24 AWG |
| Conductor Type | Solid |
| Cable Diameter | 5.9 mm |
| Shield Material | Aluminum polyester foil over 4 pairs |
| Operating Temperature | -20 ºC to 75 ºC |
| Cable Length per Box | 305 m |
| Nominal velocity propagation (NVP) | 66% |
| Regulatory Certifications | ETL VERIFIED |
| Regulatory Compliance |
TIA/EIA 568-D.2 cat. 5E, ISO/IEC 11801-1:2017; EN 50173 |
