TWT UTP cable, 10 pairs, category 3, PVC, 305 meters on a reel
TWT UTP cable, 10 pairs, category 3, PVC, 305 meters on a reel
TWT-3UTP10

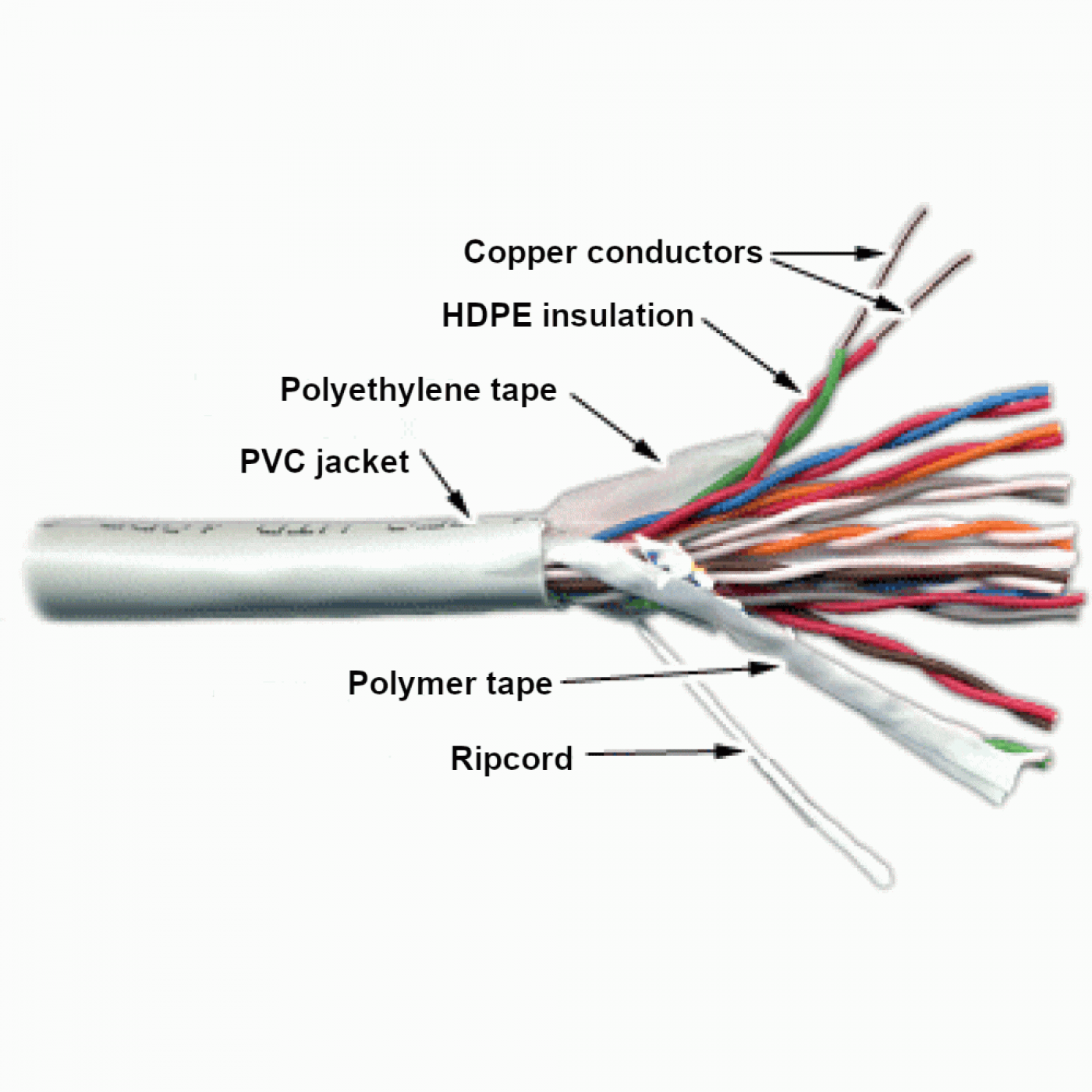

Cable comprises 10 pairs of solid copper conductors.
Each conductor is covered with HDPE (high density polyethylene) insulation.
Two conductors are twisted with specially selected step in a single twisted pair. All twisted pairs are grouped in a single bundle with polyethylene tape and enclosed in a PVC jacket.
There is a ripcord under the cable jacket for termination process convenience.
The cable is delivered on reels by 305 meters length. Other construction lengths are available by order.
| Specification | Value |
| Jacket Color | Grey |
| Jacket Material | PVC |
| Insulation Material | HDPE (high density polyethylene) |
| Conductor Type | Solid |
| Conductor Gauge | 24 AWG |
| Nominal Velocity Propagation (NVP) | 66% |
| Cable Diameter | 7.2 mm |
| Cable Length per Reel | 305 m |
| Operating Temperature | -20 ºC to 75 ºC |
| Regulatory Certifications | UL VERIFIED |
| Regulatory Compliance | TIA/EIA 568.2-E cat. 3; ISO/IEC 11801 |
| Color Coding | |||
| Pair | Color | Pair | Color |
| 1 | white - blue | 6 | red - blue |
| 2 | white - orange | 7 | red - orange |
| 3 | white - green | 8 | red - green |
| 4 | white - brown | 9 | red - brown |
| 5 | white - grey | 10 | red - grey |
