Power cord, C19-Schuko, straight, 3х1.5, 220V, 16A
Power cord, C19-Schuko, straight, 3х1.5, 220V, 16A
LAN-PP19/SH-x.x-yy

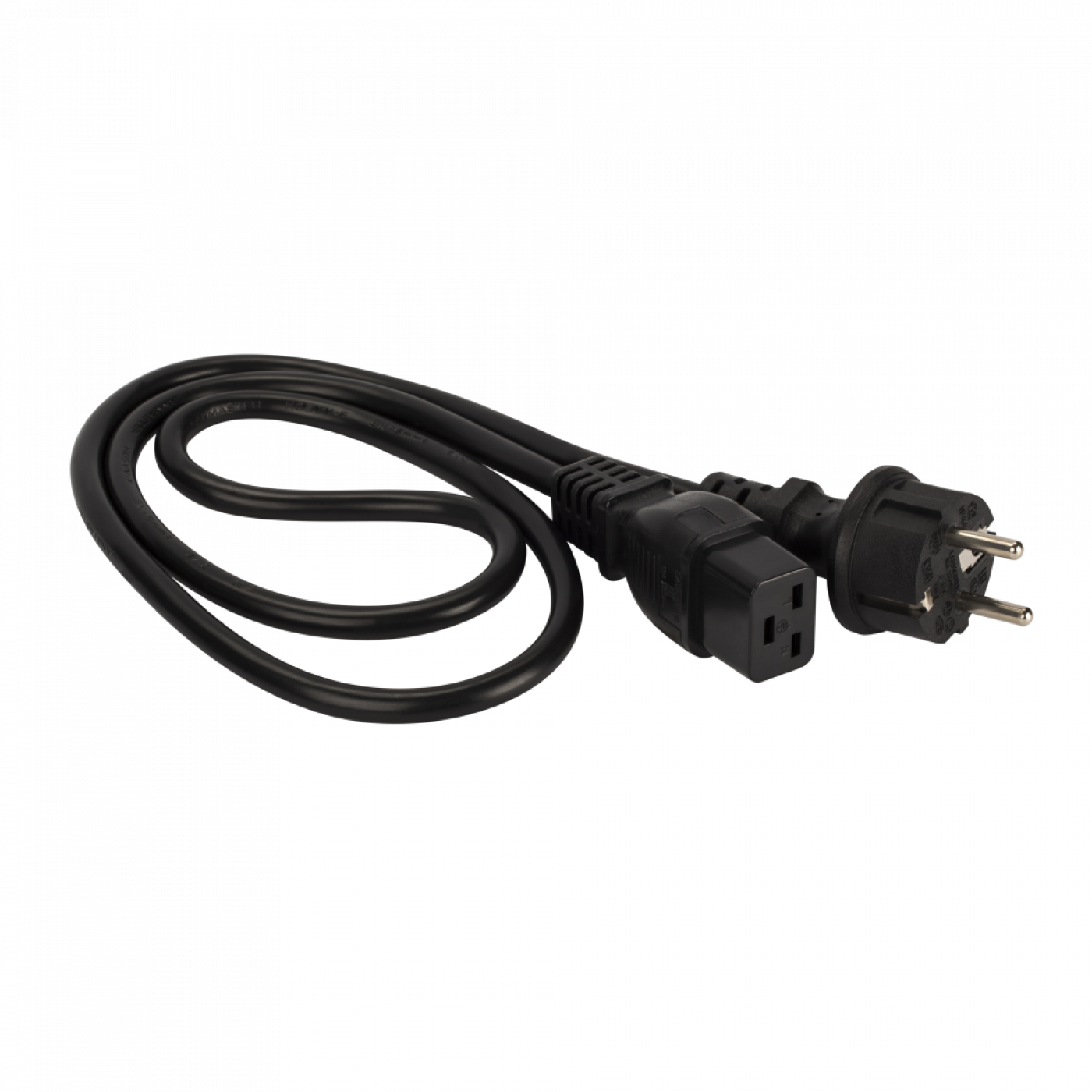

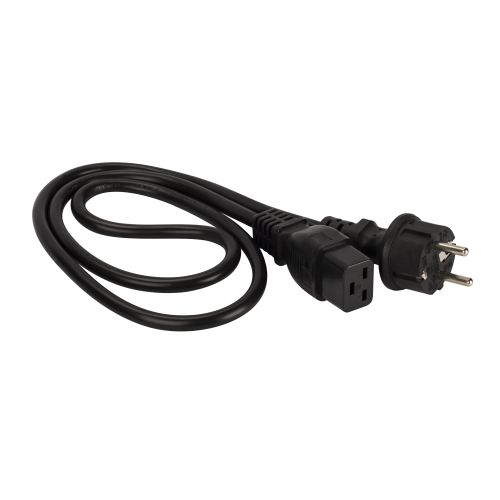

The power cord is intended to connect electrical equipment with IEC 60320 C20 inlet to AC mains up to 250V.
The cord is made of stranded PVC insulated 3 x 1.5 wire.

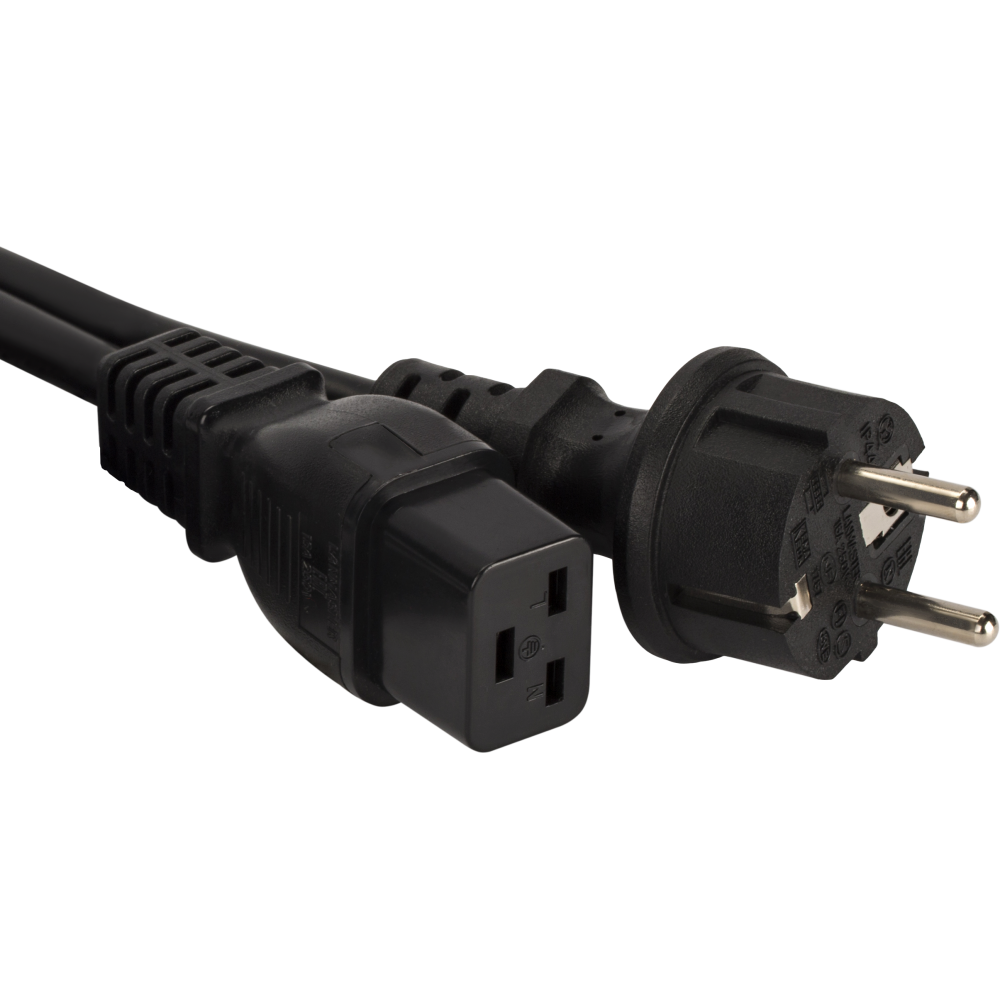

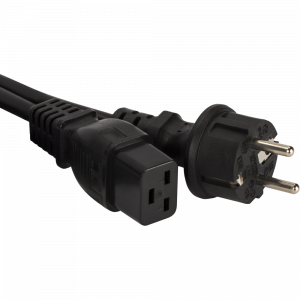

Plug А (plug Schuko) is DIN49441 connector molded from flame retardant PVC.
The connector on the opposite side (side B) is IEC 60320 C19 molded from flame retardant PVC.
| Cable type | 3х1.5 PVC |
| Jacket material | PVC (polyvinyl chloride) |
| Jacket color | Black |
| Cord length | 0.5 m, 1 m, 2 m, 3 m, 5 m |
| Wire cross-section | 1,5 mm2 |
| Wire type | Stranded |
| Maximum current | 16 А |
| Maximum voltage | ~250 V |
| Connector А | DIN49441 |
| Connector В | IEC 60320 С19 |
