Information systems, fire systems, and security systems are becoming more interconnected. The typical installation scheme involves electrical automatic breakers on a DIN-rail in the electrical cabinet and network equipment in a 19" frame. However, there is often a need to install copper data ports or optical adapters on the DIN-rail and automatic breakers in the telecom cabinet.

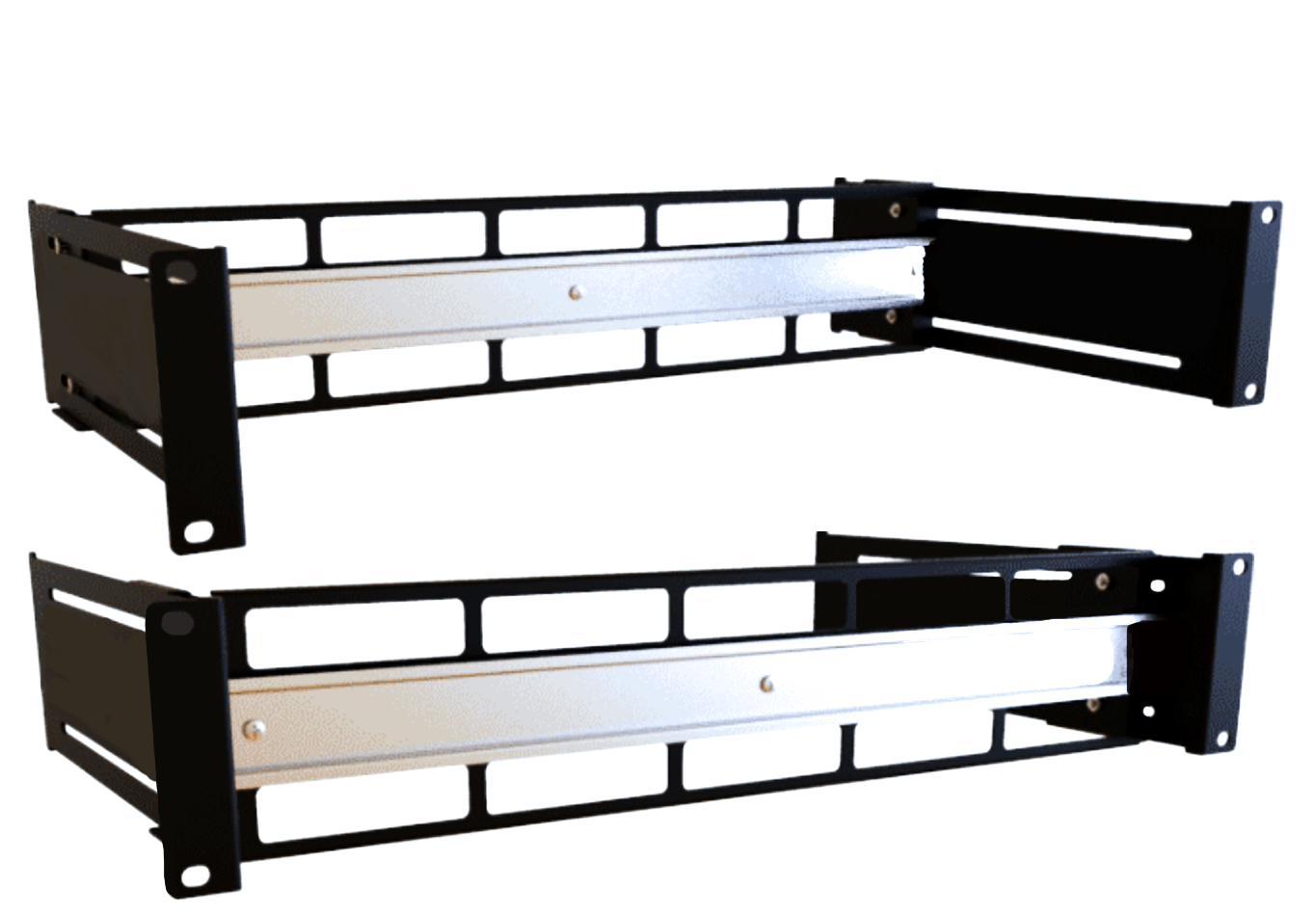

Depth-Adjustable Frame
The frame is designed for quick installation of various 35 mm DIN-rail mounting equipment in a standard 19" cabinet. It enables the installation of electrical equipment in telecommunication cabinets and racks.
The structure's height is 2U. The DIN-rail can be installed at an adjustable depth ranging from 65 mm to 225 mm. Cable entry holes are located at the rear of the panel.
We have had a panel suitable for similar applications in our range prior to introducing the 19" depth-adjustable DIN-rail frame. Although each design has its own features and advantages, the old model comes with a removable front cover to protect the equipment installed inside, while the new frame model is an open frame that allows for the installation of equipment of various sizes in terms of both height and depth. For more information about our products, please refer to the following pages:
| Код товара | Наименование |
|---|---|
| TWT-CB-DINRL/3U | 19" Support frame for DIN rail-mounted devices, 3U |
| TWT-FR-DINRL/2U | 19" depth-adjustable frame with DIN-rail for automatic breakers mounting, 2U |
