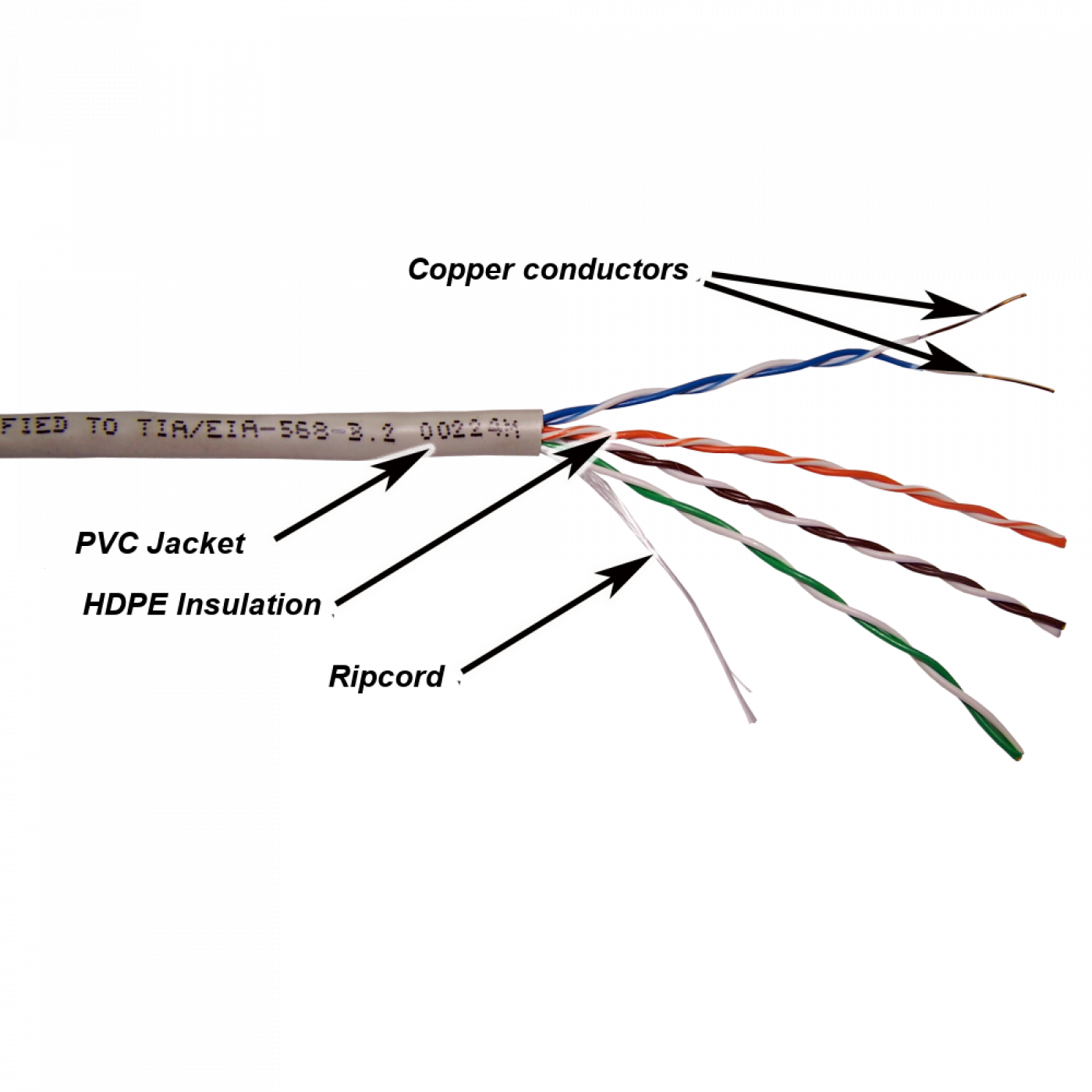

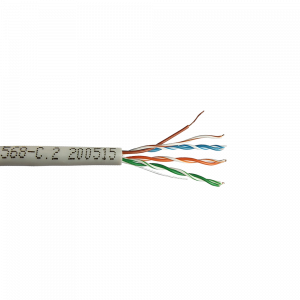

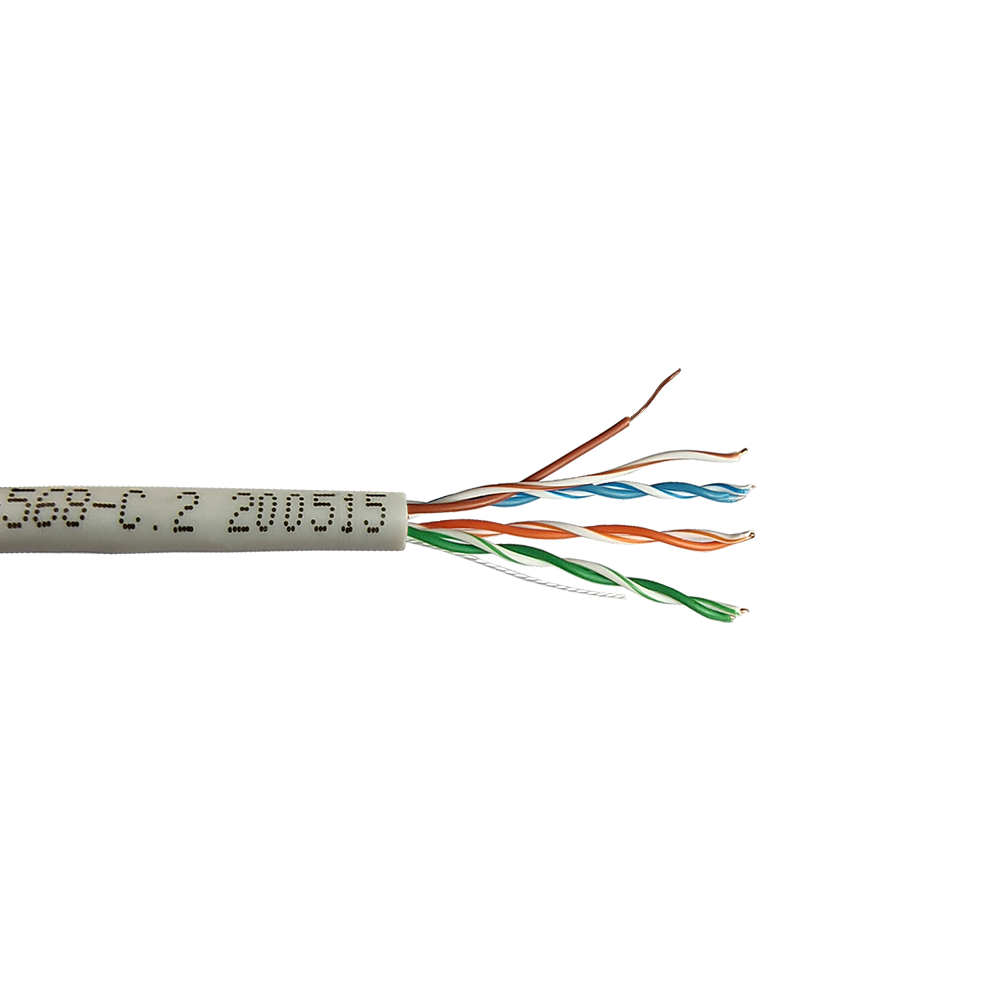

NewMax UTP cable, 2 or 4 pairs, 25 AWG, category 5e, PVC
NewMax UTP cable, 2 or 4 pairs, 25 AWG, category 5e, PVC
NM-UTP5ExPR-CU
Unshielded category 5e cables are suitable for digital and analog transmission on frequencies below 100 MHz. The cables have low diameter conductors that makes them the budget solution for wideband access cabling. The cables characteristics have good margins due to high quality of materials and production process.
The cables is delivered in boxes by 305 meters.
| Specification | Value |
| Jacket Color | Grey |
| Jacket Material | PVC (polyvinyl chloride) |
| Insulation Material | HDPE (high density polyethylene) |
| Conductor Type | Solid |
| Conductor Gauge | 25 AWG |
| Nominal Velocity Propagation (NVP) | 69% |
| Cable Diameter | 4.8 mm (for 4 pairs cable) |
| Cable Length per Reel | 305 m |
| Operating Temperature | -20 ºC to 60 ºC |
