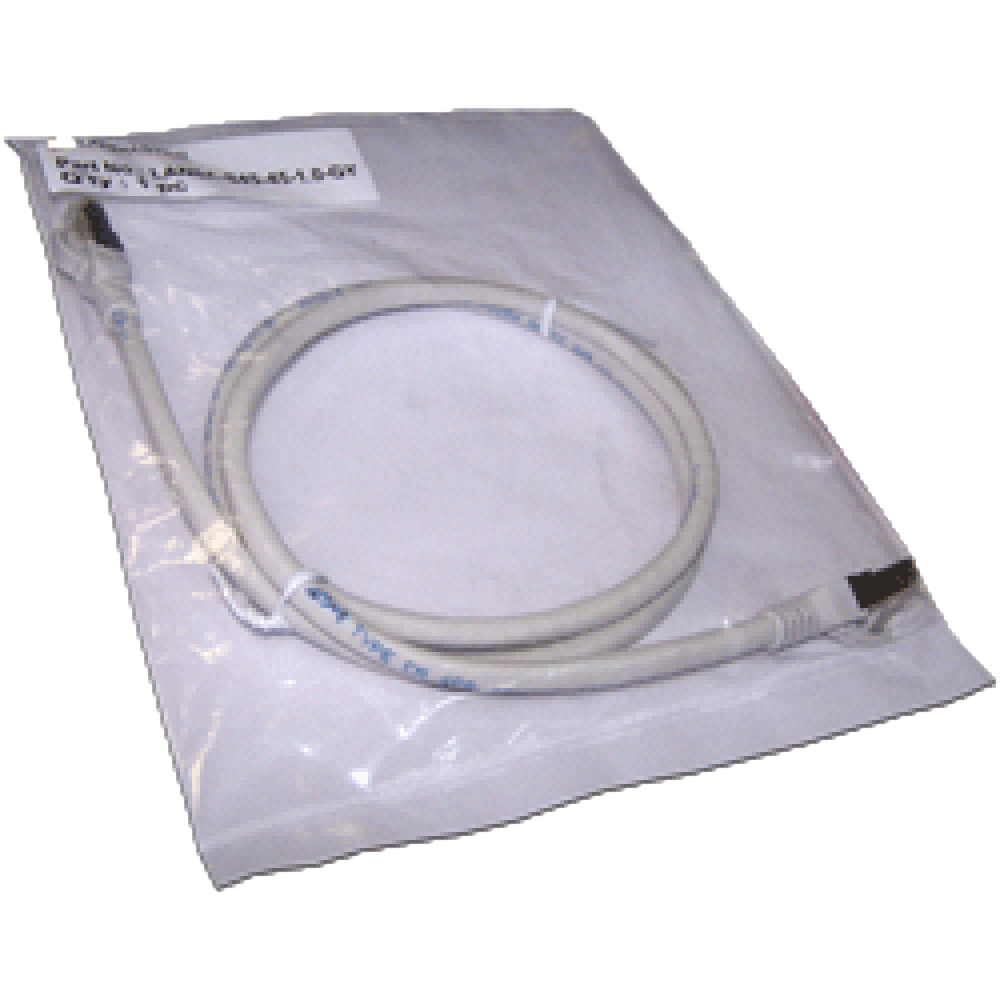

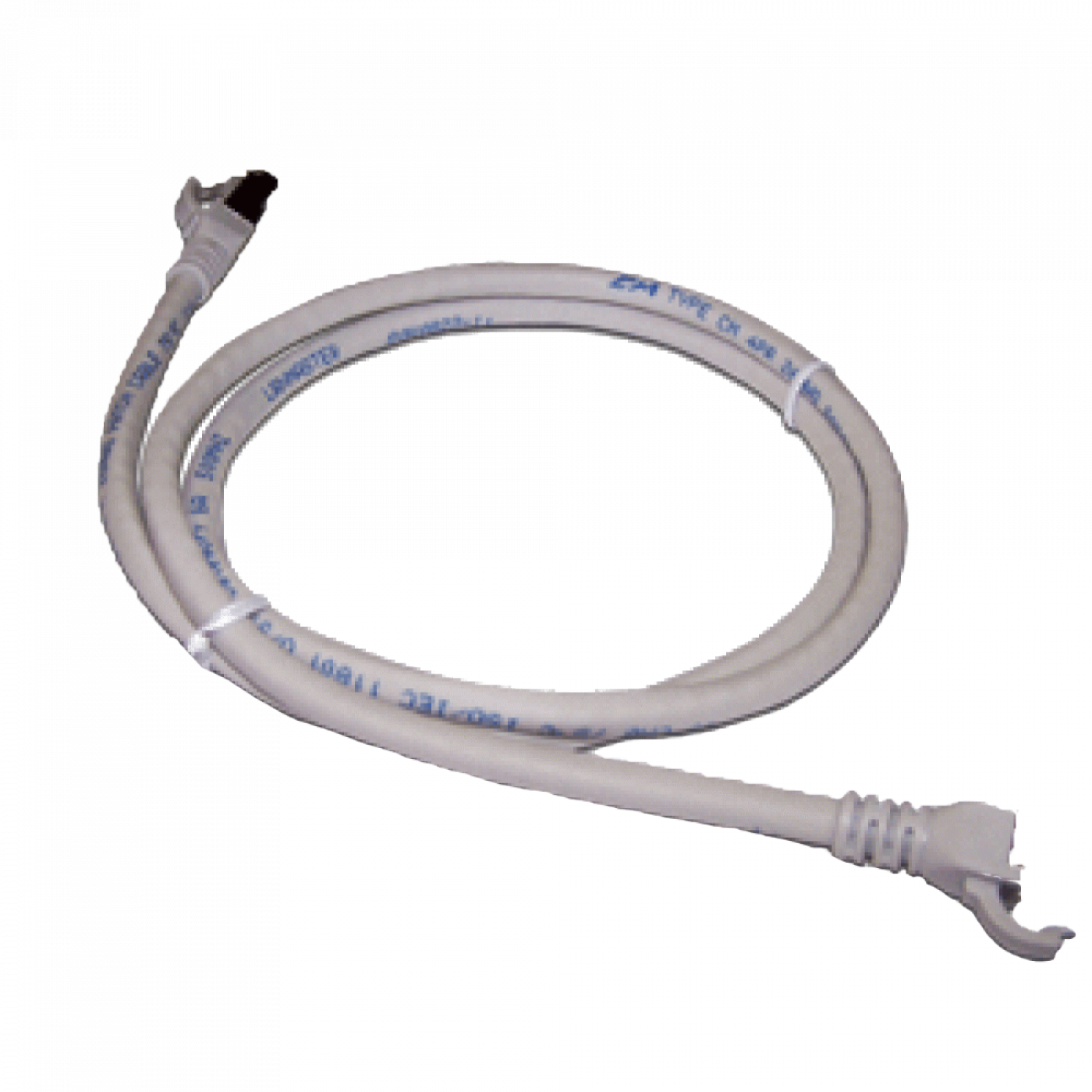

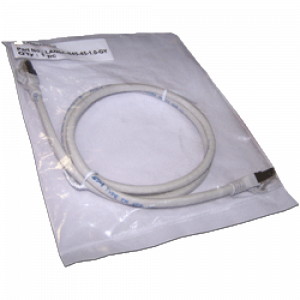

LANMASTER FTP cat. 6A patch-cord
Patch cords is category 6A and fully comply with
ISO/IEC 11801 standards.

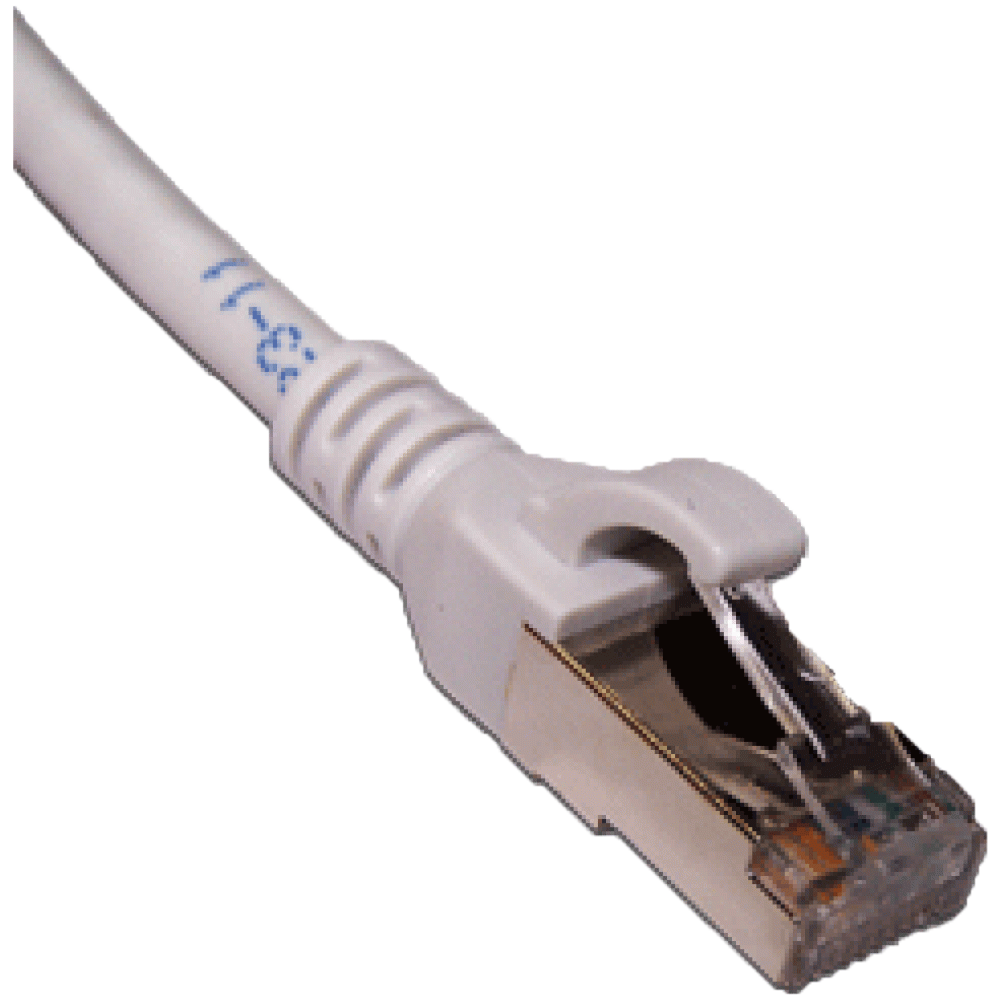

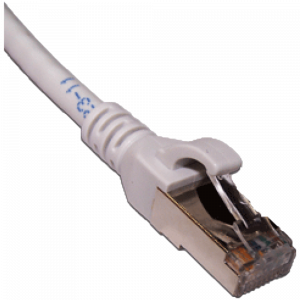

The junction between the RJ-45 plug and the cable is filled with a plastic to
ensure a strong connection between them, such a connection is called molded.
Special side ribs are provided at the molded part of the plug to protect the
locking latch of the RJ-45 connector from damage and breakage. This solution
does not interfere with pressing the latch.
The plug has flexible strain relief boot, which provides a given cable bending
radius during operation.
Color options:
|
White - WH |
|
|
Grey - GY |
|
|
Yellow - YL |
|
|
Orange - OR |
|
|
Green - GN |
|
|
Red - RD |
|
|
Blue - BL |
|
|
Brown - BR |
|
|
Black - BK |
Patch cords are available in various lengths:
- 0.5 m
- 1.0 m
- 1.5 m
- 2.0 m
- 3.0 m
- 5.0 m
- 7.0 m
|
Jacket material |
PVC (polyvinylchloride) |
|
Conductor diameter |
26 AWG |
|
Conductor type |
Stranded |
|
Nominal velocity of
propagation |
67% |
|
Compliant with |
TIA/EIA 568-C.2 cat. 6 |
Out of production, replaced by: LAN-PC45/S6A-XX-XX
